2316104 Series

Catalog

HEADERS & WIRE HOUSINGS 9P,2MM,REC,HSG,SR,CRIMP,LATCH,BOX

Part	Insulation Material	Contact Termination	Color	Pitch	Contact Type	Connector Type	Fastening Type	Number of Positions	Number of Rows	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)
TE Connectivity AMP Connectors 2316104-9	Liquid Crystal Polymer (LCP)	Crimp	Black	0.079 in	Female Socket	Receptacle	Latch Lock	9	1	Free Hanging (In-Line)	125 °C	-40 °C
TE Connectivity AMP Connectors 2316104-3	Liquid Crystal Polymer (LCP)	Crimp	Black	0.079 in	Female Socket	Receptacle	Latch Lock	3	1	Free Hanging (In-Line)	125 °C	-40 °C
TE Connectivity AMP Connectors 1-2316104-5	Liquid Crystal Polymer (LCP)	Crimp	Black	0.079 in	Female Socket	Receptacle	Latch Lock	15	1	Free Hanging (In-Line)	125 °C	-40 °C
TE Connectivity AMP Connectors 2316104-7	Liquid Crystal Polymer (LCP)	Crimp	Black	0.079 in	Female Socket	Receptacle	Latch Lock	7	1	Free Hanging (In-Line)	125 °C	-40 °C
TE Connectivity AMP Connectors 1-2316104-3	Liquid Crystal Polymer (LCP)	Crimp	Black	0.079 in	Female Socket	Receptacle	Latch Lock	13	1	Free Hanging (In-Line)	125 °C	-40 °C
TE Connectivity AMP Connectors 1-2316104-2	Liquid Crystal Polymer (LCP)	Crimp	Black	0.079 in	Female Socket	Receptacle	Latch Lock	12	1	Free Hanging (In-Line)
TE Connectivity AMP Connectors 2316104-4	Liquid Crystal Polymer (LCP)	Crimp	Black	0.079 in	Female Socket	Receptacle	Latch Lock	4	1	Free Hanging (In-Line)

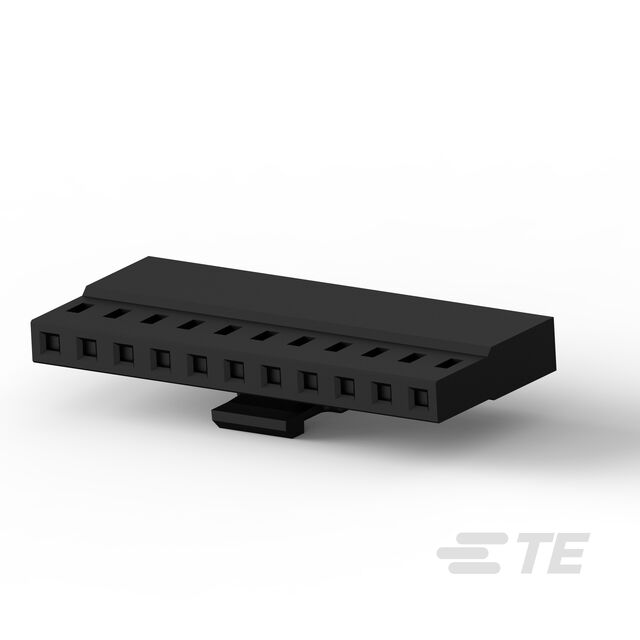

TE Connectivity AMP Connectors 1-2316104-1	Liquid Crystal Polymer (LCP)	Crimp	Black	0.079 in	Female Socket	Receptacle	Latch Lock	11	1	Free Hanging (In-Line)	125 °C	-40 °C
