843256I Series

FemtoClock Crystal-to-3.3V LVPECL Frequency Synthesizer with Integrated Fanout Buffer

Manufacturer: Renesas Electronics Corporation

Catalog

FemtoClock Crystal-to-3.3V LVPECL Frequency Synthesizer with Integrated Fanout Buffer

Part	Input	Type	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	PLL	Multiplier	Divider	Number of Circuits	Output Ratio	Input Ratio	Operating Temperature (Min)	Operating Temperature (Max)	Package Name	Package Width	Package Length	Output	Differential Output	Differential Input	Mounting Type	Frequency - Max
Renesas Electronics Corporation 843256BGILFT	Crystal	Frequency Synthesizer	3.135 V	3.465 V	Yes with Bypass	No	Yes	1	6	1	-40 °C	85 °C	24-TSSOP	4.4 mm	0.173 in	LVPECL	Yes	No	Surface Mount	625 MHz
Renesas Electronics Corporation 843256BGILF	Crystal	Frequency Synthesizer	3.135 V	3.465 V	Yes with Bypass	No	Yes	1	6	1	-40 °C	85 °C	24-TSSOP	4.4 mm	0.173 in	LVPECL	Yes	No	Surface Mount	625 MHz

Catalog

FemtoClock Crystal-to-3.3V LVPECL Frequency Synthesizer with Integrated Fanout Buffer

Description

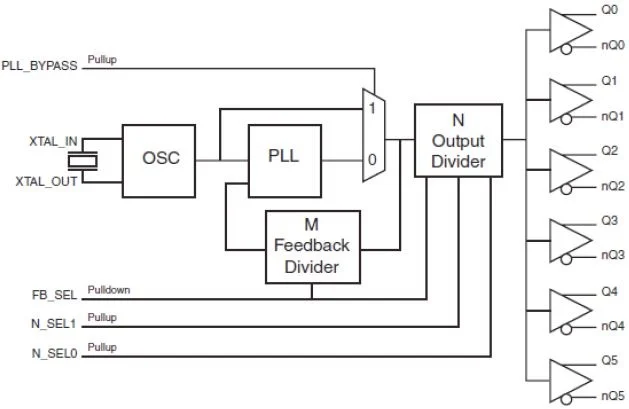

The 843256I is a Crystal-to-3.3V LVPECL Clock Synthesizer/Fanout Buffer designed for Fibre Channel and Gigabit Ethernet applications. The output frequency can be set using the frequency select pins and a 25MHz crystal for Ethernet frequencies, or a 19.44MHz crystal for SONET. The low phase noise characteristics of the 843256I make it an ideal clock for these demanding applications.
