G9SX-AD Series

Catalog

CONTROL SAFETY GEN PURPOSE 24V

Part	Approval Agency	Weight	Features	Delay Time (Max)	Delay Time (Min)	Auxiliary Output Type	Auxiliary Output Count	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Supply	Controller Type	Number of Inputs	Input Types	Safety Category	Safety Output Type	Safety Outputs (Count)	Mounting Type	Termination Style
Omron Automation and Safety G9SX-ADA222-T15-RC DC24	CE CSA cULus SUD TUV UL	0.441 lb	Delay Time 0 ~ 15sec Logical AND I/O	15 sec	0 sec	Solid State	2	-10 °C	55 °C	24 VDC	General Purpose	2	Digital	Category 4 PLe SIL3	Solid State	6 count	DIN Rail	Spring Terminal
Omron Automation and Safety G9SX-AD322-T15-RT DC24	CE CSA cULus SUD TUV UL	0.441 lb	Delay Time 0 ~ 15sec Logical AND I/O	15 sec	0 sec	Solid State	2	-10 °C	55 °C	24 VDC	General Purpose	2	Digital	Category 4 PLe SIL3	Solid State	6 count	DIN Rail	Screw Terminal
Omron Automation and Safety G9SX-AD322-T150-RC DC24	CE CSA cULus SUD TUV UL	0.441 lb	Delay Time 0 ~ 150sec Logical AND I/O			Solid State	2	-10 °C	55 °C	24 VDC	General Purpose	2	Digital	Category 4 PLe SIL3	Solid State	6 count	DIN Rail	Spring Terminal

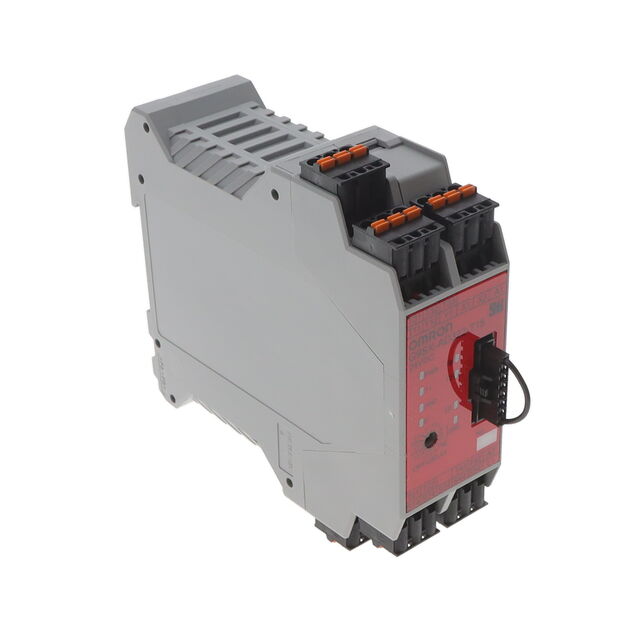

Omron Automation and Safety G9SX-AD322-T15-RC DC24	CE CSA cULus SUD TUV UL	0.441 lb	Delay Time 0 ~ 15sec Logical AND I/O	15 sec	0 sec	Solid State	2	-10 °C	55 °C	24 VDC	General Purpose	2	Digital	Category 4 PLe SIL3	Solid State	6 count	DIN Rail	Spring Terminal
