IRE-Q12 Series

Catalog

ISOLATED THROUGH HOLE DC/DC CONVERTER, RAILWAY, 4:1, 120 W, 1 OUTPUT, 12 V, 10 A

Part	Mounting Type	Number of Outputs	Approval Agency	Package Name	Features	Type	Voltage - Output 1	Efficiency	Control Features	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Isolation	Current - Output (Max)	Applications	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Voltage - Input (Max)	Package / Case	Power (Watts)	Voltage - Input (Min)
Murata Electronics IRE-12/10-Q12N-C	Through Hole	1	cURus	Eighth Brick	Adjustable Output Remote On/Off Remote Sense	Isolated Module	12 V	92 %	Active Low Enable	115 °C	-40 °C	2828 Vrms	10 A	ITE (Commercial)	2.41 in	0.5 in	1.01 in	36 V	Eighth Brick	120 W	9 V
Murata Electronics IRE-5/24-Q12P-C	Through Hole	1	cURus	Eighth Brick	Adjustable Output Remote On/Off Remote Sense	Isolated Module	5 V	92 %	Active High Enable	115 °C	-40 °C	2828 Vrms	24 A	ITE (Commercial)	2.41 in	0.5 in	1.01 in	36 V	Eighth Brick	120 W	9 V
Murata Electronics IRE-24/5-Q12NF-C	Through Hole	1	cURus	Eighth Brick	Adjustable Output Remote On/Off Remote Sense	Isolated Module	24 V	92 %	Active Low Enable	115 °C	-40 °C	2828 Vrms	5 A	ITE (Commercial)	2.41 in	0.5 in	1.45 in	36 V	Eighth Brick	120 W	9 V
Murata Electronics IRE-5/24-Q12NF-C	Through Hole	1	cURus	Eighth Brick	Adjustable Output Remote On/Off Remote Sense	Isolated Module	5 V	92 %	Active Low Enable	115 °C	-40 °C	2828 Vrms	24 A	ITE (Commercial)	2.41 in	0.5 in	1.45 in	36 V	Eighth Brick	120 W	9 V
Murata Electronics IRE-24/5-Q12P-C	Through Hole	1	cURus	Eighth Brick	Adjustable Output Remote On/Off Remote Sense	Isolated Module	24 V	92 %	Active High Enable	115 °C	-40 °C	2828 Vrms	5 A	ITE (Commercial)	2.41 in	0.5 in	1.01 in	36 V	Eighth Brick	120 W	9 V
Murata Electronics IRE-5/24-Q12N-C	Through Hole	1	cURus	Eighth Brick	Adjustable Output Remote On/Off Remote Sense	Isolated Module	5 V	92 %	Active Low Enable	115 °C	-40 °C	2828 Vrms	24 A	ITE (Commercial)	2.41 in	0.5 in	1.01 in	36 V	Eighth Brick	120 W	9 V

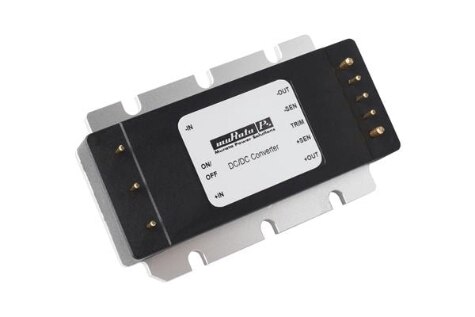

Murata Electronics IRE-12/10-Q12PF-C	Through Hole	1	cURus	Eighth Brick	Adjustable Output Remote On/Off Remote Sense	Isolated Module	12 V	92 %	Active High Enable	115 °C	-40 °C	2828 Vrms	10 A	ITE (Commercial)	2.41 in	0.5 in	1.45 in	36 V	Eighth Brick	120 W	9 V
Murata Electronics IRE-24/5-Q12PF-C	Through Hole	1	cURus	Eighth Brick	Adjustable Output Remote On/Off Remote Sense	Isolated Module	24 V	92 %	Active High Enable	115 °C	-40 °C	2828 Vrms	5 A	ITE (Commercial)	2.41 in	0.5 in	1.45 in	36 V	Eighth Brick	120 W	9 V
Murata Electronics IRE-12/10-Q12P-C	Through Hole	1	cURus	Eighth Brick	Adjustable Output Remote On/Off Remote Sense	Isolated Module	12 V	92 %	Active High Enable	115 °C	-40 °C	2828 Vrms	10 A	ITE (Commercial)	2.41 in	0.5 in	1.01 in	36 V	Eighth Brick	120 W	9 V
Murata Electronics IRE-5/24-Q12PF-C	Through Hole	1	cURus	Eighth Brick	Adjustable Output Remote On/Off Remote Sense	Isolated Module	5 V	92 %	Active High Enable	115 °C	-40 °C	2828 Vrms	24 A	ITE (Commercial)	2.41 in	0.5 in	1.45 in	36 V	Eighth Brick	120 W	9 V
