BBD-134 Series
Manufacturer: Samtec Inc.
Beta
⌘K

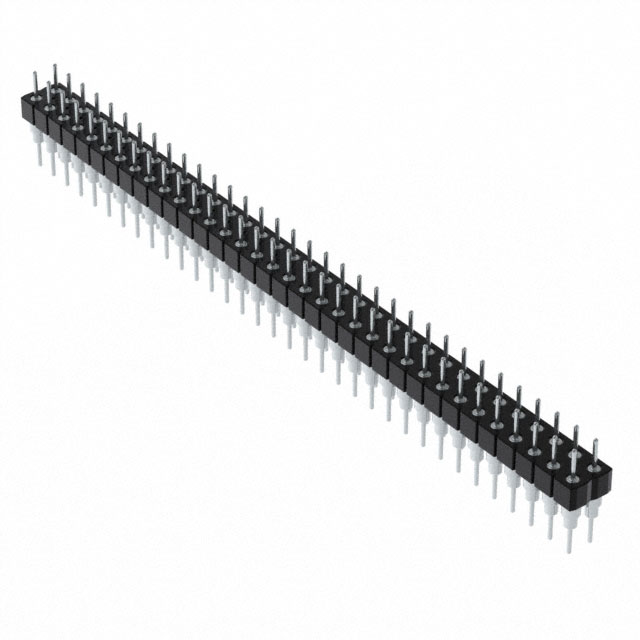

CONN HEADER VERT 68POS 2.54MM
| Part | Contact Length - Mating | Contact Finish - Mating | Contact Shape | Pitch - Mating | Mounting Type | Contact Length - Post | Connector Type | Insulation Height | Insulation Color | Overall Contact Length | Contact Type | Style | Contact Finish Thickness - Mating | Row Spacing - Mating | Number of Rows | Termination | Number of Positions Loaded | Insulation Material | Contact Finish - Post | Number of Positions | Operating Temperature (Max) | Operating Temperature (Min) | Fastening Type | Shrouding | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Samtec Inc. | 0.125 in | Gold | Circular | 0.1 in | Through Hole | 0.125 in | Header | 0.335 in | Black | 0.585 in | Male Pin | Board | 20 Ąin | 0.1 in | 2 | Solder | All | Glass Filled Polyester | Nickel | 68 | 125 °C | -55 °C | Push-Pull | Unshrouded | 50 µin |
 Samtec Inc. | 0.125 in | Tin | Circular | 0.1 in | Through Hole | 0.125 in | Header | 0.211 in | Black | 0.46 in | Male Pin | Board | 0.1 in | 2 | Solder | All | Glass Filled Polyester | Nickel | 68 | 125 °C | -55 °C | Push-Pull | Unshrouded | 50 µin | |
 Samtec Inc. | 0.125 in | Tin | Circular | 0.1 in | Through Hole | 0.125 in | Header | 0.585 in | Black | 0.835 in | Male Pin | Board | 0.1 in | 2 | Solder | All | Glass Filled Polyester | Nickel | 68 | 125 °C | -55 °C | Push-Pull | Unshrouded | 50 µin |
