643498 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN RCPT 9POS IDC 22AWG TIN

Part	Wire Type	Fastening Type	Wire Gauge	Mounting Type	Number of Positions	Contact Finish	Cable Termination	Connector Type	Pitch	Features	Contact Finish Thickness	Number of Rows	Color	Contact Type
TE Connectivity AMP Connectors 3-643498-9	Discrete Ribbon Cable	Locking Ramp	22 AWG	Free Hanging (In-Line) Right Angle	9	Tin	IDC	Receptacle	0.1 in	Closed End	80 µin	1	Black	Female Socket
TE Connectivity AMP Connectors 3-643498-4	Discrete Ribbon Cable	Locking Ramp	22 AWG	Free Hanging (In-Line) Right Angle	4	Tin	IDC	Receptacle	0.1 in	Closed End	80 µin	1	Black	Female Socket
TE Connectivity AMP Connectors 3-643498-3	Discrete Ribbon Cable	Locking Ramp	22 AWG	Free Hanging (In-Line) Right Angle	3	Tin	IDC	Receptacle	0.1 in	Closed End	80 µin	1	Black	Female Socket

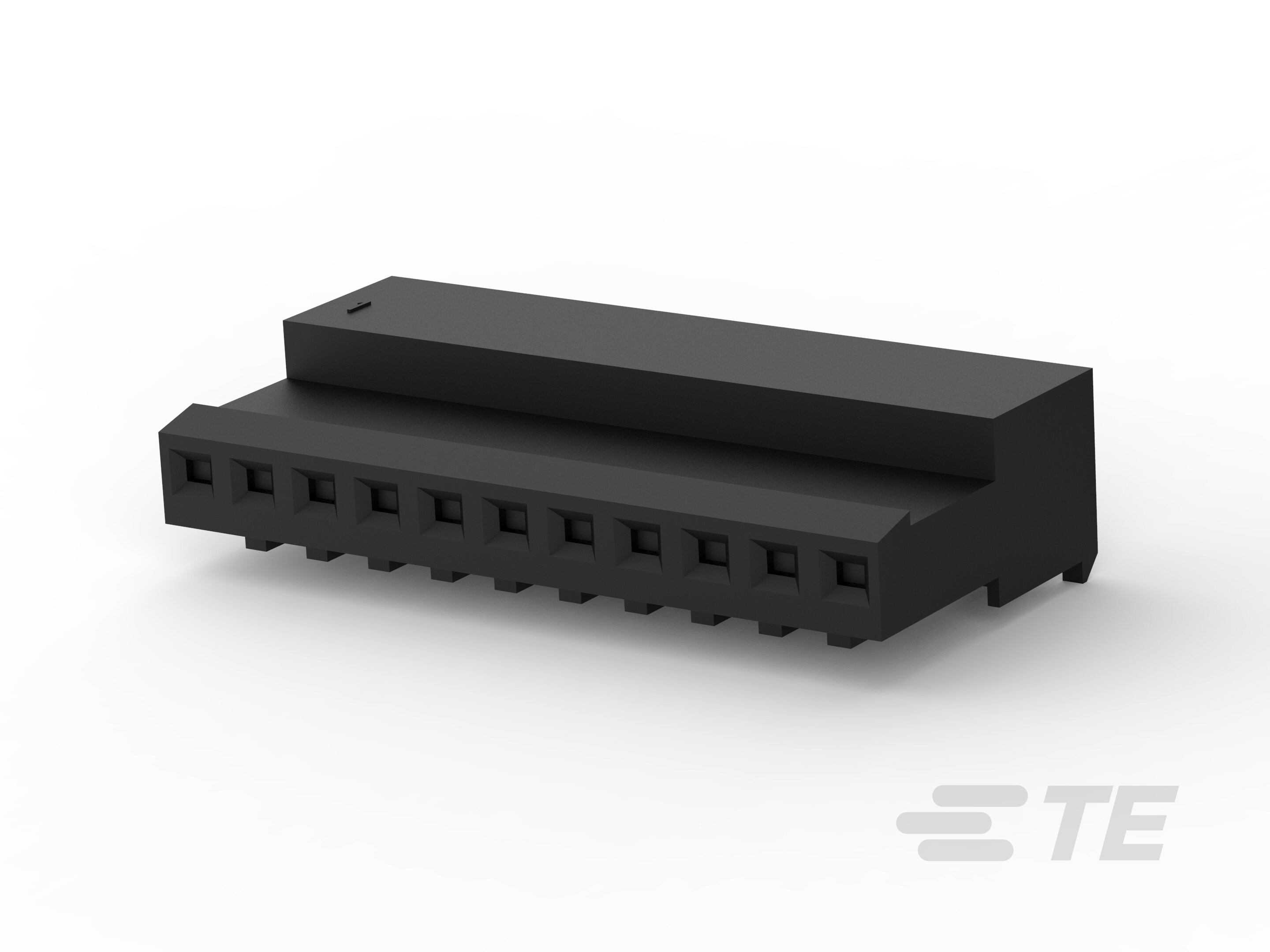

TE Connectivity AMP Connectors 4-643498-1	Discrete Ribbon Cable	Locking Ramp	22 AWG	Free Hanging (In-Line) Right Angle	11	Tin	IDC	Receptacle	0.1 in	Closed End	80 µin	1	Black	Female Socket

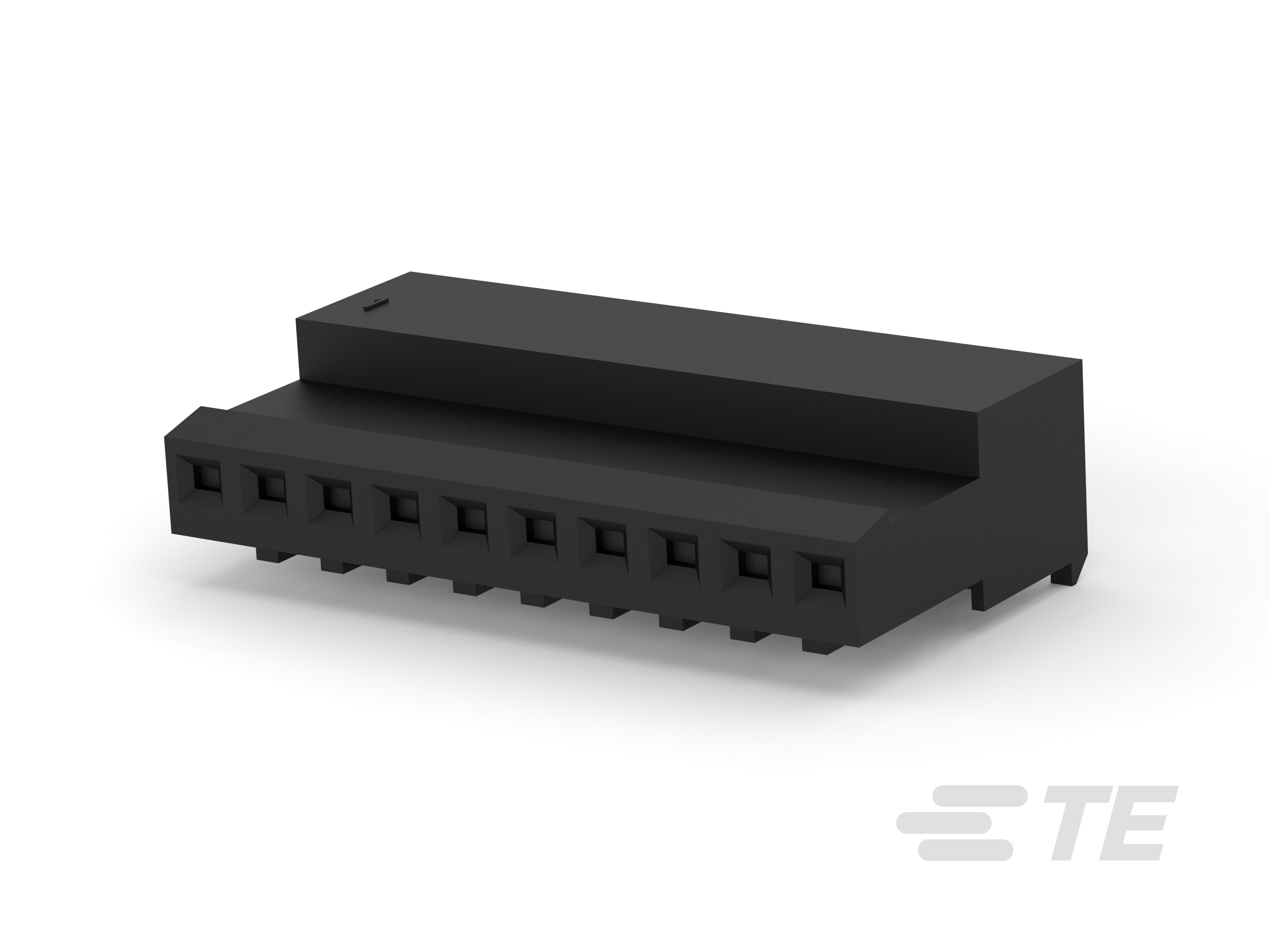

TE Connectivity AMP Connectors 4-643498-0	Discrete Ribbon Cable	Locking Ramp	22 AWG	Free Hanging (In-Line) Right Angle	10	Tin	IDC	Receptacle	0.1 in	Closed End	80 µin	1	Black	Female Socket

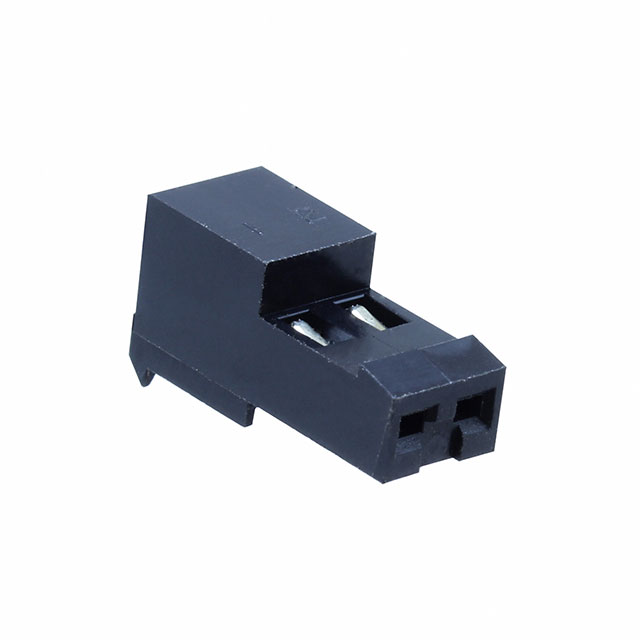

TE Connectivity AMP Connectors 643498-2	Discrete Ribbon Cable	Locking Ramp	22 AWG	Free Hanging (In-Line) Right Angle	2	Tin-Lead	IDC	Receptacle	0.1 in	Closed End	80 µin	1	Black	Female Socket
TE Connectivity AMP Connectors 3-643498-8	Discrete Ribbon Cable	Locking Ramp	22 AWG	Free Hanging (In-Line) Right Angle	8	Tin	IDC	Receptacle	0.1 in	Closed End	80 µin	1	Black	Female Socket

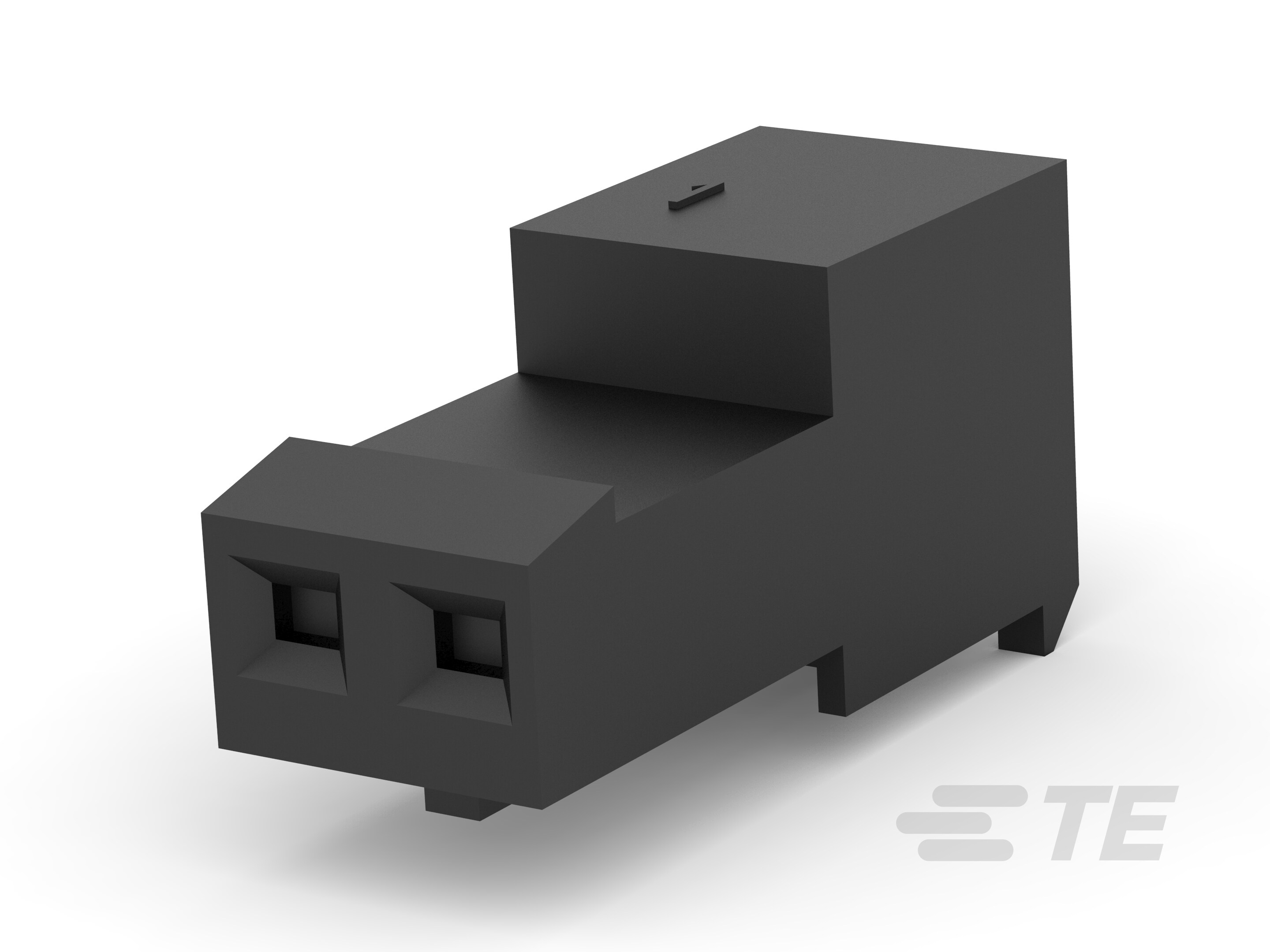

TE Connectivity AMP Connectors 3-643498-2	Discrete Ribbon Cable	Locking Ramp	22 AWG	Free Hanging (In-Line) Right Angle	2	Tin	IDC	Receptacle	0.1 in	Closed End	80 µin	1	Black	Female Socket
