2823447 Series

Catalog

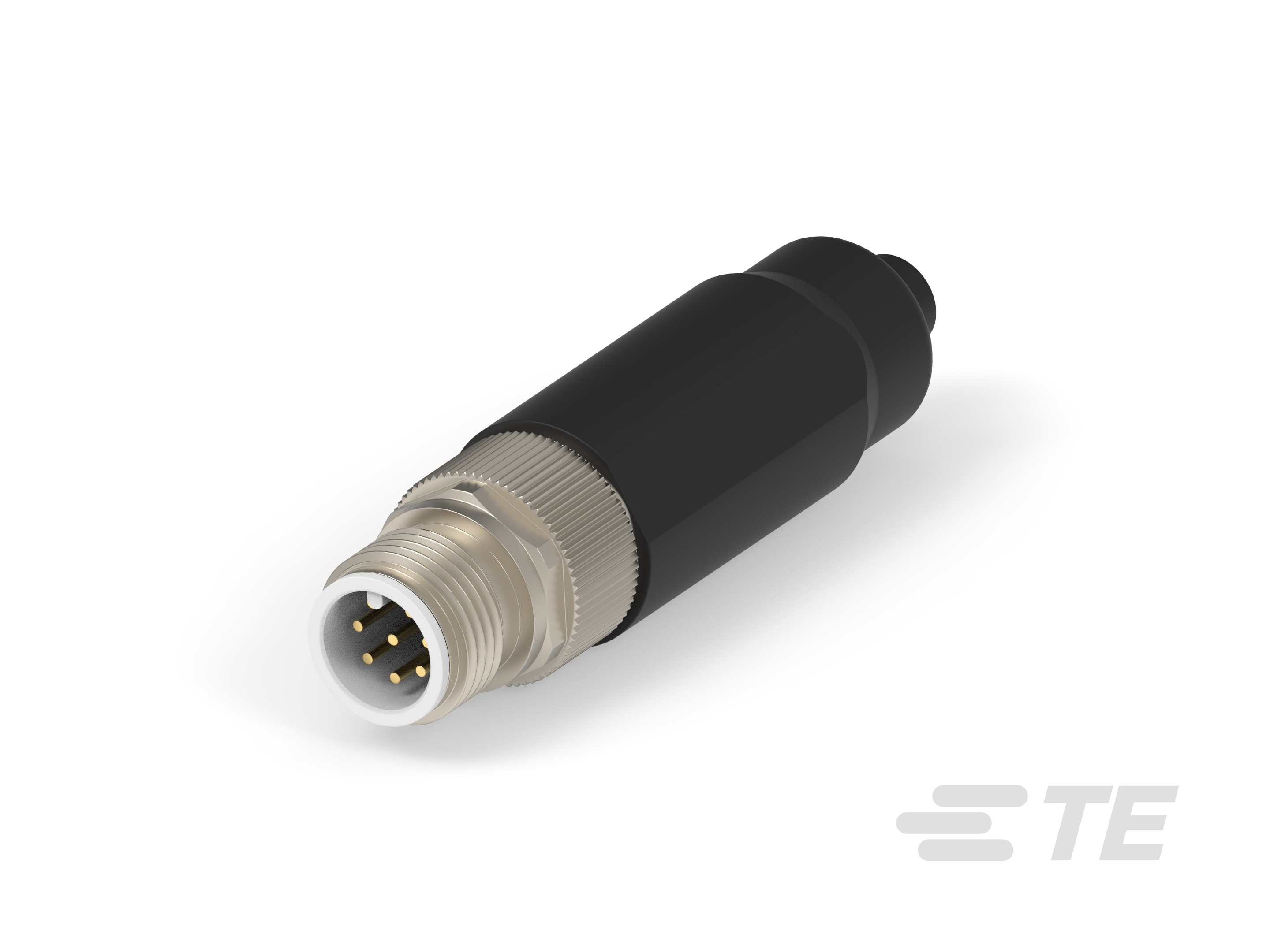

M12 A-M-8 CRI ST CAT 5 MEGALI 5.3MM,LEON

Part	Material Flammability Rating	Orientation	Number of Positions	Current Rating	Ingress Protection Description	Ingress Protection IP Rating	Mounting Type	Shell Size - Insert	Shell Finish	Shell Material	Shielding	Connector Type	Contact Finish - Mating	Voltage Rating	Termination	Color	Fastening Type	Operating Temperature (Min)	Operating Temperature (Max)	Primary Material	Features	Insert Material	Contact Material	Mounting Feature
TE Connectivity AMP Connectors 1-2823447-3	UL94 V-0	A	8	2 A	Dust Tight Waterproof	IP67	Free Hanging (In-Line)	M12-8	Nickel	Brass	Shielded	Male Pins Plug	Gold	30 V	Crimp	Silver	Threaded	-40 °C	85 °C	Metal	Backshell	Thermoplastic	Copper Alloy
TE Connectivity AMP Connectors 1-2823447-5	UL94 V-0	A	8	2 A	Dust Tight Waterproof	IP67	Free Hanging (In-Line) Panel Mount	M12-8	Nickel	Brass	Shielded	Male Pins Plug	Gold	30 V	Crimp	Silver	Threaded	-40 °C	85 °C	Metal	Backshell	Thermoplastic	Copper Alloy	Bulkhead Front Side Nut
TE Connectivity AMP Connectors 1-2823447-4	UL94 V-0	A	8	2 A	Dust Tight Waterproof	IP67	Free Hanging (In-Line)	M12-8	Nickel	Brass	Shielded	Male Pins Plug	Gold	30 V	Crimp	Silver	Threaded	-40 °C	85 °C	Metal	Backshell	Thermoplastic	Copper Alloy
