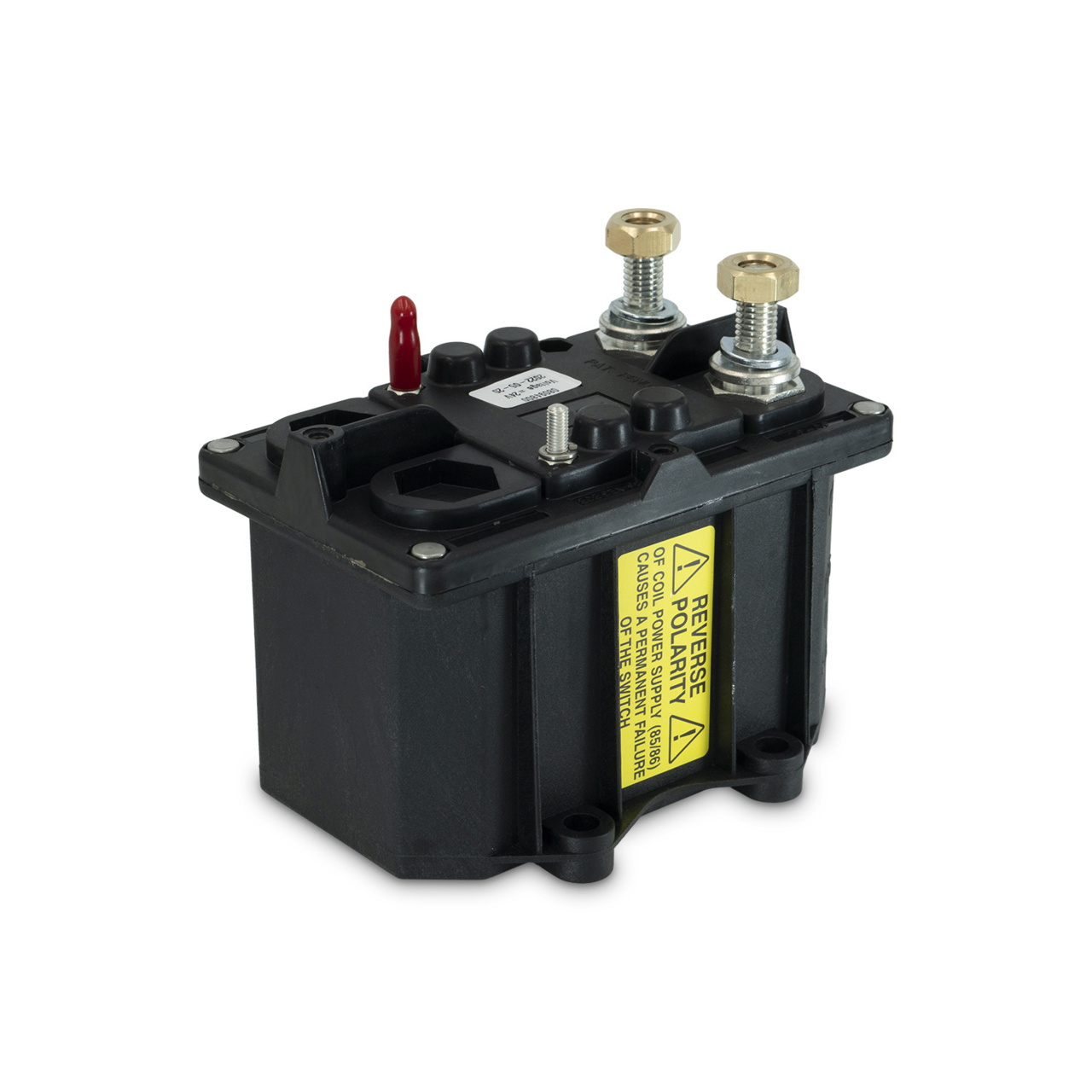

08094800 Series

Electrical Bms Tgc/S 24V

Catalog

Electrical Bms Tgc/S 24V

Part	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Type	Ingress Protection IP Rating	Ingress Protection Description	Termination Style	Circuit	Voltage Rating - DC	Illumination	Current Rating
LITTELFUSE 08094800	Chassis Mount	-40 °C	85 °C	Battery Disconnect	IP65	Dust Tight Water Resistant	Stud	SPST	24 V	Non-Illuminated	250 A

Catalog

Electrical Bms Tgc/S 24V

Description

Turned on or off with the ignition key or a remote control, the 08094400 Series 32V 250A Remote Control Electrical Battery Disconnect Switch with 24V Coil & Positive & Negative Disconnection with Separate Coil Feeding is ideal for heavy trucks, material handling equipment, construction vehicles, and more. Protected against dust, water splashes, and high-temperature, high-pressure spray downs to IP65, IPX4K, and IPX9K standards, the battery isolator switch handles the harsh conditions of commercial vehicle environments. This 32V 250A battery relay switch (08094800) features a 24V dc coil and positive and negative disconnection with separate coil feeding.
