1776113 Series

Catalog

TERM BLK 2P SIDE ENT 3.81MM PCB

Part	Color	Mounting Type	Voltage	Positions Per Level	Pitch	Current	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Wire Termination	Number of Levels	Mating Orientation	Operating Temperature (Min)	Operating Temperature (Max)	Clamp Material	Clamp Plating	Housing Material	Screw Plating	Screw Material	Plating	Contact Material
TE Connectivity AMP Connectors 1776113-2	Black	Through Hole	150 V	2	0.15 in	12 A	16 AWG	28 AWG	Rising Cage Clamp Screw	1	Horizontal with Board	-40 °C	110 °C	Copper Alloy	Nickel Plated	Nylon PA Polyamide	Nickel Plated	Copper Alloy	Tin Plated	Copper Alloy
TE Connectivity AMP Connectors 1776113-7	Black	Through Hole	150 V	7	0.15 in	12 A	16 AWG	28 AWG	Rising Cage Clamp Screw	1	Horizontal with Board	-40 °C	110 °C	Copper Alloy	Nickel Plated	Nylon PA Polyamide	Nickel Plated	Copper Alloy	Tin Plated	Copper Alloy
TE Connectivity AMP Connectors 1-1776113-1	Black	Through Hole	150 V	11	0.15 in	12 A	16 AWG	28 AWG	Rising Cage Clamp Screw	1	Horizontal with Board	-40 °C	110 °C	Copper Alloy	Nickel Plated	Nylon PA Polyamide	Nickel Plated	Copper Alloy	Tin Plated	Copper Alloy
TE Connectivity AMP Connectors 1776113-4	Black	Through Hole	150 V	4	0.15 in	12 A	16 AWG	28 AWG	Rising Cage Clamp Screw	1	Horizontal with Board	-40 °C	110 °C	Copper Alloy	Nickel Plated	Nylon PA Polyamide	Nickel Plated	Copper Alloy	Tin Plated	Copper Alloy

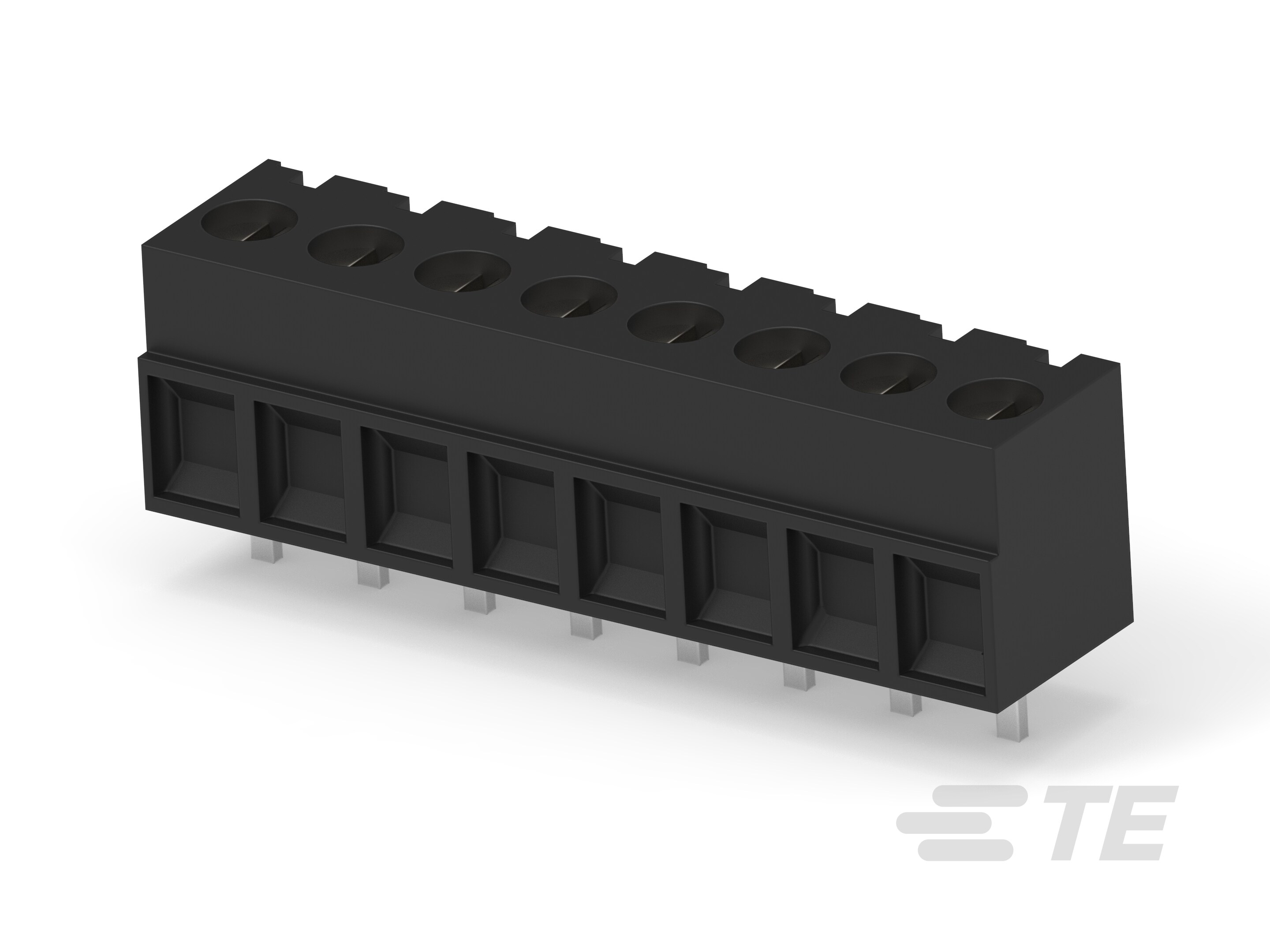

TE Connectivity AMP Connectors 1776113-8	Black	Through Hole	150 V	8	0.15 in	12 A	16 AWG	28 AWG	Rising Cage Clamp Screw	1	Horizontal with Board	-40 °C	110 °C	Copper Alloy	Nickel Plated	Nylon PA Polyamide	Nickel Plated	Copper Alloy	Tin Plated	Copper Alloy
