073216 Series

Manufacturer: Molex

Catalog

TNC JACK, REV POLARITY, BKHD, RG

Part	Connector Type	Mounting Type	Cable Group	Housing Color	Fastening Type	Shield Termination	Number of Ports	Contact Termination	Ingress Protection IP Rating	Ingress Protection Description	Connector Style	Mounting Feature	Frequency - Max	Center Contact Material	Impedance	Body Finish	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Mating Cycles	Voltage Rating	Body Material	Includes Total Count	Includes	Center Contact Plating	Insertion Loss

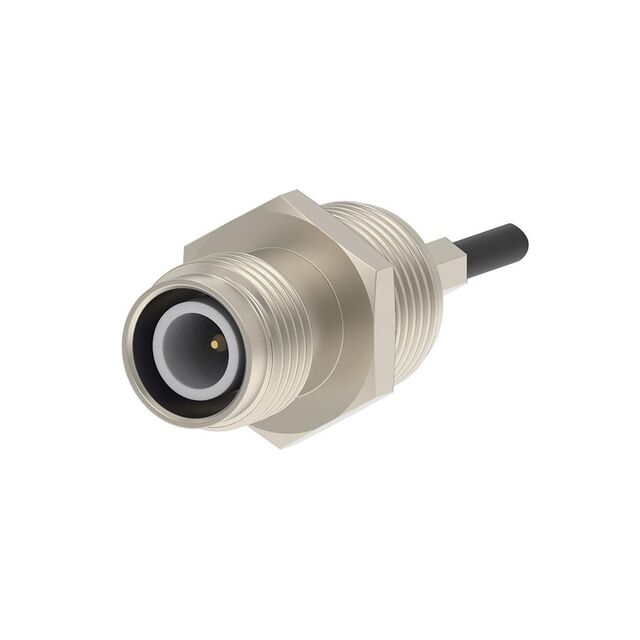

Molex 0732161030	Jack Male Pin	Panel Mount	188 316 RG-174	Silver	Threaded	Crimp	1	Crimp	IP68	Dust Tight Waterproof	RP-TNC	Bulkhead Front Side Nut	2 GHz	Beryllium Copper	50 Ohm
Molex 0732165270	Female Socket Jack	Right Angle Through Hole		Silver	Threaded	Solder	1	Solder			TNC		11 GHz	Phosphor Bronze	50 Ohm
Molex 0732162241	Female Socket Jack	Panel Mount Right Angle Through Hole		Silver	Threaded	Solder	1	Solder	IP68	Dust Tight Waterproof	TNC	Bulkhead Front Side Nut		Brass	50 Ohm	Nickel	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	500 cycles	500 V	Brass	3 pcs	Connector Lockwasher Nut	Gold
Molex 0732160120	Female Socket Recepture	Right Angle Through Hole		Silver	Threaded	Solder	1	Solder			TNC		11 GHz	Phosphor Bronze	50 Ohm	Nickel	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	500 cycles	500 V	Zinc			Gold
Molex 0732160050	Male Pin Plug	Free Hanging (In-Line) Right Angle	141 303 RG-58	Silver	Threaded	Crimp	1	Solder			TNC			Brass	50 Ohm	Nickel	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	500 cycles	500 V	Brass	3 pcs	Connector End Cap Ferrule	Gold
Molex 0732162870	Male Pin Plug	Free Hanging (In-Line)	RG-58	Silver	Threaded	Crimp	1	Solder			TNC			Brass	50 Ohm	Nickel	-65 °C	165 °C	Polypropylene (PP)	500 cycles	500 V	Brass	3 pcs	Connector Contact Ferrule	Gold
Molex 0732161330	Female Socket Jack	Panel Mount	RG-316	Silver	Threaded	Crimp	1	Solder			TNC	Bulkhead Front Side Nut	11 GHz	Beryllium Copper	50 Ohm
Molex 0732162240	Female Socket Jack	Panel Mount Right Angle Through Hole		Silver	Threaded	Solder	1		IP68	Dust Tight Waterproof	TNC	Bulkhead Front Side Nut	11 GHz 6000 MHz	Brass	50 Ohm	Nickel	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	500 cycles	500 V	Brass	3 pcs	Connector Lockwasher Nut	Gold	0.25 dB
Molex 0732165260	Female Socket Jack	Panel Mount Through Hole		Silver	Threaded	Solder	1	Solder	IP68	Dust Tight Waterproof	TNC	Flange	11 GHz	Beryllium Copper	50 Ohm
Molex 0732162230	Jack Male Pin	Panel Mount Right Angle Through Hole		Silver	Threaded	Solder	1		IP68	Dust Tight Waterproof	RP-TNC	Bulkhead Front Side Nut	11 GHz	Brass	50 Ohm	Nickel	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	500 cycles	500 V	Brass	3 pcs	Connector Lockwasher Nut	Gold	0.25 dB
