Sealed Sensor Connector SSC System Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
AUTOMOTIVE CONNECTOR HOUSING, SSC SERIES, PLUG, 2 POSITIONS
| Part | Color | Contact Termination | Connector Type | Fastening Type | Contact Type | Insulation Material | Features | Number of Rows | Pitch | Number of Positions | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) | Note | Pin or Socket | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Contact Finish | Type | Related Product Type | For Use With/Related Products | Related Product Maximum Gauge | Related Product Minimum Gauge | Tool Type | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Black | Crimp | Plug | Latch Holder | Female Socket | Glass Filled Polybutylene Terephthalate (PBT) | Sealed | 1 | 0.197 in | 2 | Free Hanging (In-Line) | -40 °C | 150 °C | Contacts Not Included | |||||||||||
 TE Connectivity AMP Connectors | Black | Crimp | Plug | Latch Holder | Female Socket | Glass Filled Nylon 4/6 Polyamide (PA46) | 2 | 4 | Free Hanging (In-Line) | -40 °C | 150 °C | Contacts Not Included | |||||||||||||
TE Connectivity AMP Connectors | Gray | Crimp | Housing for Female Insert | Latch Lock | Male Pin | Glass Filled Polybutylene Terephthalate (PBT) | 2 | 0.197 in | 4 | Surface Mount | -40 °C | 125 °C | |||||||||||||

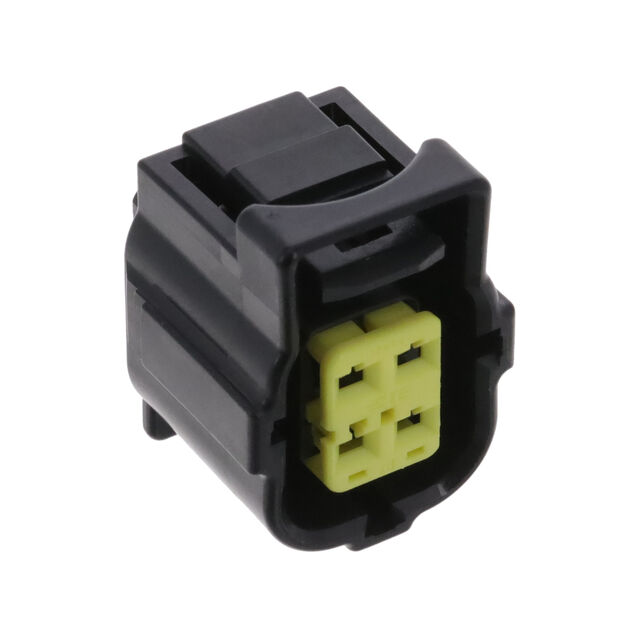

 TE Connectivity AMP Connectors | Black | Crimp | Plug | Latch Holder | Female Socket | Glass Filled Polybutylene Terephthalate (PBT) | Connector Position Assurance (CPA) | 2 | 0.197 in | 4 | Free Hanging (In-Line) | -40 °C | 125 °C | ||||||||||||

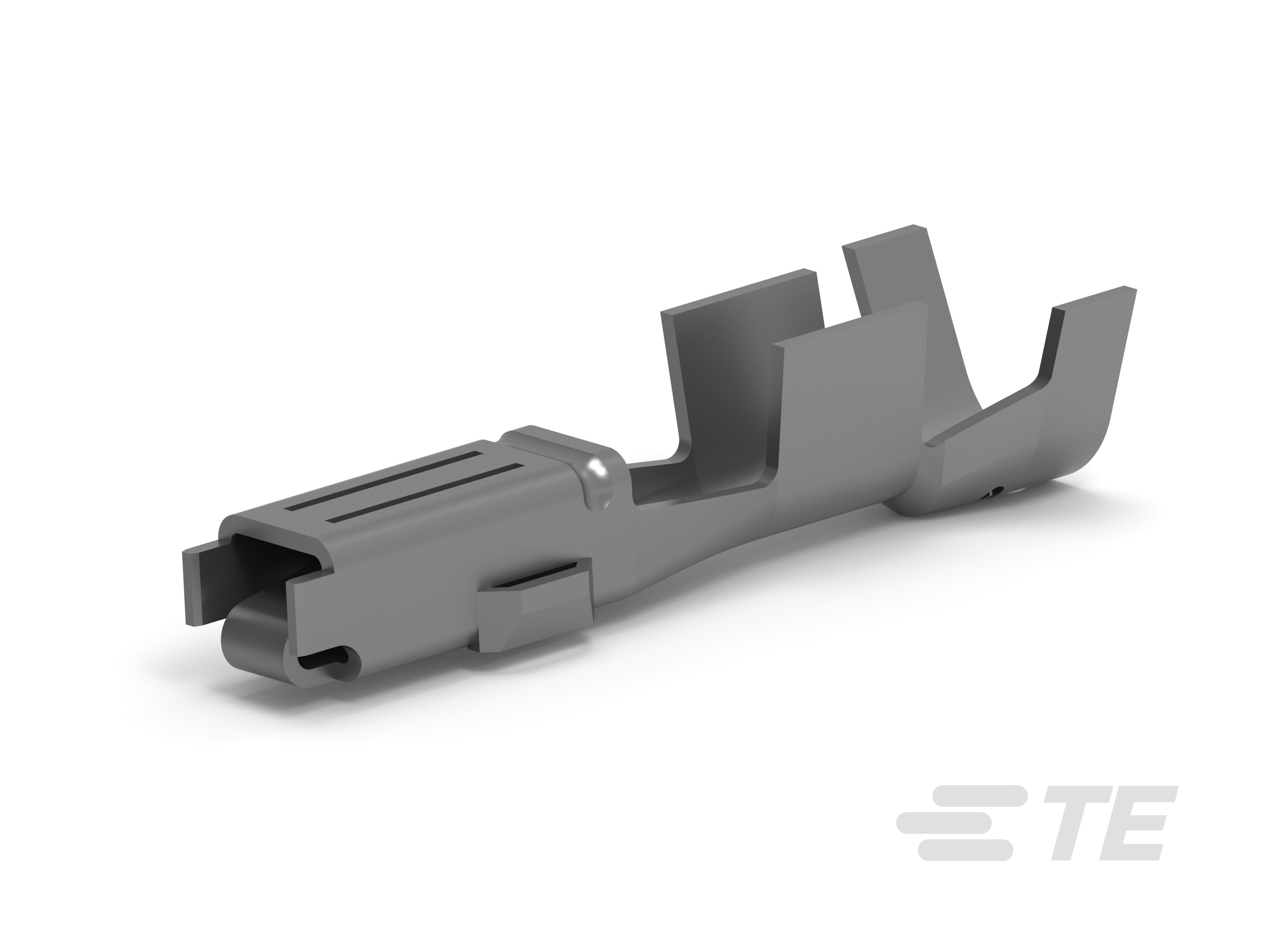

 TE Connectivity AMP Connectors | Crimp | Socket | 14 AWG | 20.5 AWG | Tin | Stamped | |||||||||||||||||||
 TE Connectivity AMP Connectors | Rectangular Contacts | 16-24 AWG Rectangular Contacts | 24 AWG | 16 AWG | Extraction Tool | ||||||||||||||||||||
 TE Connectivity AMP Connectors | Black | Crimp | Plug | Latch Holder | Male Pin | Glass Filled Polybutylene Terephthalate (PBT) | 1 | 0.197 in | 2 | Free Hanging (In-Line) | -40 °C | 125 °C | |||||||||||||
 TE Connectivity AMP Connectors | Black | Crimp | Receptacle | Latch Holder | Female Socket | Glass Filled Polybutylene Terephthalate (PBT) | Sealed | 1 | 1 | Free Hanging (In-Line) | -40 °C | 125 °C | |||||||||||||
 TE Connectivity AMP Connectors | Crimp | Socket | 14 AWG | 20.5 AWG | Gold | 30 µin | |||||||||||||||||||
 TE Connectivity AMP Connectors | Natural | Crimp | Receptacle | Latch Holder | Female Socket | Glass Filled Polybutylene Terephthalate (PBT) | 2 | 0.197 in | 4 | Free Hanging (In-Line) | -40 °C | 125 °C |
