1986723 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

STANDARD TERMINAL BLOCK, PLUGGABLE, 21 CONTACTS, 3.5 MM, TERMINAL BLOCK, PLUGGABLE, CABLE MOUNT

Part	Plug Wire Entry Angle	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - UL	Type	Positions Per Level	Pitch	Mounting Type	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Termination Style	Contact Mating Finish	Color	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Features	Current - UL	Number of Levels	Housing Material	Contact Material	Insulation Height	Material Flammability Rating
TE Connectivity AMP Connectors 2-1986723-1	180 °	21	-40 °C	110 °C	300 V	Female Sockets Plug	21	0.138 in	Free Hanging (In-Line)	0.05 mm²	2 mm²	Push-In Spring Screwless - Leg Spring	Tin	Green	30 AWG	14 AWG	Mating Flange	9 A	1	Nylon PA Polyamide	Copper Alloy	0.459 in	UL94 V-0
TE Connectivity AMP Connectors 1986723-5	180 °	5	-40 °C	110 °C	300 V	Female Sockets Plug	5	0.138 in	Free Hanging (In-Line)	0.05 mm²	2 mm²	Push-In Spring Screwless - Leg Spring	Tin	Green	30 AWG	14 AWG	Mating Flange	9 A	1	Nylon PA Polyamide	Copper Alloy	0.459 in	UL94 V-0

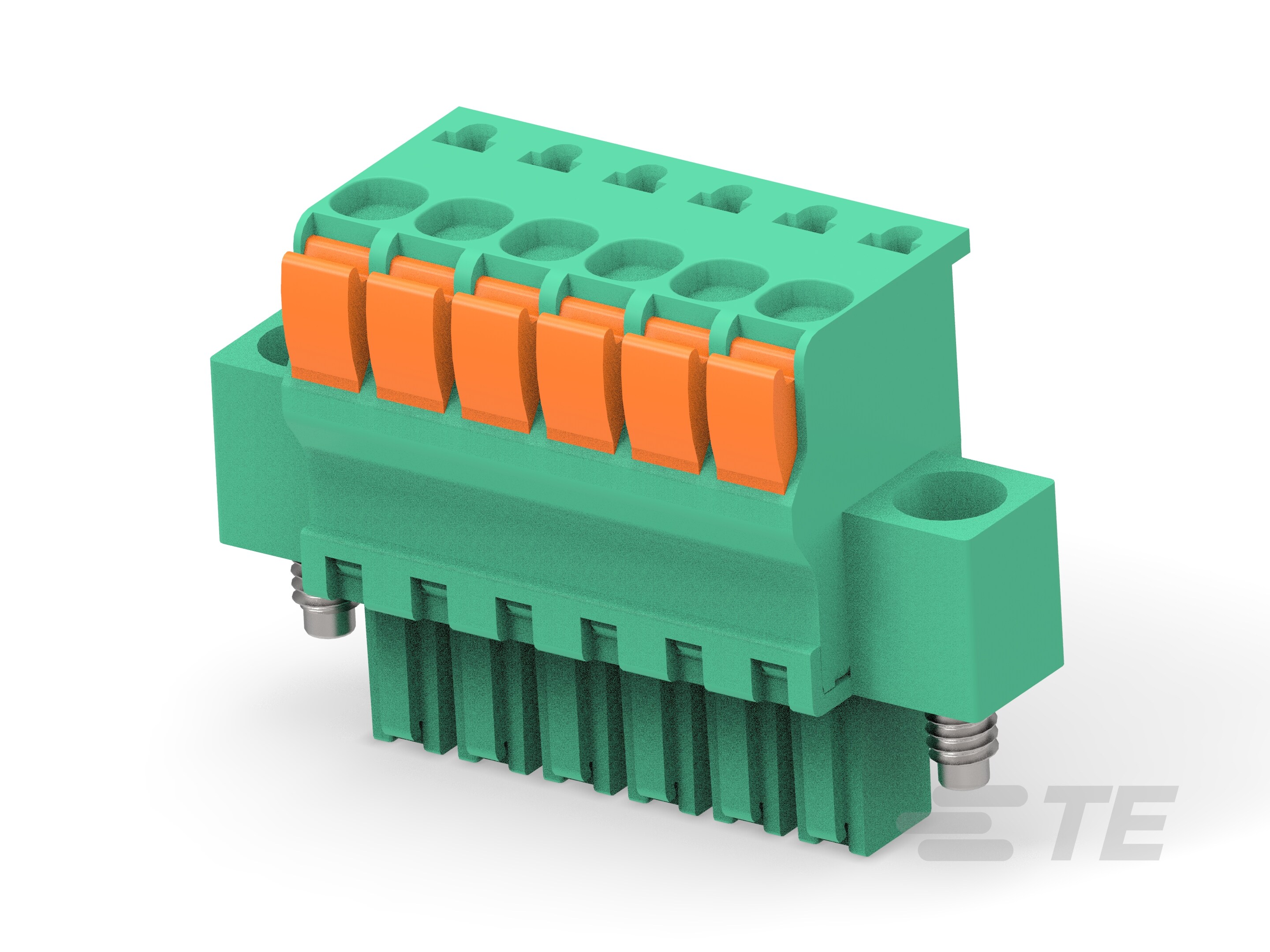

TE Connectivity AMP Connectors 1986723-6	180 °	6	-40 °C	110 °C	300 V	Female Sockets Plug	6	0.138 in	Free Hanging (In-Line)	0.05 mm²	2 mm²	Push-In Spring Screwless - Leg Spring	Tin	Green	30 AWG	14 AWG	Mating Flange	9 A	1	Nylon PA Polyamide	Copper Alloy	0.459 in	UL94 V-0
TE Connectivity AMP Connectors 1-1986723-4	180 °	14	-40 °C	110 °C	300 V	Female Sockets Plug	14	0.138 in	Free Hanging (In-Line)	0.05 mm²	2 mm²	Push-In Spring Screwless - Leg Spring	Tin	Green	30 AWG	14 AWG	Mating Flange	9 A	1	Nylon PA Polyamide	Copper Alloy	0.459 in	UL94 V-0
TE Connectivity AMP Connectors 1-1986723-3	180 °	13	-40 °C	110 °C	300 V	Female Sockets Plug	13	0.138 in	Free Hanging (In-Line)	0.05 mm²	2 mm²	Push-In Spring Screwless - Leg Spring	Tin	Green	30 AWG	14 AWG	Mating Flange	9 A	1	Nylon PA Polyamide	Copper Alloy	0.459 in	UL94 V-0
TE Connectivity AMP Connectors 1-1986723-6	180 °	16	-40 °C	110 °C	300 V	Female Sockets Plug	16	0.138 in	Free Hanging (In-Line)	0.05 mm²	2 mm²	Push-In Spring Screwless - Leg Spring	Tin	Green	30 AWG	14 AWG	Mating Flange	9 A	1	Nylon PA Polyamide	Copper Alloy	0.459 in	UL94 V-0

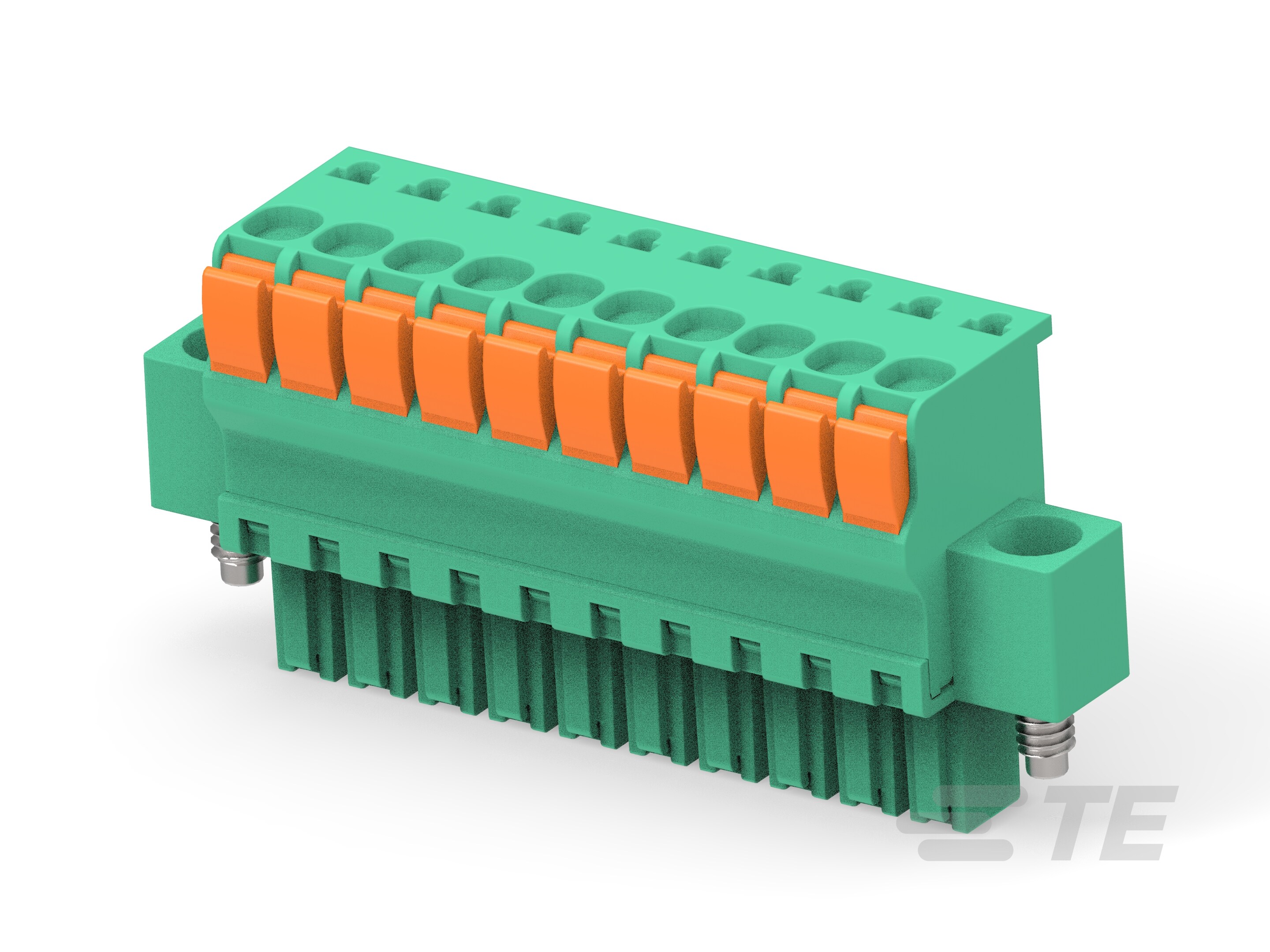

TE Connectivity AMP Connectors 1-1986723-0	180 °	10	-40 °C	110 °C	300 V	Female Sockets Plug	10	0.138 in	Free Hanging (In-Line)	0.05 mm²	2 mm²	Push-In Spring Screwless - Leg Spring	Tin	Green	30 AWG	14 AWG	Mating Flange	9 A	1	Nylon PA Polyamide	Copper Alloy	0.459 in	UL94 V-0
TE Connectivity AMP Connectors 1-1986723-2	180 °	12	-40 °C	110 °C	300 V	Female Sockets Plug	12	0.138 in	Free Hanging (In-Line)	0.05 mm²	2 mm²	Push-In Spring Screwless - Leg Spring	Tin	Green	30 AWG	14 AWG	Mating Flange	9 A	1	Nylon PA Polyamide	Copper Alloy	0.459 in	UL94 V-0
