FUSE - BF1 32V / 1000A DC, 23A 1000 PC
Description
AI

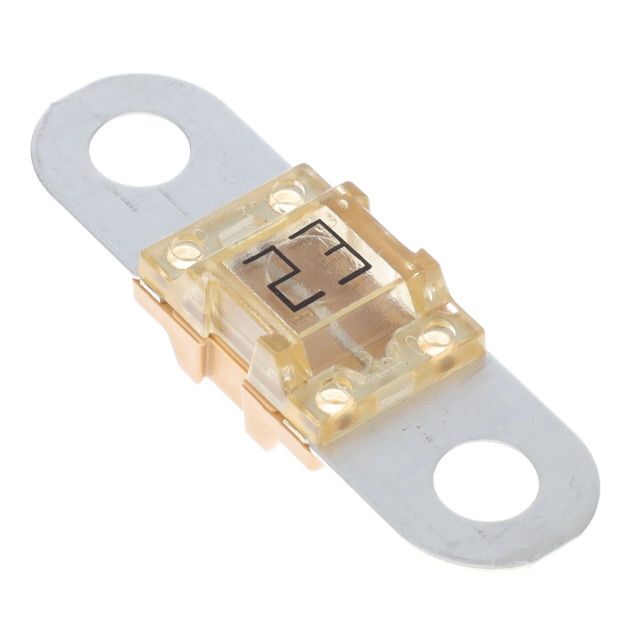

This 70 A BF1 32V bolt-down automotive fuse employs SLO-BLO® technology to provide time-delayed protection for high-current wiring harnesses.
Beta
⌘K
FUSE - BF1 32V / 1000A DC, 23A 1000 PC
FUSE - BF1 32V / 1000A DC, 23A 1000 PC
| Part | Size / Dimension Width | Size / Dimension Height | Size / Dimension Length | DC Cold Resistance | Approval Agency | Breaking Capacity | Fuse Type | Voltage Rating - DC | Response Time | Mounting Type | Current Rating | Package / Case | Color | Melting I²t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 0.472 in | 0.315 in 0.323 in | 0.63 in 1.63 in | 0.0035 Ohms | UL | 1 kA | Automotive | 32 V | Slow Blow | Bolt Mount | 23 A | Auto Link | Tan | 1400 |
 LITTELFUSE | ||||||||||||||
LITTELFUSE | 0.472 in | 0.315 in | 1.63 in | cURus | 1 kA | Automotive | 58 VDC | Bolt Mount | 40 A | Auto Link | Green | 6800 | ||
 LITTELFUSE | 0.472 in | 0.315 in 0.323 in | 0.63 in 1.63 in | 0.00064 Ohms | ISO UL | 2 kA | Automotive | 32 V | Slow Blow | Bolt Mount | 70 A | Auto Link | Tan | 22000 |
