94654 Series

Catalog

CONN HEADER VERT 50POS 2.54MM

Part	Number of Positions	Contact Type	Material Flammability Rating	Shrouding	Mounting Type	Connector Type	Number of Rows	Contact Shape	Row Spacing - Mating	Number of Positions Loaded	Overall Contact Length	Contact Finish - Mating	Insulation Color	Pitch - Mating	Contact Length - Post	Contact Finish Thickness - Mating	Style	Fastening Type	Insulation Height	Contact Length - Mating	Contact Material	Insulation Material	Termination
Amphenol ICC (FCI) 94654-650H	50	Male Pin	UL94 V-0	Unshrouded	Through Hole	Header	2	Square	0.1 in	All	0.415 in	Gold GXT™	Black	0.1 in	0.085 in	30 µin	Board	Push-Pull	0.1 in	0.23 in	Phosphor Bronze	Polycyclohexylenedimethylene Terephthalate (PCT)	Kinked Pin Solder
Amphenol ICC (FCI) 94654-160HLF	60	Male Pin	UL94 V-0	Unshrouded	Through Hole	Header	2	Square	0.1 in	All	0.415 in	Gold GXT™	Black	0.1 in	0.085 in	30 µin	Board	Push-Pull	0.1 in	0.23 in	Phosphor Bronze	Polycyclohexylenedimethylene Terephthalate (PCT)	Kinked Pin Solder
Amphenol ICC (FCI) 94654-220H	20	Male Pin	UL94 V-0	Unshrouded	Through Hole	Header	2	Square	0.1 in	All	0.415 in	Gold GXT™	Black	0.1 in	0.085 in	15 µin	Board	Push-Pull	0.1 in	0.23 in	Phosphor Bronze	Polycyclohexylenedimethylene Terephthalate (PCT)	Kinked Pin Solder

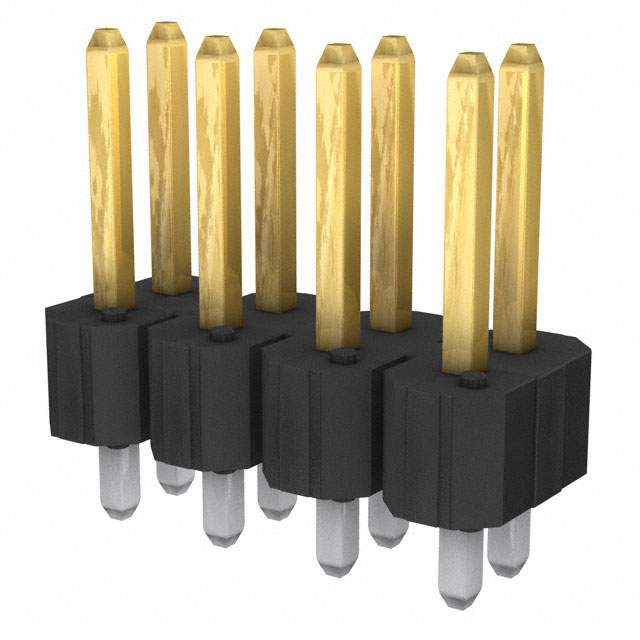

Amphenol ICC (FCI) 94654-108HLF	8	Male Pin	UL94 V-0	Unshrouded	Through Hole	Header	2	Square	0.1 in	All	0.415 in	Gold GXT™	Black	0.1 in	0.085 in	30 µin	Board	Push-Pull	0.1 in	0.23 in	Phosphor Bronze	Polycyclohexylenedimethylene Terephthalate (PCT)	Kinked Pin Solder
Amphenol ICC (FCI) 94654-110HLF	10	Male Pin	UL94 V-0	Unshrouded	Through Hole	Header	2	Square	0.1 in	All	0.415 in	Gold GXT™	Black	0.1 in	0.085 in	30 µin	Board	Push-Pull	0.1 in	0.23 in	Phosphor Bronze	Polycyclohexylenedimethylene Terephthalate (PCT)	Kinked Pin Solder
Amphenol ICC (FCI) 94654-118HLF	18	Male Pin	UL94 V-0	Unshrouded	Through Hole	Header	2	Square	0.1 in	All	0.415 in	Gold GXT™	Black	0.1 in	0.085 in	30 µin	Board	Push-Pull	0.1 in	0.23 in	Phosphor Bronze	Polycyclohexylenedimethylene Terephthalate (PCT)	Kinked Pin Solder
Amphenol ICC (FCI) 94654-202H	2	Male Pin	UL94 V-0	Unshrouded	Through Hole	Header	2	Square	0.1 in	All	0.415 in	Gold GXT™	Black		0.085 in	15 µin	Board	Push-Pull	0.1 in	0.23 in	Phosphor Bronze	Polycyclohexylenedimethylene Terephthalate (PCT)	Kinked Pin Solder
Amphenol ICC (FCI) 94654-132HLF	32	Male Pin	UL94 V-0	Unshrouded	Through Hole	Header	2	Square	0.1 in	All	0.415 in	Gold GXT™	Black	0.1 in	0.085 in	30 µin	Board	Push-Pull	0.1 in	0.23 in	Phosphor Bronze	Polycyclohexylenedimethylene Terephthalate (PCT)	Kinked Pin Solder
Amphenol ICC (FCI) 94654-150HLF	50	Male Pin	UL94 V-0	Unshrouded	Through Hole	Header	2	Square	0.1 in	All	0.415 in	Gold GXT™	Black	0.1 in	0.085 in	30 µin	Board	Push-Pull	0.1 in	0.23 in	Phosphor Bronze	Polycyclohexylenedimethylene Terephthalate (PCT)	Kinked Pin Solder
Amphenol ICC (FCI) 94654-118H	18	Male Pin	UL94 V-0	Unshrouded	Through Hole	Header	2	Square	0.1 in	All	0.415 in	Gold GXT™	Black	0.1 in	0.085 in	30 µin	Board	Push-Pull	0.1 in	0.23 in	Phosphor Bronze	Polycyclohexylenedimethylene Terephthalate (PCT)	Kinked Pin Solder
