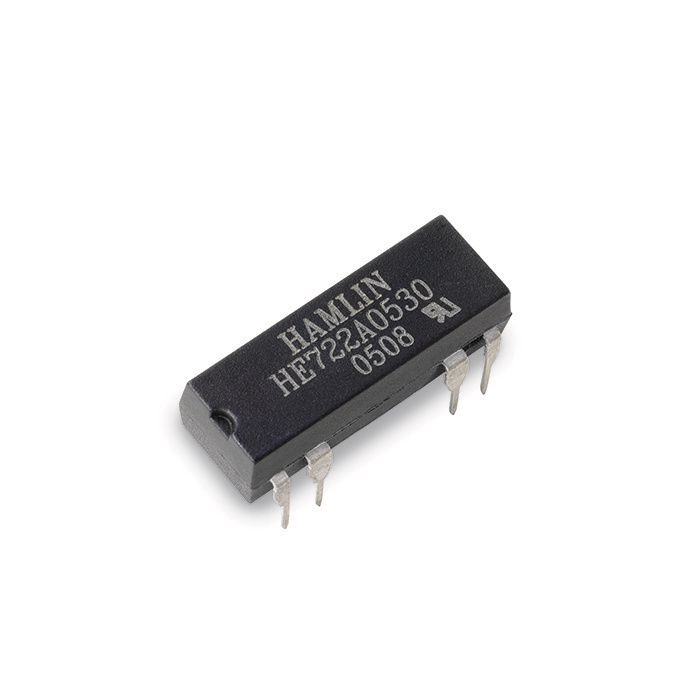

HE721C12 Series

HE721C1250 REED RELAY

Catalog

HE721C1250 REED RELAY

Part	Mounting Type	Contact Rating (Current)	Coil Type	Coil Current	Contact Form	Switching Voltage DC (Max)	Coil Voltage	Must Release Voltage	Must Operate Voltage	Release Time	Operating Temperature (Min)	Operating Temperature (Max)	Termination Style	Features	Operate Time	Coil Resistance
LITTELFUSE HE721C1210	Through Hole	250 mA	Non Latching	24 mA	1 C Form SPDT	175 VDC	12 VAC	1 VDC	8 VDC	3 ms	-40 °C	85 °C	PC Pin	Diode	3 ms	500 Ohms
LITTELFUSE HE721C1250	Through Hole	250 mA	Non Latching	24 mA	1 C Form SPDT	175 VDC	12 VAC	1 VDC	8 VDC	3 ms	-40 °C	85 °C	PC Pin	Diode EMI Shielded	3 ms
LITTELFUSE HE721C1200	Through Hole	250 mA	Non Latching	24 mA	1 C Form SPDT	175 VDC	12 VAC	1 VDC	8 VDC	3 ms	-40 °C	85 °C	PC Pin		3 ms	500 Ohms
LITTELFUSE HE721C1230	Through Hole	250 mA	Non Latching	24 mA	1 C Form SPDT	175 VDC	12 VAC	1 VDC	8 VDC	3 ms	-40 °C	85 °C	PC Pin	Diode Electrostatic Shield	3 ms

Catalog

HE721C1250 REED RELAY

Description

Miniature reed relay in a dual-in-line (DIL) package with a choice of normally open, normally open high-voltage, normally closed or changeover contacts capable of switching up to 300Vdc at 10W. Available with 5V, 12V and 24V coils and diode suppression. Magnetic shield option available. Ideally suited for security, telecom, instrumentation, process control and industrial applications.
