1971875 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
PTL 3X5 CAP PANEL MT STD TEMP KEY C BLU
| Part | Note | Connector Type | Row Spacing | Insulation Material | Number of Rows | Operating Temperature (Min) | Operating Temperature (Max) | Fastening Type | Contact Termination | Contact Type | Color | Mounting Type | Pitch | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Contacts Not Included | Receptacle | 0.319 in | Polybutylene Terephthalate (PBT) | 3 | -55 °C | 105 °C | Latch Holder | Crimp | Tab | Blue | Panel Mount Snap-In | 0.236 in | 15 |

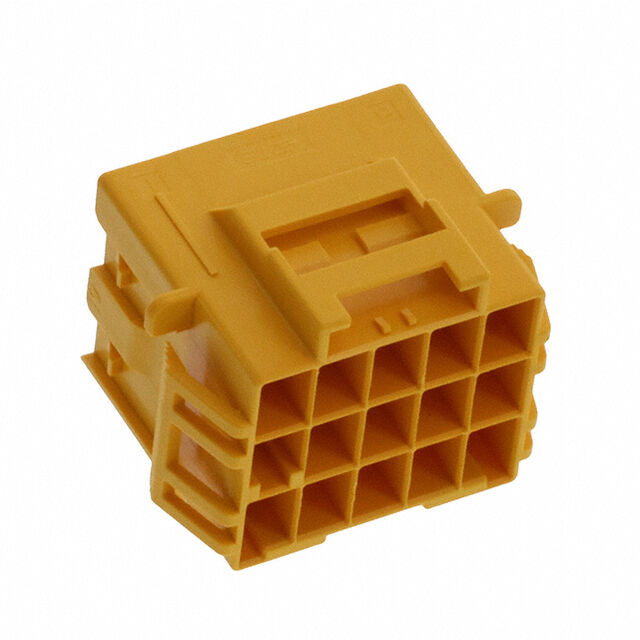

 TE Connectivity AMP Connectors | Contacts Not Included | Receptacle | 0.319 in | Polybutylene Terephthalate (PBT) | 3 | -55 °C | 105 °C | Latch Holder | Crimp | Tab | Yellow | Panel Mount Snap-In | 0.236 in | 15 |
 TE Connectivity AMP Connectors | Contacts Not Included | Receptacle | 0.319 in | Nylon Polyamide (PA) | 3 | -55 °C | 150 °C | Latch Lock | Crimp | Tab | Red | Panel Mount Snap-In | 0.236 in | 9 |
 TE Connectivity AMP Connectors | Contacts Not Included | Receptacle | 0.319 in | Nylon Polyamide (PA) | 3 | -55 °C | 150 °C | Latch Lock | Crimp | Tab | Natural | Panel Mount Snap-In | 0.236 in | 15 |
 TE Connectivity AMP Connectors | Contacts Not Included | Receptacle | Glass Filled Polybutylene Terephthalate (PBT) | 3 | -55 °C | 105 °C | Latch Lock | Crimp | Tab | Blue | Panel Mount | 0.236 in | 9 | |
 TE Connectivity AMP Connectors | Contacts Not Included | Receptacle | 0.319 in | Nylon Polyamide (PA) | 3 | -55 °C | 150 °C | Latch Lock | Crimp | Tab | Black | Panel Mount Snap-In | 0.236 in | 12 |
 TE Connectivity AMP Connectors | Contacts Not Included | Receptacle | Glass Filled Polybutylene Terephthalate (PBT) | 3 | -55 °C | 105 °C | Latch Lock | Crimp | Tab | Blue | Panel Mount | 0.236 in | 12 | |
 TE Connectivity AMP Connectors | Contacts Not Included | Receptacle | 0.319 in | Polybutylene Terephthalate (PBT) | 3 | -55 °C | 105 °C | Latch Lock | Crimp | Tab | Gray | Panel Mount Snap-In | 0.236 in | 9 |
 TE Connectivity AMP Connectors | Contacts Not Included | Receptacle | 0.319 in | Nylon Polyamide (PA) | 3 | -55 °C | 150 °C | Latch Lock | Crimp | Tab | Natural | Panel Mount Snap-In | 0.236 in | 12 |
 TE Connectivity AMP Connectors | Contacts Not Included | Receptacle | 0.319 in | Nylon Polyamide (PA) | 3 | -55 °C | 150 °C | Latch Lock | Crimp | Tab | Natural | Panel Mount Snap-In | 0.236 in | 9 |
