2340321 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

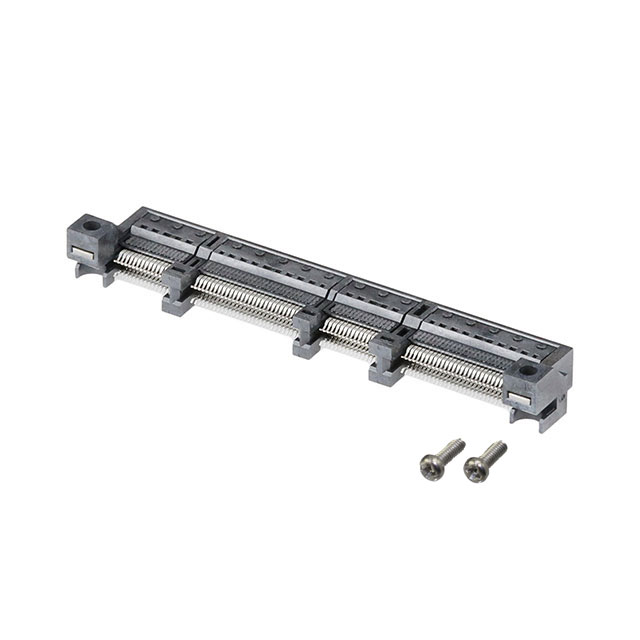

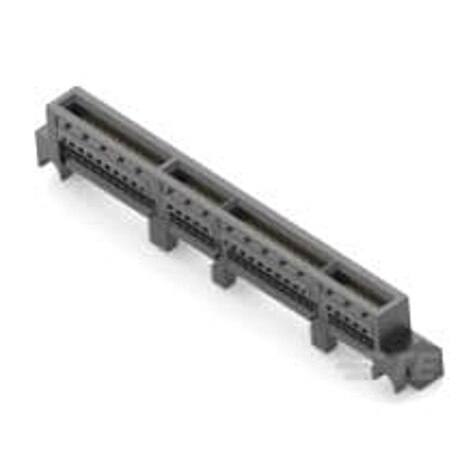

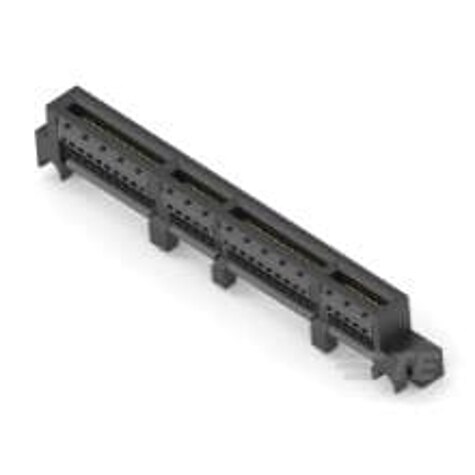

STANDARD CARD EDGE CONNECTORS ASY STRADDLE MOUNT 168P 076 SLIVER 2.0
| Part | Card Thickness | Contact Material | Number of Positions/Bay/Row | Operating Temperature (Min) | Operating Temperature (Max) | Material - Insulation | Number of Positions | Gender | Termination | Pitch | Number of Rows | Contact Finish | Flange Feature | Flange Feature Opening Size | Read Out | Contact Finish Thickness | Card Type | Mounting Type | Color | Contact Type | Termination Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.076 in | Copper Alloy | 14 28 | -40 °C | 85 °C | LCP Liquid Crystal Polymer | 168 | Female | Solder | 0.024 in | 2 | Gold | Straddle Mount Opening Unthreaded | 0.094 in | Dual | 30 µin | Dual Edge Non Specified | Board Edge Straddle Mount | Black | ||
 TE Connectivity AMP Connectors | 0.076 in | Copper Alloy | 14 28 | -40 °C | 85 °C | LCP Liquid Crystal Polymer | 168 | Female | Solder | 0.024 in | 2 | Gold | Straddle Mount Opening Unthreaded | 0.094 in | Dual | 30 µin | Dual Edge Non Specified | Board Edge Straddle Mount | Black | ||
 TE Connectivity AMP Connectors | 0.062 in | Copper Alloy | 14 28 | -40 °C | 85 °C | 168 | Female | Solder | 0.024 in | 2 | Gold | Straddle Mount Opening Unthreaded | 0.094 in | Dual | 30 µin | Dual Edge Non Specified | Board Edge Straddle Mount | Black | Cantilever | ||
 TE Connectivity AMP Connectors | 0.062 in | Copper Alloy | 14 28 | LCP Liquid Crystal Polymer | 168 | Female | Solder | 0.024 in | 2 | Gold | Straddle Mount Opening Unthreaded | 0.094 in | Dual | 30 µin | Dual Edge Non Specified | Board Edge Straddle Mount | Black | Cantilever | 2 rows | ||
TE Connectivity AMP Connectors | |||||||||||||||||||||
 TE Connectivity AMP Connectors | 0.062 in | Copper Alloy | LCP Liquid Crystal Polymer | 168 | Female | Solder | 0.024 in | 2 | Gold | Straddle Mount Opening Unthreaded | 0.094 in | Dual | 30 µin | Dual Edge Non Specified | Board Edge Straddle Mount | Black | |||||
TE Connectivity AMP Connectors | 0.062 in | Copper Alloy | 14 28 | LCP Liquid Crystal Polymer | 168 | Female | Solder | 0.024 in | 2 | Gold | Straddle Mount Opening Unthreaded | 0.094 in | Dual | 30 µin | Dual Edge Non Specified | Board Edge Straddle Mount | Black | Cantilever | 2 rows |
