5414974 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

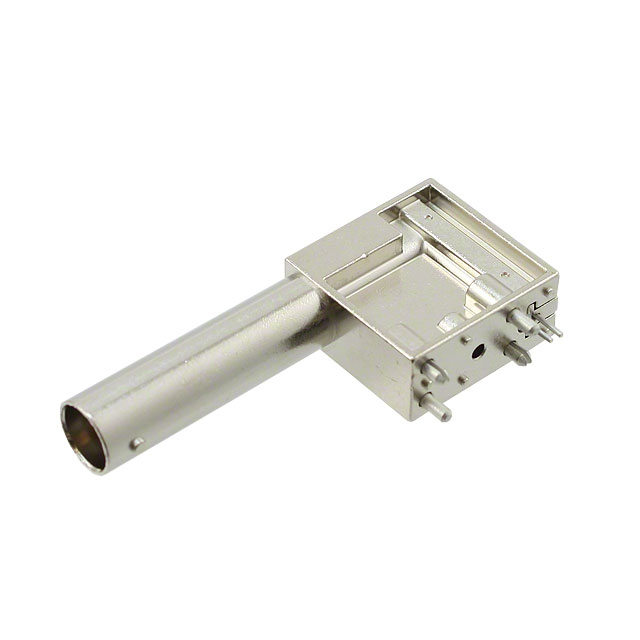

CONN BNC JACK R/A 50 OHM PCB
| Part | Mating Cycles | Center Contact Plating | Operating Temperature (Min) | Operating Temperature (Max) | Dielectric Material | Body Material | Voltage Rating | Body Finish | Fastening Type | Connector Type | Mounting Type | Center Contact Material | Housing Color | Features | Number of Ports | Frequency - Max | Connector Style | Shield Termination | Contact Termination | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 500 cycles | Gold | -55 °C | 85 °C | Polymethylpentene (PMP) | Zinc | 500 V | Nickel | Bayonet Lock | Female Socket Jack | Right Angle Through Hole | Beryllium Copper | Silver | Board Lock | 1 | 4 GHz | BNC | Solder | Solder | 50 Ohm |
