A1DXB Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

IDC CABLE- AKR10B/AE10M/X

Part	Contact Finish	Length [x]	Length [x]	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Pitch - Connector	Pitch - Connector	Color	Number of Rows	Pitch - Cable	Pitch - Cable	Shielding	Number of Positions	Features	Cable Termination	Number of Positions
TE Connectivity Raychem Cable Protection A1DXB-1036M	Gold	3 ft	914.4 mm	0.76 Ám	30 Áin	Socket to Cable	0.1 in	2.54 mm	Multiple Ribbon	2	0.05 "	1.27 mm	Unshielded	10	Polarizing Key Strain Relief	IDC
TE Connectivity Raychem Cable Protection A1DXB-3036G	Gold	3 ft	914.4 mm	0.76 Ám	30 Áin	Socket to Cable	0.1 in	2.54 mm		2	0.05 "	1.27 mm	Unshielded	30	Polarizing Key Strain Relief	IDC

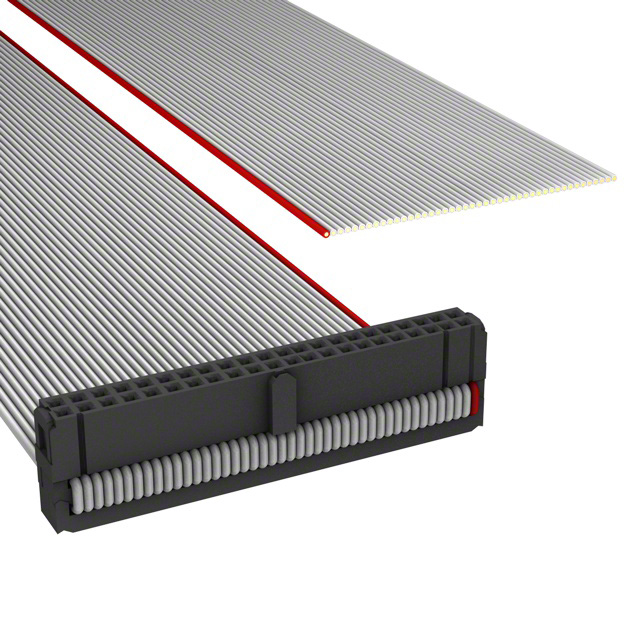

TE Connectivity Raychem Cable Protection A1DXB-4436G	Gold	3 ft	914.4 mm	0.76 Ám	30 Áin	Socket to Cable	0.1 in	2.54 mm		2	0.05 "	1.27 mm	Unshielded	44	Polarizing Key Strain Relief	IDC
TE Connectivity Raychem Cable Protection A1DXB-4036G	Gold	3 ft	914.4 mm	0.76 Ám	30 Áin	Socket to Cable	0.1 in	2.54 mm		2	0.05 "	1.27 mm	Unshielded	40	Polarizing Key Strain Relief	IDC
TE Connectivity Raychem Cable Protection A1DXB-1436G	Gold	3 ft	914.4 mm	0.76 Ám	30 Áin	Socket to Cable	0.1 in	2.54 mm		2	0.05 "	1.27 mm	Unshielded	14	Polarizing Key Strain Relief	IDC
TE Connectivity Raychem Cable Protection A1DXB-1636M	Gold	3 ft	914.4 mm	0.76 Ám	30 Áin	Socket to Cable	0.1 in	2.54 mm	Multiple Ribbon	2	0.05 "	1.27 mm	Unshielded		Polarizing Key Strain Relief	IDC	16
TE Connectivity Raychem Cable Protection A1DXB-2036M	Gold	3 ft	914.4 mm	0.76 Ám	30 Áin	Socket to Cable	0.1 in	2.54 mm	Multiple Ribbon	2	0.05 "	1.27 mm	Unshielded	20	Polarizing Key Strain Relief	IDC
TE Connectivity Raychem Cable Protection A1DXB-1636G	Gold	3 ft	914.4 mm	0.76 Ám	30 Áin	Socket to Cable	0.1 in	2.54 mm		2	0.05 "	1.27 mm	Unshielded		Polarizing Key Strain Relief	IDC	16

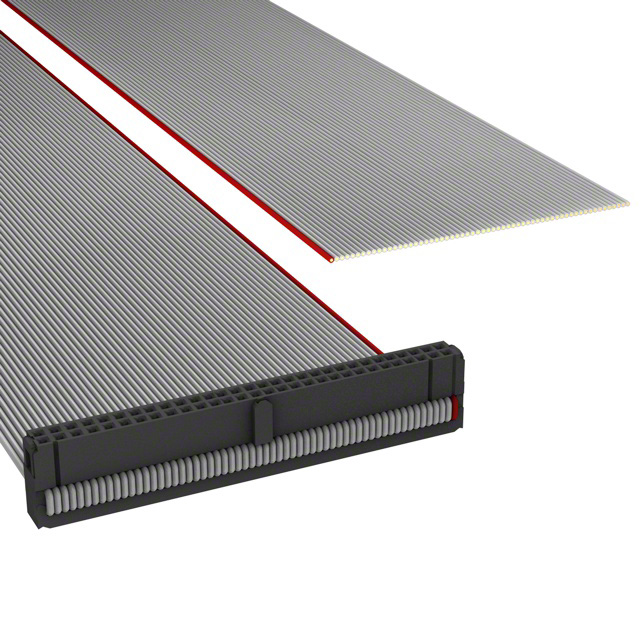

TE Connectivity Raychem Cable Protection A1DXB-6036G	Gold	3 ft	914.4 mm	0.76 Ám	30 Áin	Socket to Cable	0.1 in	2.54 mm		2	0.05 "	1.27 mm	Unshielded	60	Polarizing Key Strain Relief	IDC
TE Connectivity Raychem Cable Protection A1DXB-2636M	Gold	3 ft	914.4 mm	0.76 Ám	30 Áin	Socket to Cable	0.1 in	2.54 mm	Multiple Ribbon	2	0.05 "	1.27 mm	Unshielded	26	Polarizing Key Strain Relief	IDC
