DSPIC30F6012 Series | Microchip Technology | Zenode.ai

Catalog

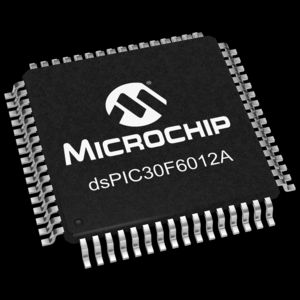

IC MCU 16BIT 144KB FLASH 64TQFP

Part	Type	Program Memory Type	EEPROM Size (Width)	EEPROM Size (Depth)	A/D Resolution (bits)	A/D Channels	Operating Temperature (Max)	Operating Temperature (Min)	Package Width	Package Name	Package Length	Package / Case	Core Processor	Program Memory Size	Program Memory Width	Program Memory Depth	RAM Size Width	RAM Size Depth	Speed	Number of I/O	Core Size (Bit Width)	Peripherals	Connectivity	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Mounting Type	Oscillator Type
Microchip Technology DSPIC30F6012AT-30I/PF	Digital Signal Controllers	FLASH	8 bit	4 K	12 bit	16 count	85 °C	-40 °C	14 mm	64-TQFP	14 mm	64-TQFP	dsPIC	144 KB	24	48 K	8 bit	8 K	30 MIPs	52	16 Bit	AC'97 Brown-out Detect I2S LVD POR PWM Reset WDT	CANbus I2C SPI UART USART	2.5 V	5.5 V	Surface Mount	Internal
Microchip Technology DSPIC30F6012-20I/PF	Digital Signal Controllers	FLASH	8 bit	4 K	12 bit	16 count	85 °C	-40 °C	14 mm	64-TQFP	14 mm	64-TQFP	dsPIC	144 KB	24	48 K	8 bit	8 K	20 MIPS	52	16 Bit	AC'97 Brown-out Detect I2S LVD POR PWM Reset WDT	CANbus I2C SPI UART USART	2.5 V	5.5 V	Surface Mount	Internal
Microchip Technology DSPIC30F6012A-30I/PF	Digital Signal Controllers	FLASH	8 bit	4 K	12 bit	16 count	85 °C	-40 °C	14 mm	64-TQFP	14 mm	64-TQFP	dsPIC	144 KB	24	48 K	8 bit	8 K	30 MIPs	52	16 Bit	AC'97 Brown-out Detect I2S LVD POR PWM Reset WDT	CANbus I2C SPI UART USART	2.5 V	5.5 V	Surface Mount	Internal
Microchip Technology DSPIC30F6012A-20I/PT	Digital Signal Controllers	FLASH	8 bit	4 K	12 bit	16 count	85 °C	-40 °C	10 mm	64-TQFP	10 mm	64-TQFP	dsPIC	144 KB	24	48 K	8 bit	8 K	20 MIPS	52	16 Bit	AC'97 Brown-out Detect I2S LVD POR PWM Reset WDT	CANbus I2C SPI UART USART	2.5 V	5.5 V	Surface Mount	Internal
Microchip Technology DSPIC30F6012T-30I/PF	Digital Signal Controllers	FLASH	8 bit	4 K	12 bit	16 count	85 °C	-40 °C	14 mm	64-TQFP	14 mm	64-TQFP	dsPIC	144 KB	24	48 K	8 bit	8 K	30 MIPs	52	16 Bit	AC'97 Brown-out Detect I2S LVD POR PWM Reset WDT	CANbus I2C SPI UART USART	2.5 V	5.5 V	Surface Mount	Internal
Microchip Technology DSPIC30F6012T-20I/PF	Digital Signal Controllers	FLASH	8 bit	4 K	12 bit	16 count	85 °C	-40 °C	14 mm	64-TQFP	14 mm	64-TQFP	dsPIC	144 KB	24	48 K	8 bit	8 K	20 MIPS	52	16 Bit	AC'97 Brown-out Detect I2S LVD POR PWM Reset WDT	CANbus I2C SPI UART USART	2.5 V	5.5 V	Surface Mount	Internal
Microchip Technology DSPIC30F6012-20E/PF		FLASH	8 bit	4 K	12 bit	16 count	125 °C	-40 °C	14 mm	64-TQFP	14 mm	64-TQFP	dsPIC	144 KB	24	48 K	8 bit	8 K	20 MIPS	52	16 Bit	AC'97 Brown-out Detect I2S LVD POR PWM Reset WDT	CANbus I2C SPI UART USART	2.5 V	5.5 V	Surface Mount	Internal
Microchip Technology DSPIC30F6012AT-20E/PF	Digital Signal Controllers	FLASH	8 bit	4 K	12 bit	16 count	125 °C	-40 °C	14 mm	64-TQFP	14 mm	64-TQFP	dsPIC	144 KB	24	48 K	8 bit	8 K	20 MIPS	52	16 Bit	AC'97 Brown-out Detect I2S LVD POR PWM Reset WDT	CANbus I2C SPI UART USART	2.5 V	5.5 V	Surface Mount	Internal
Microchip Technology DSPIC30F6012A-30I/PT	Digital Signal Controllers	FLASH	8 bit	4 K	12 bit	16 count	85 °C	-40 °C	10 mm	64-TQFP	10 mm	64-TQFP	dsPIC	144 KB	24	48 K	8 bit	8 K	30 MIPs	52	16 Bit	AC'97 Brown-out Detect I2S LVD POR PWM Reset WDT	CANbus I2C SPI UART USART	2.5 V	5.5 V	Surface Mount	Internal
Microchip Technology DSPIC30F6012A-20E/PF	Digital Signal Controllers	FLASH	8 bit	4 K	12 bit	16 count	125 °C	-40 °C	14 mm	64-TQFP	14 mm	64-TQFP	dsPIC	144 KB	24	48 K	8 bit	8 K	20 MIPS	52	16 Bit	AC'97 Brown-out Detect I2S LVD POR PWM Reset WDT	CANbus I2C SPI UART USART	2.5 V	5.5 V	Surface Mount	Internal
