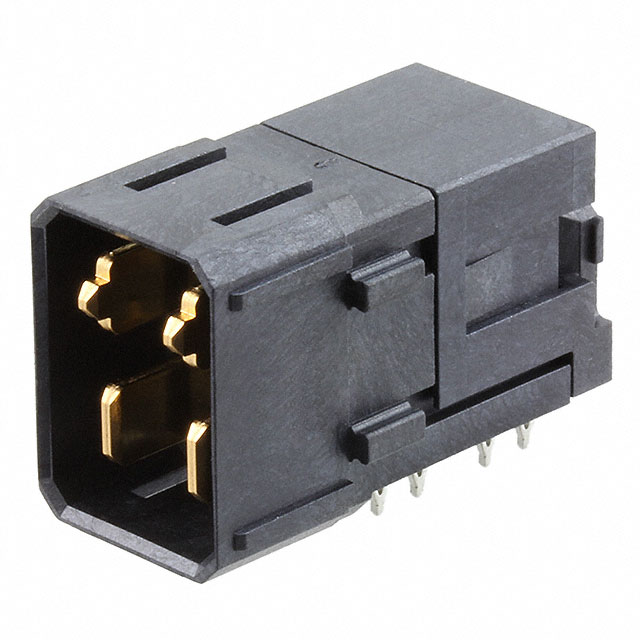

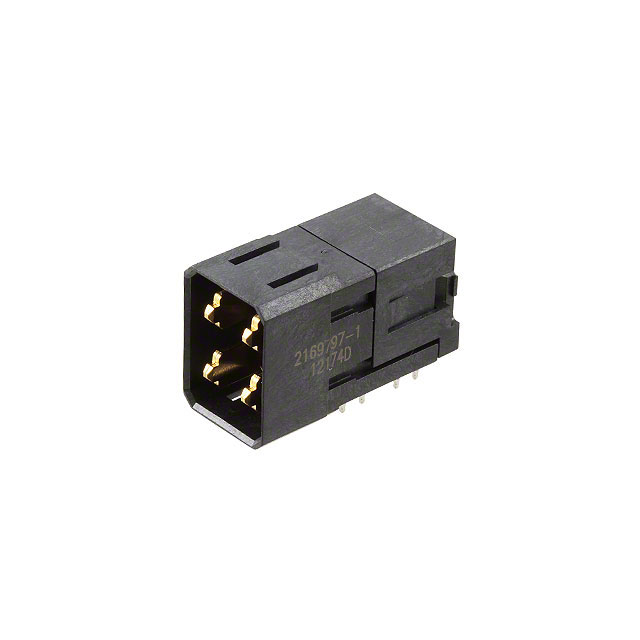

2169797 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
IMP,PWR,3PR,R/A,HDR,6.9,5.7,TIN,W/DOVE
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Material Flammability Rating | Number of Columns | Termination | Power Contacts (Typical) | Connector Style | Contact Finish | Mounting Type | Number of Positions Loaded | Number of Positions | Connector Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -55 °C | 85 °C | UL94 V-0 | 2 | Press-Fit | 4 | Blade Power | Gold | Board Edge Right Angle Through Hole | All | 4 | Header Male Blades | Black |
 TE Connectivity AMP Connectors | -55 °C | 85 °C | UL94 V-0 | 2 | Press-Fit | 4 | Blade Power | Gold | Board Edge Right Angle Through Hole | All | 4 | Header Male Blades | Black |
 TE Connectivity AMP Connectors | -55 °C | 85 °C | UL94 V-0 | 2 | Press-Fit | 4 | Blade Power | Gold | Board Edge Right Angle Through Hole | All | 4 | Header Male Blades | Black |
 TE Connectivity AMP Connectors | -55 °C | 85 °C | UL94 V-0 | 2 | Press-Fit | 4 | Blade Power | Gold | Board Edge Right Angle Through Hole | All | 4 | Header Male Blades | Black |
