640453 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

18P MTA100 HDR ASSY SQ R/A ROHS COMPLIANT: YES

Part	Contact Shape	Shrouding	Number of Positions	Connector Type	Termination	Contact Finish - Post	Number of Positions Loaded	Contact Length - Post	Number of Rows	Contact Material	Insulation Material	Contact Length - Mating	Voltage Rating	Material Flammability Rating	Current Rating	Contact Type	Pitch - Mating	Contact Finish - Mating	Style	Mounting Type	Insulation Color	Insulation Height	Operating Temperature (Min)	Operating Temperature (Max)	Applications
TE Connectivity AMP Connectors 1-640453-8	Square	Unshrouded	18	Header	Solder	Tin	All	0.14 in	1	Copper Alloy	Thermoplastic	0.295 in	250 V	UL94 V-0	Varies by Wire Gauge	Male Pin	0.1 in	Tin	Board Cable/Wire	Right Angle Through Hole	Natural	0.1 in	-55 °C	105 °C	General Purpose
TE Connectivity AMP Connectors 1-640453-3	Square	Unshrouded	13	Header	Solder	Tin	All	0.14 in	1	Copper Alloy	Thermoplastic	0.295 in	250 V	UL94 V-0	Varies by Wire Gauge	Male Pin	0.1 in	Tin	Board Cable/Wire	Right Angle Through Hole	Natural	0.1 in	-55 °C	105 °C	General Purpose

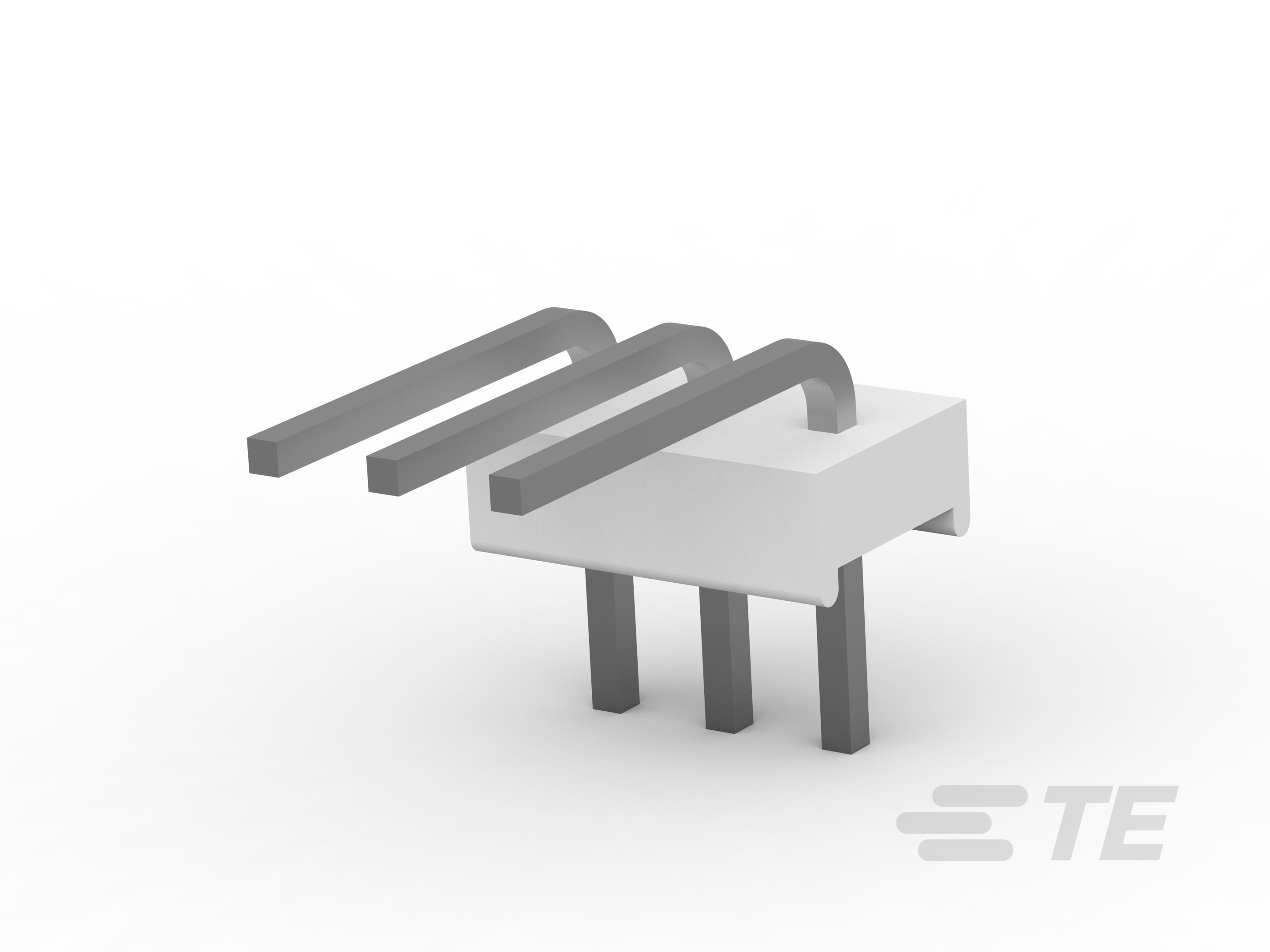

TE Connectivity AMP Connectors 640453-3	Square	Unshrouded	3	Header	Solder	Tin	All	0.14 in	1	Copper Alloy	Thermoplastic	0.295 in	250 V	UL94 V-0	Varies by Wire Gauge	Male Pin	0.1 in	Tin	Board Cable/Wire	Right Angle Through Hole	Natural	0.1 in	-55 °C	105 °C	General Purpose
TE Connectivity AMP Connectors 2-640453-4	Square	Unshrouded	24 pos	Header	Solder	Tin	All	0.14 in	1	Copper Alloy	Thermoplastic	0.295 in	250 V	UL94 V-0	Varies by Wire Gauge	Male Pin	0.1 in	Tin	Board Cable/Wire	Right Angle Through Hole	Natural	0.1 in	-55 °C	105 °C	General Purpose
TE Connectivity AMP Connectors 640453-2	Square	Unshrouded	2	Header	Solder	Tin	All	0.14 in	1	Copper Alloy	Thermoplastic	0.295 in	250 V	UL94 V-0	Varies by Wire Gauge	Male Pin	0.1 in	Tin	Board Cable/Wire	Right Angle Through Hole	Natural	0.1 in	-55 °C	105 °C	General Purpose
TE Connectivity AMP Connectors 640453-6	Square	Unshrouded	6	Header	Solder	Tin	All	0.14 in	1	Copper Alloy	Thermoplastic	0.295 in	250 V	UL94 V-0	Varies by Wire Gauge	Male Pin	0.1 in	Tin	Board Cable/Wire	Right Angle Through Hole	Natural	0.1 in	-55 °C	105 °C	General Purpose
TE Connectivity AMP Connectors 640453-9	Square	Unshrouded	9	Header	Solder	Tin	All	0.14 in	1	Copper Alloy	Thermoplastic	0.295 in	250 V	UL94 V-0	Varies by Wire Gauge	Male Pin	0.1 in	Tin	Board Cable/Wire	Right Angle Through Hole	Natural	0.1 in	-55 °C	105 °C	General Purpose
