25450/3 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

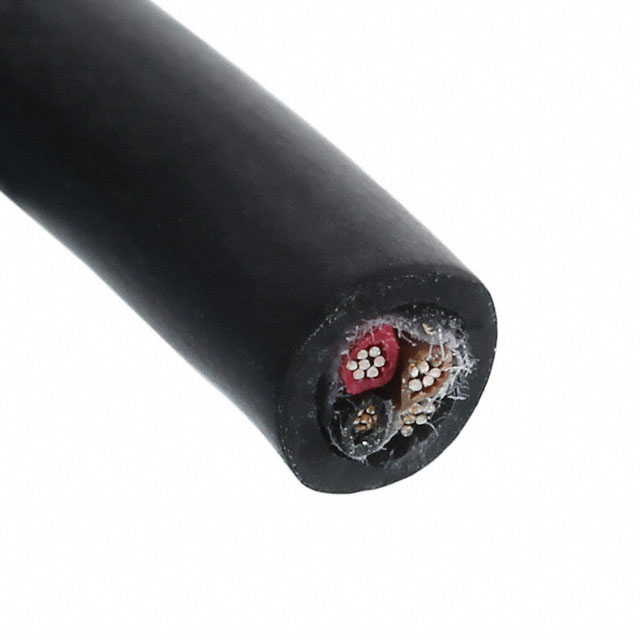

CABLE 3COND 14AWG BLK SHLD 100'
| Part | Jacket (Insulation) Diameter | Number of Conductors | Ratings | Wire Gauge | Shield Type | Jacket (Insulation) Material | Operating Temperature (Min) | Operating Temperature (Max) | Jacket (Insulation) Thickness | Conductor Material | Length | Features | Jacket Color | Cable Type | Conductor Insulation | Voltage | Conductor Strand Gauge | Conductor Strand Count | Shield Coverage | Shield Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 0.432 in | 3 | ISO 10993 UL Style 20952 | 14 AWG | Foil | Polyurethane (PU) | -30 °C | 105 °C | 0.063 in | Copper Tinned | 100 ft | Biological Compatibility Drain Wire Rip Cord | Black | Conductor Multi | Poly-Vinyl Chloride (PVC) | 600 V | 30 | 41 | 100 % | Aluminum |
 ALPHA WIRE | 0.432 in | 3 | ISO 10993 UL Style 20952 | 14 AWG | Foil | Polyurethane (PU) | -30 °C | 105 °C | 0.063 in | Copper Tinned | 1000 ft | Biological Compatibility Drain Wire Rip Cord | Slate | Conductor Multi | Poly-Vinyl Chloride (PVC) | 600 V | 30 | 41 | 100 % | Aluminum |
