1971876 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PTL 3X3 PLUG HSG STD TEMP KEY D YEL

Part	Note	Contact Type	Number of Rows	Mounting Type	Connector Type	Fastening Type	Number of Positions	Color	Operating Temperature (Min)	Operating Temperature (Max)	Row Spacing	Contact Termination	Insulation Material	Pitch
TE Connectivity AMP Connectors 4-1971876-3	Contacts Not Included	Female Blade Socket	3	Free Hanging (In-Line)	Plug	Latch Holder	9	Yellow	-55 °C	105 °C	0.319 in	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	0.236 in

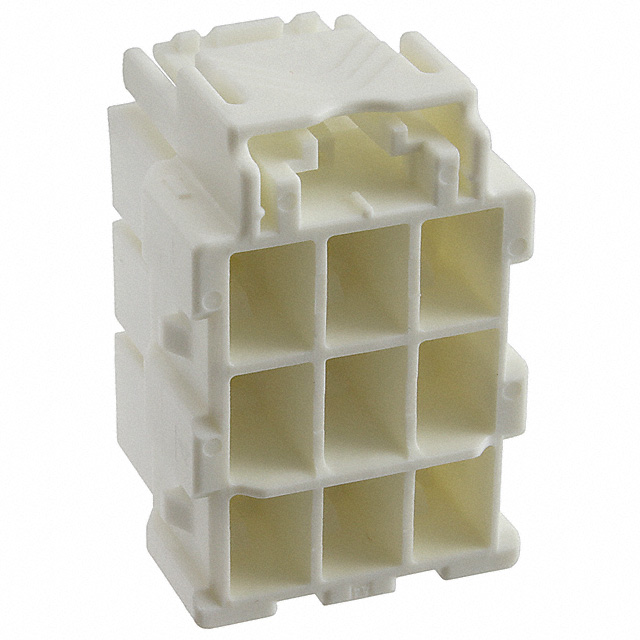

TE Connectivity AMP Connectors 1-1971876-3	Contacts Not Included	Female Blade Socket	3	Free Hanging (In-Line)	Plug	Latch Holder	9	Natural	-55 °C	105 °C	0.319 in	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	0.236 in

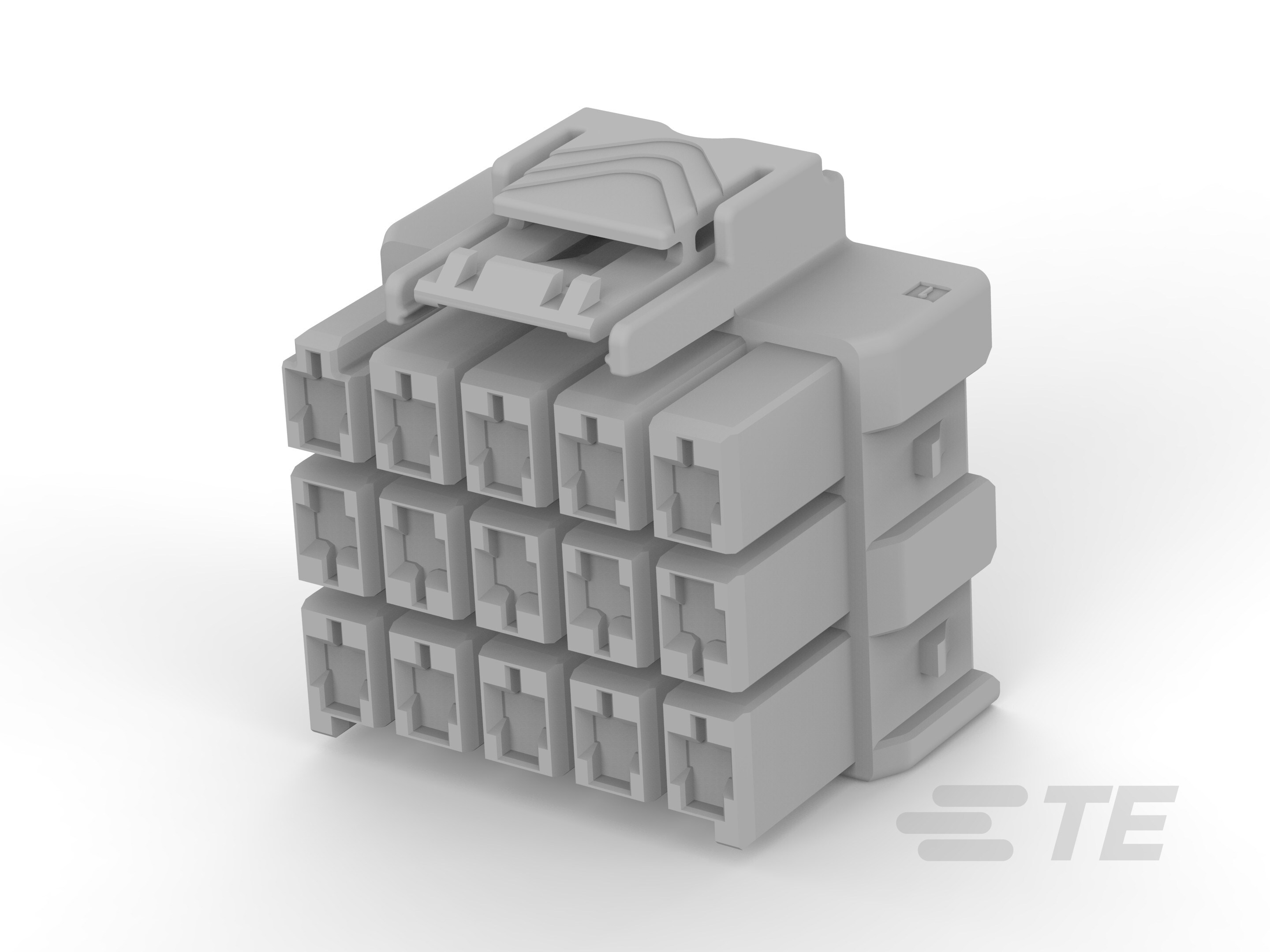

TE Connectivity AMP Connectors 5-1971876-7	Contacts Not Included	Female Blade Socket	3	Free Hanging (In-Line)	Plug	Latch Holder	15	Gray	-55 °C	150 °C	0.319 in	Crimp	Nylon Polyamide (PA)	0.236 in
TE Connectivity AMP Connectors 3-1971876-7	Contacts Not Included	Female Blade Socket	3	Free Hanging (In-Line)	Plug	Latch Holder	15	Blue	-55 °C	105 °C	0.319 in	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	0.236 in

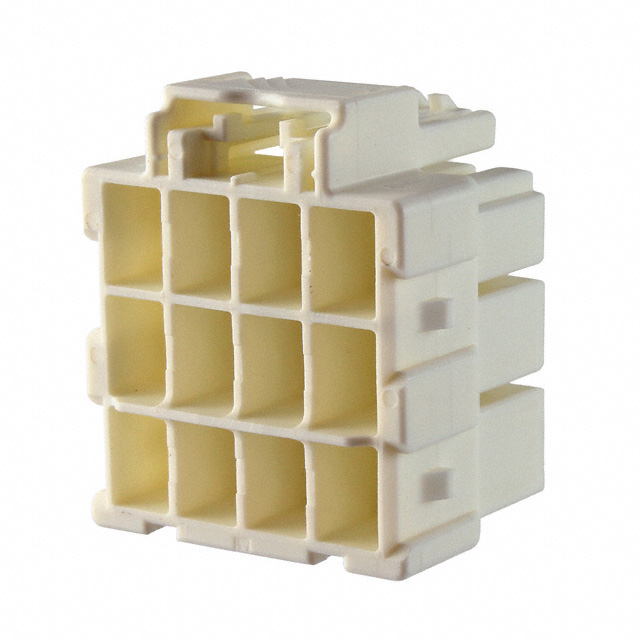

TE Connectivity AMP Connectors 1-1971876-4	Contacts Not Included	Female Blade Socket	3	Free Hanging (In-Line)	Plug	Latch Holder	12	Natural	-55 °C	105 °C	0.319 in	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	0.236 in
TE Connectivity AMP Connectors 6-1971876-3	Contacts Not Included	Female Blade Socket	3	Free Hanging (In-Line)	Plug	Latch Holder	9	Red	-55 °C	150 °C	0.319 in	Crimp	Nylon Polyamide (PA)	0.236 in
TE Connectivity AMP Connectors 4-1971876-7	Contacts Not Included	Female Blade Socket	3	Free Hanging (In-Line)	Plug	Latch Holder	15	Yellow	-55 °C	105 °C	0.319 in	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	0.236 in
TE Connectivity AMP Connectors 2-1971876-7	Contacts Not Included	Female Blade Socket	3	Free Hanging (In-Line)	Plug	Latch Holder	15	Purple	-55 °C	105 °C	0.319 in	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	0.236 in
TE Connectivity AMP Connectors 2-1971876-3	Contacts Not Included	Female Blade Socket	3	Free Hanging (In-Line)	Plug	Latch Holder	9	Purple	-55 °C	105 °C	0.319 in	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	0.236 in
TE Connectivity AMP Connectors 7-1971876-3	Contacts Not Included	Female Blade Socket	3	Free Hanging (In-Line)	Plug	Latch Holder	9	Black	-55 °C	150 °C	0.319 in	Crimp	Nylon Polyamide (PA)	0.236 in
