5767061 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

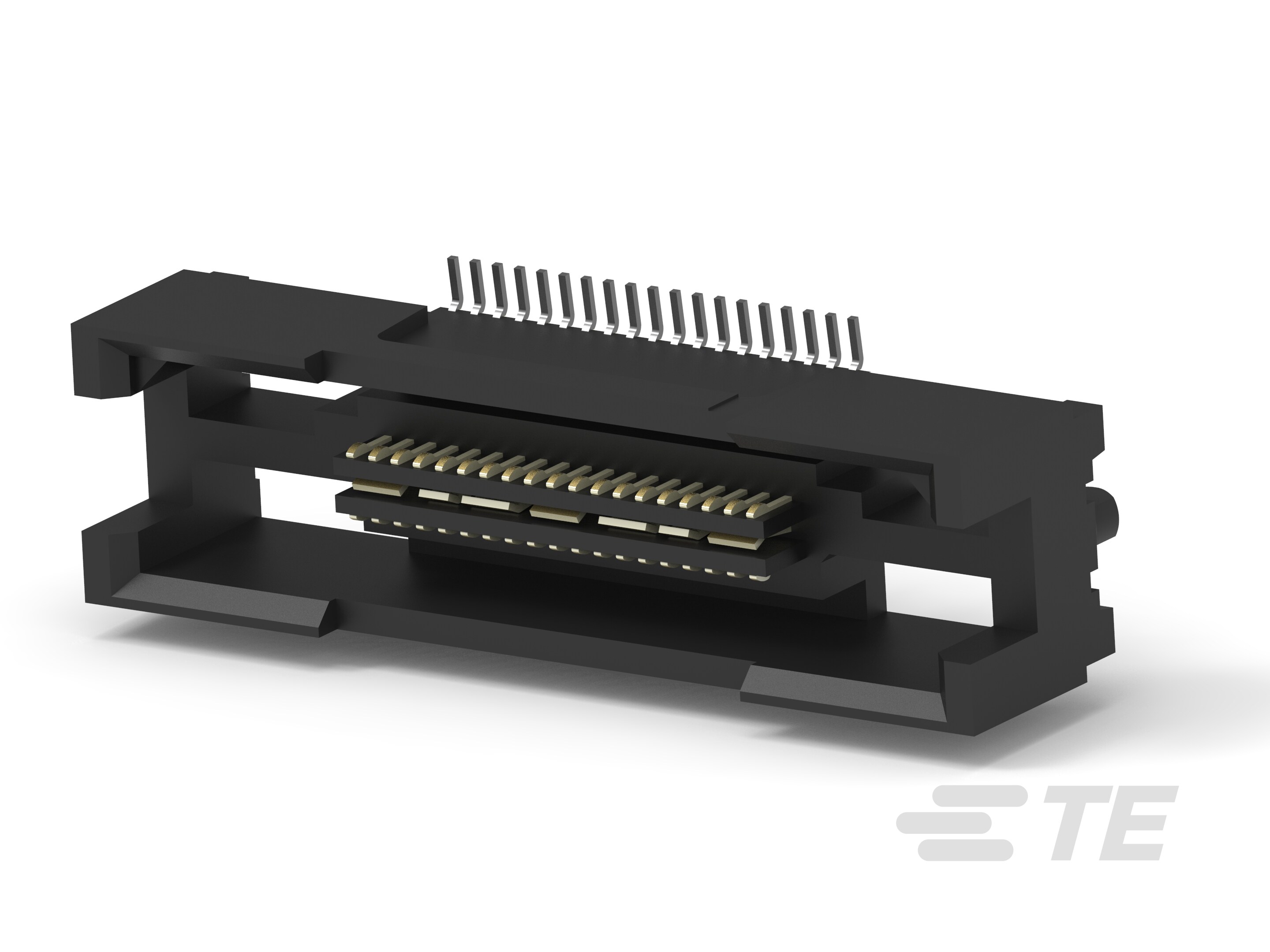

CONN RCPT 190P SMD PALLAD-NICKEL
| Part | Connector Type | Number of Rows | Features | Pitch | Number of Positions | Contact Finish Thickness | Mounting Type | Height Above Board | Mated Stacking Height Options | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Center Strip Contacts Receptacle | 2 | Board Guide Ground Bus (Plane) | 0.025 in | 190 | 30 µin | Surface Mount | 0.236 in | 10.92mm 12.57mm 17.96mm 18.75mm 20mm 22.86mm 6.6mm 9mm | Palladium-Nickel |
TE Connectivity AMP Connectors | Center Strip Contacts Receptacle | 2 | Board Guide Ground Bus (Plane) | 0.025 in | 76 | 30 µin | Surface Mount | 0.236 in | 10.92mm 12.57mm 17.96mm 18.75mm 20mm 22.86mm 6.6mm 9mm | Palladium-Nickel |
 TE Connectivity AMP Connectors | Center Strip Contacts Receptacle | 2 | Board Guide Ground Bus (Plane) | 0.025 in | 38 | 30 µin | Surface Mount | 0.236 in | 10.92mm 12.57mm 17.96mm 18.75mm 20mm 22.86mm 6.6mm 9mm | Palladium-Nickel |
TE Connectivity AMP Connectors | Center Strip Contacts Receptacle | 2 | Board Guide Ground Bus (Plane) | 0.025 in | 114 | 30 µin | Surface Mount | 0.236 in | 10.92mm 12.57mm 17.96mm 18.75mm 20mm 22.86mm 6.6mm 9mm | Palladium-Nickel |
