A1DXH Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

IDC CABLE - AKR24H/AE24M/X

Part	Number of Positions	Length [x]	Length [x]	Pitch - Cable	Pitch - Cable	Contact Finish	Features	Contact Finish Thickness	Contact Finish Thickness	Shielding	Number of Rows	Connector Type	Color	Cable Termination	Pitch - Connector	Pitch - Connector
TE Connectivity Raychem Cable Protection A1DXH-2436M	24	3 ft	914.4 mm	0.05 "	1.27 mm	Gold	Polarizing Key Strain Relief	15 µin	0.38 µm	Unshielded	2	Socket to Cable	Multiple Ribbon	IDC	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection A1DXH-6036G	60	3 ft	914.4 mm	0.05 "	1.27 mm	Gold	Polarizing Key Strain Relief	15 µin	0.38 µm	Unshielded	2	Socket to Cable		IDC	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection A1DXH-4436G	44	3 ft	914.4 mm	0.05 "	1.27 mm	Gold	Polarizing Key Strain Relief	15 µin	0.38 µm	Unshielded	2	Socket to Cable		IDC	0.1 in	2.54 mm

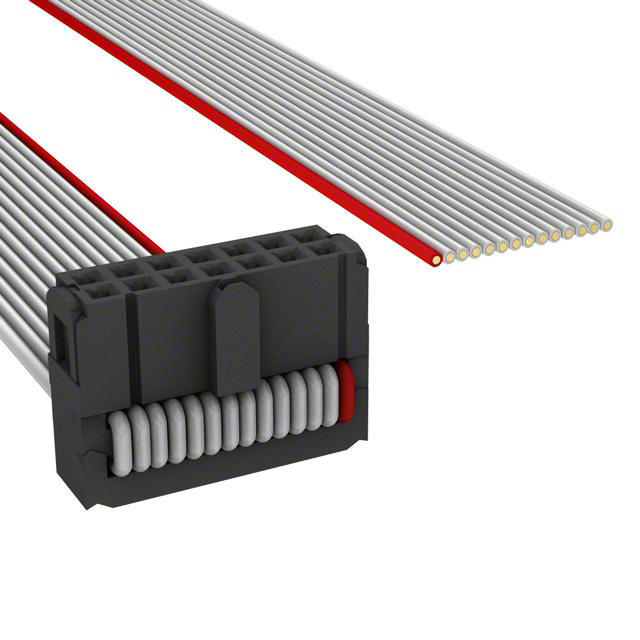

TE Connectivity Raychem Cable Protection A1DXH-1436G	14	3 ft	914.4 mm	0.05 "	1.27 mm	Gold	Polarizing Key Strain Relief	15 µin	0.38 µm	Unshielded	2	Socket to Cable		IDC	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection A1DXH-3036G	30	3 ft	914.4 mm	0.05 "	1.27 mm	Gold	Polarizing Key Strain Relief	15 µin	0.38 µm	Unshielded	2	Socket to Cable		IDC	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection A1DXH-1036M	10	3 ft	914.4 mm	0.05 "	1.27 mm	Gold	Polarizing Key Strain Relief	15 µin	0.38 µm	Unshielded	2	Socket to Cable	Multiple Ribbon	IDC	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection A1DXH-1036G	10	3 ft	914.4 mm	0.05 "	1.27 mm	Gold	Polarizing Key Strain Relief	15 µin	0.38 µm	Unshielded	2	Socket to Cable		IDC	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection A1DXH-3436M	34	3 ft	914.4 mm	0.05 "	1.27 mm	Gold	Polarizing Key Strain Relief	15 µin	0.38 µm	Unshielded	2	Socket to Cable	Multiple Ribbon	IDC	0.1 in	2.54 mm

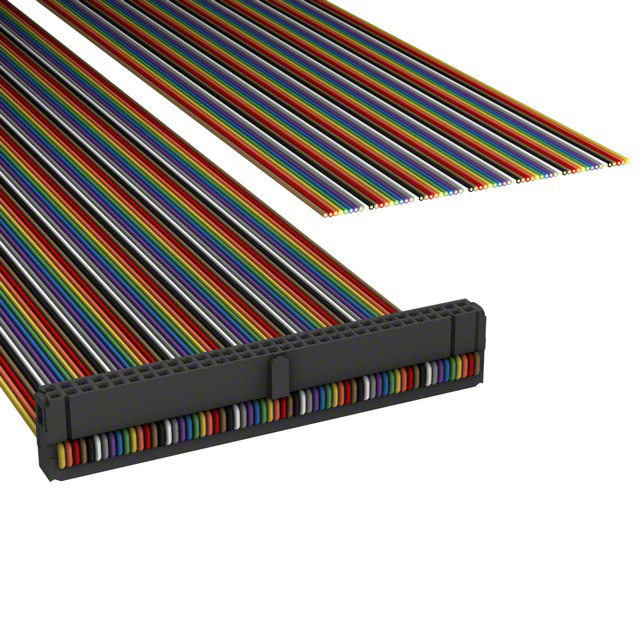

TE Connectivity Raychem Cable Protection A1DXH-6436M	64	3 ft	914.4 mm	0.05 "	1.27 mm	Gold	Polarizing Key Strain Relief	15 µin	0.38 µm	Unshielded	2	Socket to Cable	Multiple Ribbon	IDC	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection A1DXH-5036M	50	3 ft	914.4 mm	0.05 "	1.27 mm	Gold	Polarizing Key Strain Relief	15 µin	0.38 µm	Unshielded	2	Socket to Cable	Multiple Ribbon	IDC	0.1 in	2.54 mm
