DCNLM200NB24-01 Series

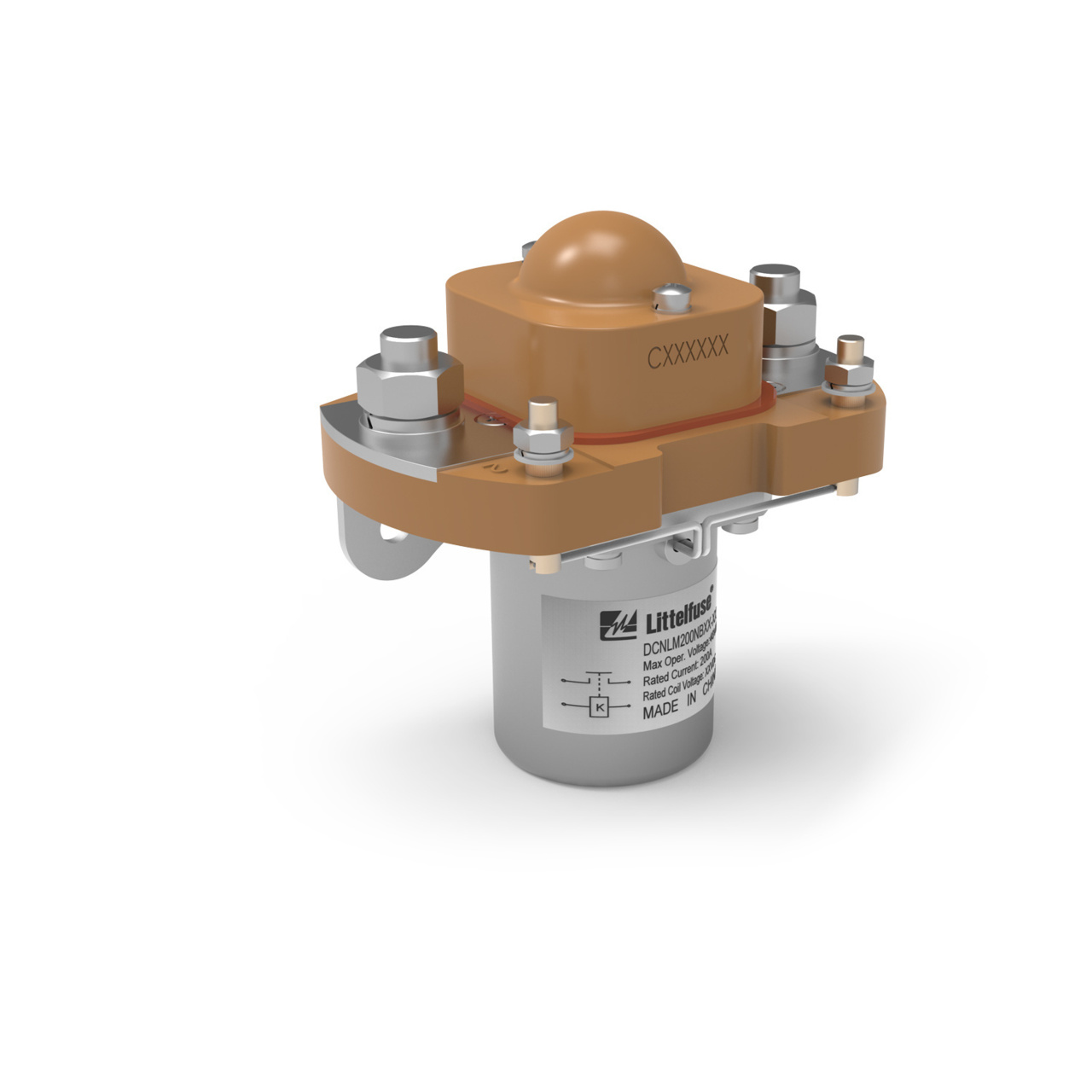

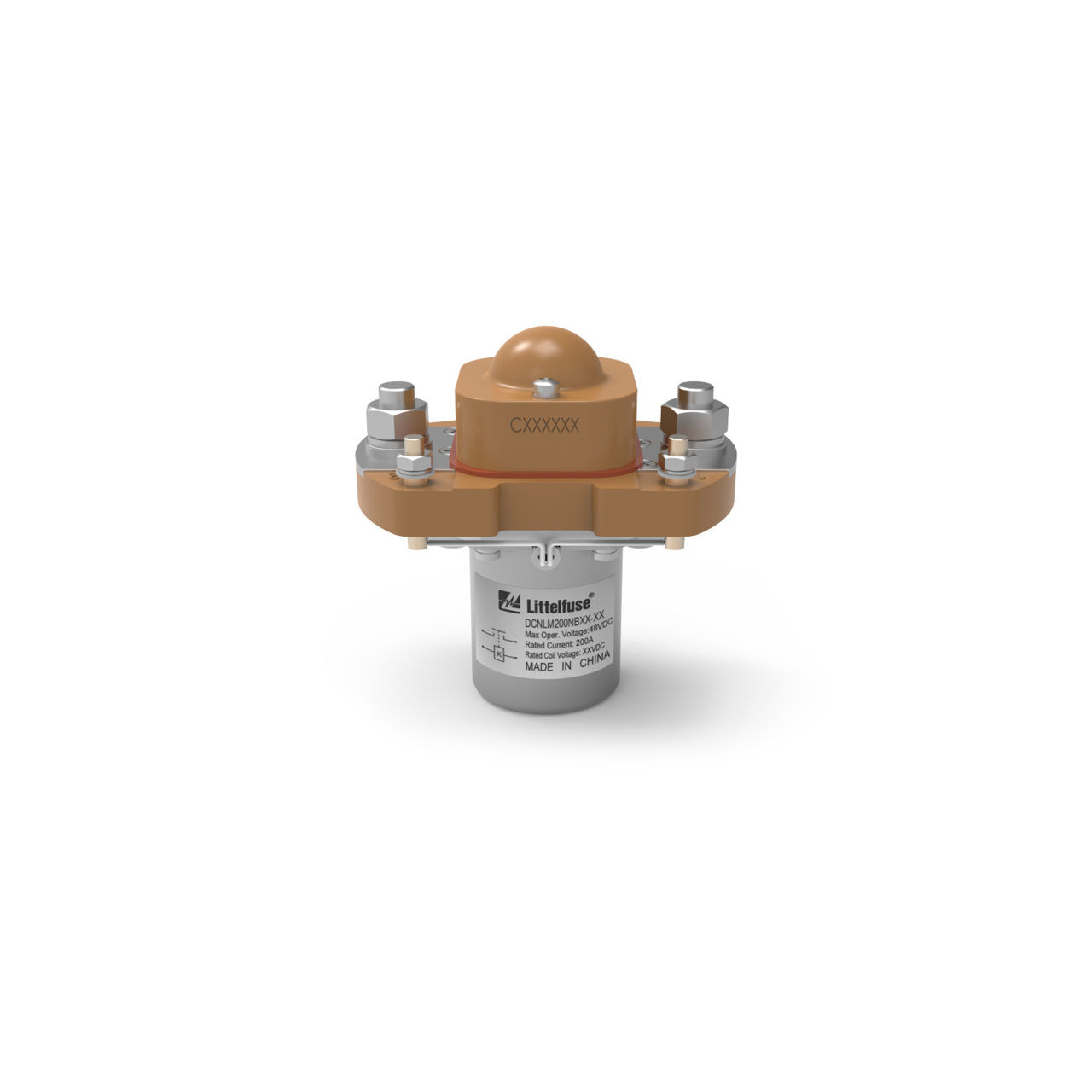

DCNLM 200A 48V NP NO 24V 1Coil Contactor

Catalog

DCNLM 200A 48V NP NO 24V 1Coil Contactor

Part	Must Operate Voltage	Contact Rating (Current)	Switching Voltage DC (Max)	Mounting Type	Termination Style	Form A Count	Contact Form	Operating Temperature (Min)	Operating Temperature (Max)	Coil Voltage	Must Release Voltage
LITTELFUSE DCNLM200NB24-01	16.8 VDC	200 A	60 VDC	Chassis Mount	Stud	1	SPST-NO	-40 °C	70 °C	24 VDC	2 VDC

Catalog

DCNLM 200A 48V NP NO 24V 1Coil Contactor

Description

The DCNLM Series 60V High-Current DC Contactor Relay features 200A contact switching capability with a 24V coil rating, which is suitable for a wide variety of applications, including use in electrical control systems, communication power supplies, engineering machines, and uninterruptible power supplies (UPS).This configuration of the DCNLM normally open, high-current DC contactor (DCNLM200NB24-01) features 60V non-polarized main contacts and a single-coil design.
