331677 Series

Catalog

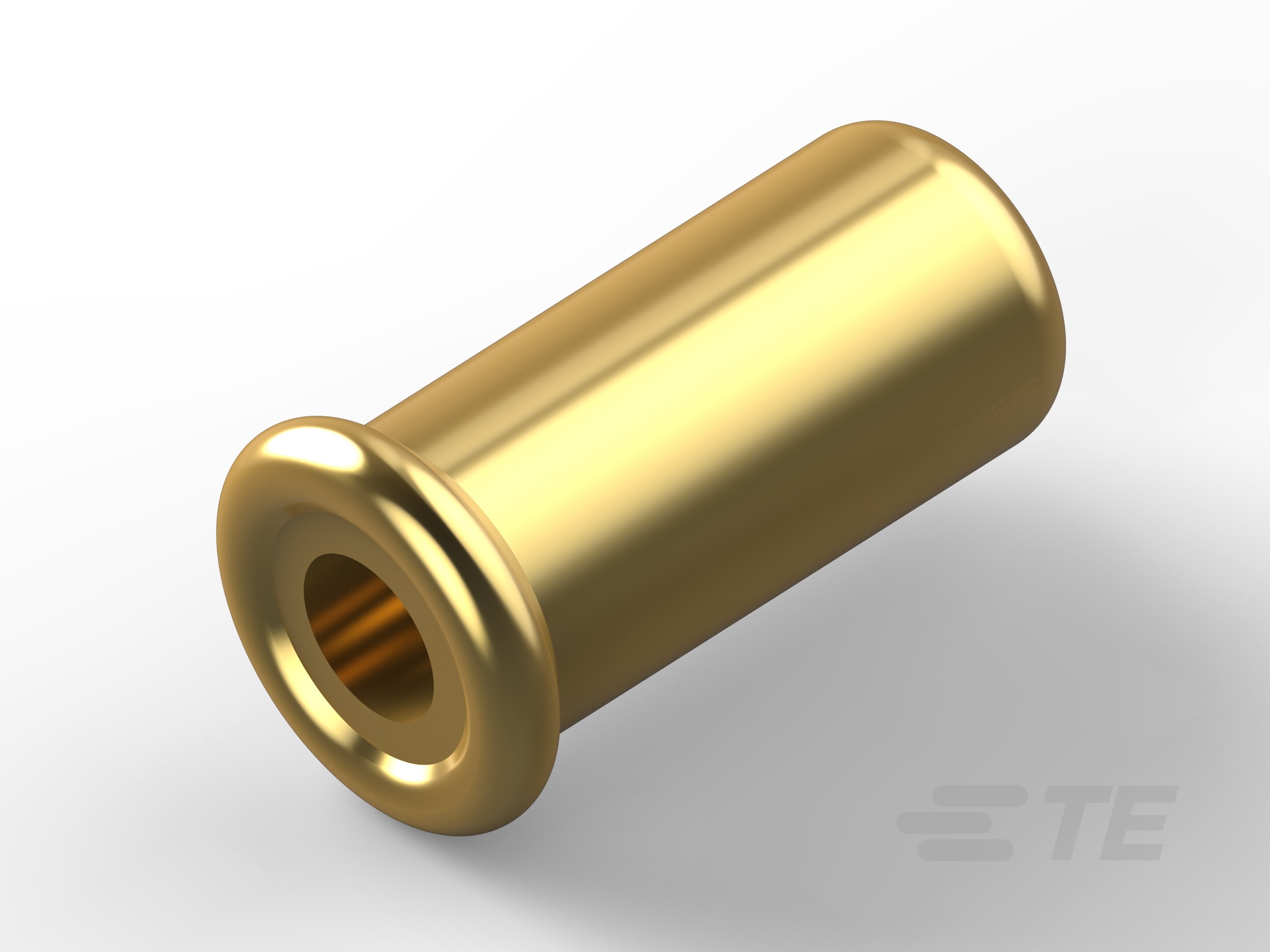

CONN PIN RCPT .026-.029 SOLDER

Part	Operating Temperature (Max)	Operating Temperature (Min)	Features	Contact Finish Thickness	Contact Finish	Length - Overall	Mounting Hole Diameter (Max)	Mounting Hole Diameter (Min)	Accepts Pin Diameter (Min)	Accepts Pin Diameter (Max)	Contact Material	Termination	Tail Type	Socket Depth	Flange Diameter
TE Connectivity AMP Connectors 1-331677-1	125 °C	-65 °C	Closed Bottom	30 µin	Gold	0.138 in	0.063 in	0.062 in	0.026 in	0.029 in	Beryllium Copper	Solder	No Tail	0.125 in	0.08 in
TE Connectivity AMP Connectors 3-331677-4	125 °C	-65 °C	Knockout Bottom	30 µin	Gold	0.138 in	0.063 in	0.062 in	0.03 in	0.033 in	Beryllium Copper	Solder	No Tail	0.125 in	0.08 in
TE Connectivity AMP Connectors 1-331677-8	125 °C	-65 °C	Closed Bottom	30 µin	Gold	0.138 in	0.063 in	0.062 in	0.03 in	0.033 in	Beryllium Copper	Solder	No Tail	0.125 in	0.08 in
TE Connectivity AMP Connectors 1-331677-0	125 °C	-65 °C	Closed Bottom	100 µin	Tin	0.138 in	0.063 in	0.062 in	0.026 in	0.029 in	Beryllium Copper	Solder	No Tail	0.125 in	0.08 in
TE Connectivity AMP Connectors 1-331677-4	125 °C	-65 °C	Closed Bottom	30 µin	Gold	0.138 in	0.063 in	0.062 in	0.03 in	0.033 in	Beryllium Copper	Solder	No Tail	0.125 in	0.08 in
TE Connectivity AMP Connectors 1-331677-6	125 °C	-65 °C	Closed Bottom	100 µin	Tin	0.138 in	0.063 in	0.062 in	0.022 in	0.025 in	Beryllium Copper	Solder	No Tail	0.125 in	0.08 in
