BSW-108 Series

Catalog

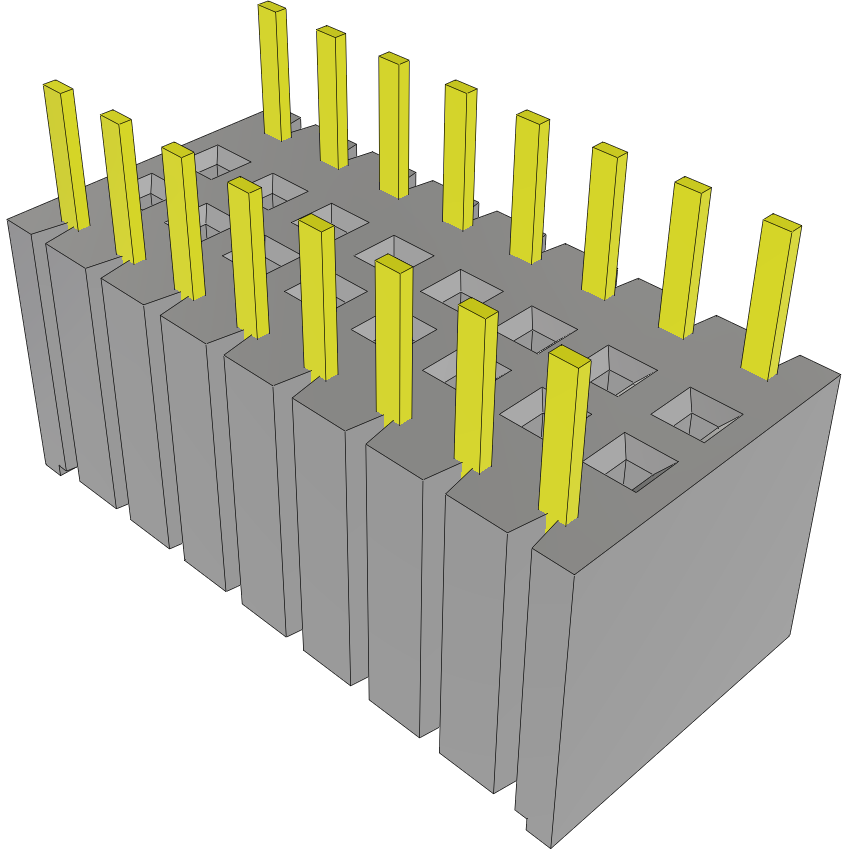

CONN RCPT 16POS 0.1 GOLD PCB

Part	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [custom]	Insulation Height [custom]	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Number of Rows	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Finish - Post	Material Flammability Rating	Connector Type	Insulation Color	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Finish - Mating	Insulation Material	Number of Positions	Number of Positions	Contact Length - Post	Contact Length - Post
Samtec Inc. BSW-108-04-L-D	Square	-55 °C	125 °C	0.35 in	8.89 mm	All	0.165 in	4.19 mm	Phosphor Bronze	2.54 mm	0.1 in	Female Socket	2	0.1 in	2.54 mm	Push-Pull	Tin	UL94 V-0	Breakaway Receptacle	Black	Bottom Mount Through Hole	10 çin	0.25 çm	Solder	Gold	Polyethylene Terephthalate (PET) Glass Filled	16
Samtec Inc. BSW-108-24-S-D	Square	-55 °C	125 °C	0.35 in	8.89 mm	All	0.165 in	4.19 mm	Phosphor Bronze	2.54 mm	0.1 in	Female Socket	2	0.1 in	2.54 mm	Push-Pull	Tin	UL94 V-0	Breakaway Receptacle	Black	Bottom Mount Through Hole	30 Áin	0.76 Ám	Solder	Gold	Polyethylene Terephthalate (PET) Glass Filled	16
Samtec Inc. BSW-108-04-T-D	Square	-55 °C	105 ░C	0.35 in	8.89 mm	All	0.165 in	4.19 mm	Phosphor Bronze	2.54 mm	0.1 in	Female Socket	2	0.1 in	2.54 mm	Push-Pull	Tin	UL94 V-0	Breakaway Receptacle	Black	Bottom Mount Through Hole			Solder		Polyethylene Terephthalate (PET) Glass Filled	16
Samtec Inc. BSW-108-04-G-S	Square	-55 °C	125 °C	0.35 in	8.89 mm	All			Phosphor Bronze			Female Socket	1	0.1 in	2.54 mm	Push-Pull	Tin	UL94 V-0	Breakaway Receptacle	Black	Bottom Mount Through Hole	20 µin	0.51 µm	Solder	Gold	Polyethylene Terephthalate (PET) Glass Filled		8	4.32 mm	0.17 in
Samtec Inc. BSW-108-04-S-D	Square	-55 °C	125 °C	0.35 in	8.89 mm	All	0.165 in	4.19 mm	Phosphor Bronze	2.54 mm	0.1 in	Female Socket	2	0.1 in	2.54 mm	Push-Pull	Tin	UL94 V-0	Breakaway Receptacle	Black	Bottom Mount Through Hole	30 Áin	0.76 Ám	Solder	Gold	Polyethylene Terephthalate (PET) Glass Filled	16
Samtec Inc. BSW-108-04-G-M	Square	-55 °C	125 °C	0.35 in	8.89 mm	All	0.125 in	3.18 mm	Phosphor Bronze			Female Socket	1	0.1 in	2.54 mm	Push-Pull	Tin	UL94 V-0	Breakaway Receptacle	Black	Bottom Mount Through Hole	20 µin	0.51 µm	Solder	Gold	Polyethylene Terephthalate (PET) Glass Filled		8
Samtec Inc. BSW-108-24-L-S	Square	-55 °C	125 °C	0.35 in	8.89 mm	All			Phosphor Bronze			Female Socket	1	0.1 in	2.54 mm	Push-Pull	Tin	UL94 V-0	Breakaway Receptacle	Black	Bottom Mount Through Hole	10 çin	0.25 çm	Solder	Gold	Polyethylene Terephthalate (PET) Glass Filled		8	4.32 mm	0.17 in
Samtec Inc. BSW-108-24-S-S	Square	-55 °C	125 °C	0.35 in	8.89 mm	All			Phosphor Bronze			Female Socket	1	0.1 in	2.54 mm	Push-Pull	Tin	UL94 V-0	Breakaway Receptacle	Black	Bottom Mount Through Hole	30 Áin	0.76 Ám	Solder	Gold	Polyethylene Terephthalate (PET) Glass Filled		8	4.32 mm	0.17 in
Samtec Inc. BSW-108-24-L-D	Square	-55 °C	125 °C	0.35 in	8.89 mm	All	0.165 in	4.19 mm	Phosphor Bronze	2.54 mm	0.1 in	Female Socket	2	0.1 in	2.54 mm	Push-Pull	Tin	UL94 V-0	Breakaway Receptacle	Black	Bottom Mount Through Hole	10 çin	0.25 çm	Solder	Gold	Polyethylene Terephthalate (PET) Glass Filled	16
