413631 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

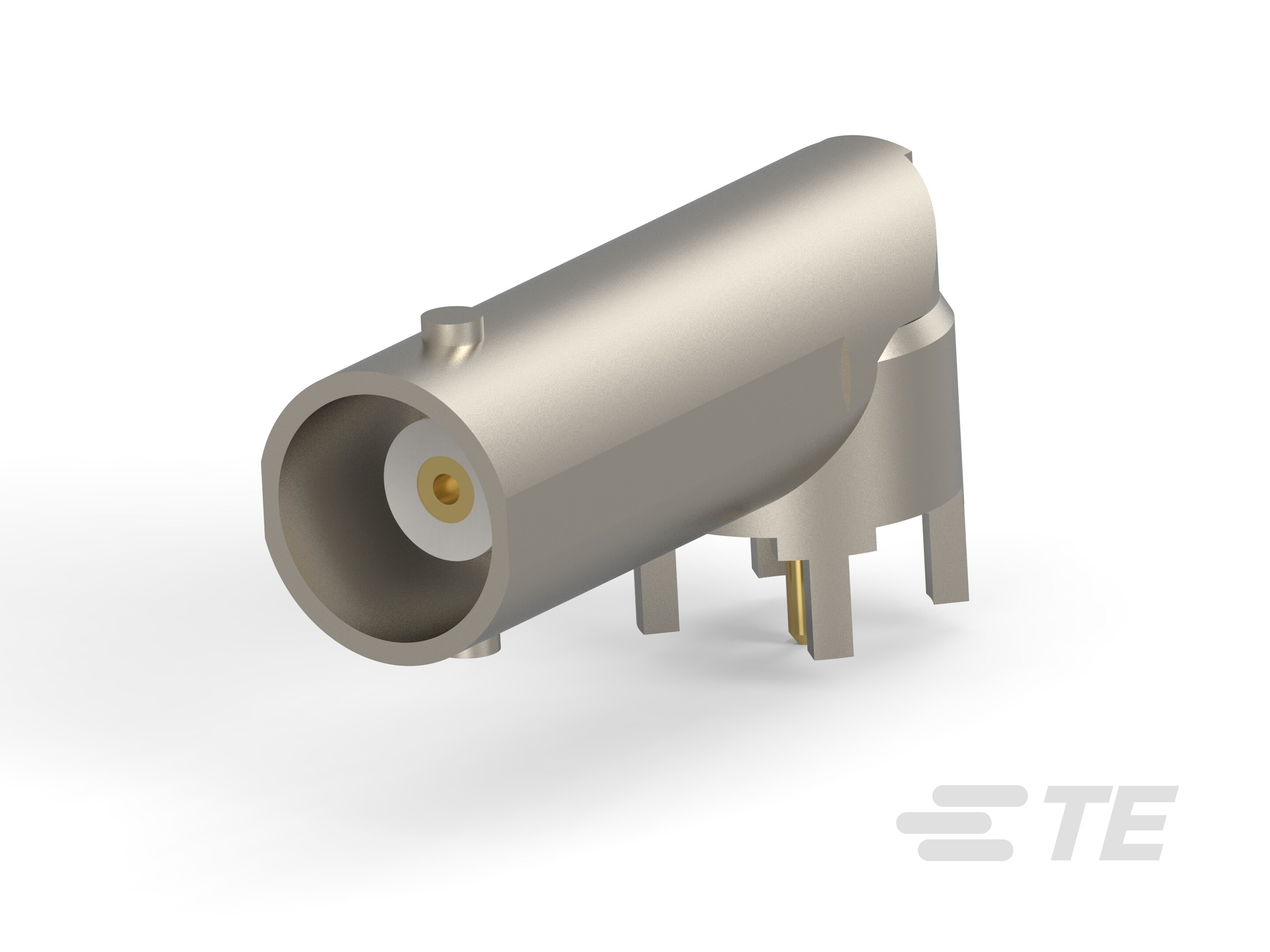

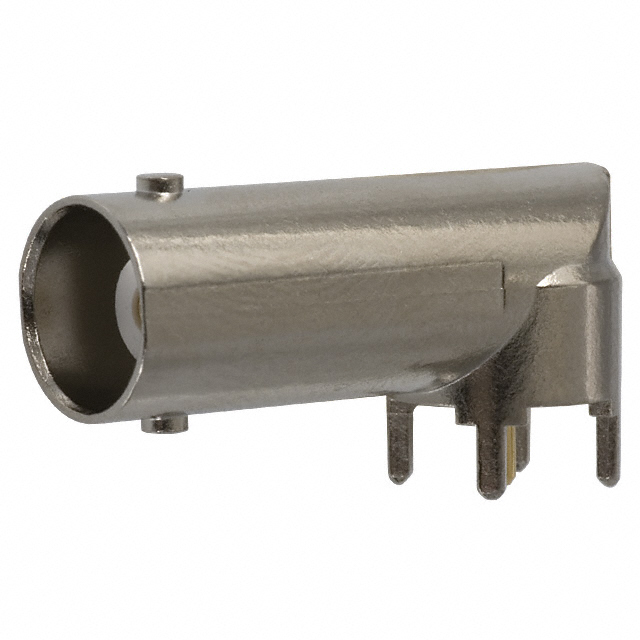

CONN BNC JACK R/A 50 OHM PCB
| Part | Center Contact Material | Connector Style | Impedance | Contact Termination | Connector Type | Fastening Type | Shield Termination | Mounting Type | Number of Ports | Housing Color | Frequency - Max | Dielectric Material | Center Contact Plating | Body Material | Voltage Rating | Operating Temperature (Min) | Operating Temperature (Max) | Mating Cycles | Body Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Beryllium Copper | BNC | 50 Ohm | Solder | Female Socket Jack | Bayonet Lock | Solder | Right Angle Through Hole | 1 | Silver | 4 GHz | Polymethylpentene (PMP) | Gold | Zinc | 500 V | -55 °C | 85 °C | 500 cycles | Nickel |
 TE Connectivity AMP Connectors | Beryllium Copper | BNC | 50 Ohm | Solder | Female Socket Jack | Bayonet Lock | Solder | Right Angle Through Hole | 1 | Silver | 4 GHz | Polymethylpentene (PMP) | Gold | Zinc | 500 V | -55 °C | 85 °C | 500 cycles | Nickel |
 TE Connectivity AMP Connectors | Beryllium Copper | BNC | 50 Ohm | Solder | Female Socket Jack | Bayonet Lock | Solder | Right Angle Through Hole | 1 | Silver | 4 GHz | Polytetrafluoroethylene (PTFE) | Gold | Zinc | 500 V | -55 °C | 85 °C | 500 cycles | Tin-Lead |
