IXA4I1200 Series
Manufacturer: LITTELFUSE
Beta
⌘K
DISC IGBT XPT-GENX3 TO-252D/ P
| Part | Package Name | Td (off) @ 25°C | Td (on) @ 25°C | Power - Max | Current - Collector (Ic) (Max) | Switching Energy (On) | Switching Energy (Off) | Voltage - Collector Emitter Breakdown (Max) | Gate Charge | Vce(on) (Max) | IGBT Type | Input Type | Test Condition Voltage (Secondary) | Test Condition Resistance | Test Condition Current | Test Condition Voltage | Package / Case | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

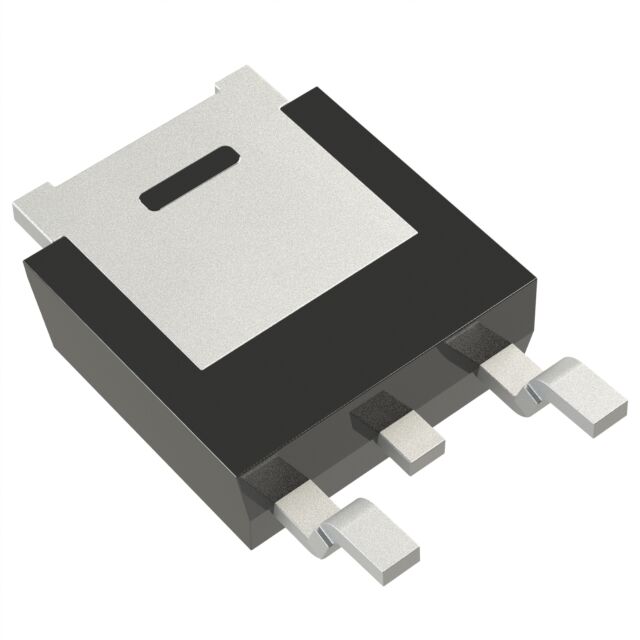

 LITTELFUSE | TO-252AA | 250 ns | 70 ns | 45 W | 9 A | 400 µJ | 300 µJ | 1200 V | 12 nC | 2.1 V | PT | Standard | 15 V | 330 Ohm | 3 A | 600 V | DPAK (2 Leads + Tab) SC-63 TO-252-3 | Surface Mount | ||
LITTELFUSE | TO-252AA | 45 W | 9 A | 400 µJ | 300 µJ | 1200 V | 12 nC | 2.1 V | PT | Standard | 15 V | 330 Ohm | 3 A | 600 V | DPAK (2 Leads + Tab) SC-63 TO-252-3 | Surface Mount | -40 °C | 150 °C |
