844008I-46 Series

FemtoClock Crystal-to-LVDS Clock Generator

Manufacturer: Renesas Electronics Corporation

Catalog

FemtoClock Crystal-to-LVDS Clock Generator

Part	Type	Package / Case	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Frequency - Max	Number of Circuits	Operating Temperature (Min)	Operating Temperature (Max)	PLL	Differential Output	Differential Input	Mounting Type	Input	Input Ratio	Output Ratio	Multiplier	Divider	Package Length	Package Name	Package Width	Output
Renesas Electronics Corporation 844008AKI-46LF	Clock/Frequency Synthesizer Fanout Distribution	32-VFQFN Exposed Pad	2.625 V	2.375 V	156.25 MHz	1	-40 °C	85 °C	Yes	Yes	No	Surface Mount	Crystal	1	8	No	Yes	5 mm	32-VFQFPN	5 mm	LVDS

Catalog

FemtoClock Crystal-to-LVDS Clock Generator

Description

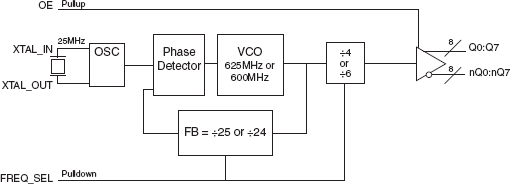

The 844008I-46 is a 10Gb Ethernet clock generator that can synthesize 156.25MHz or 100MHz with a 25MHz crystal. It has a total of 8 LVDS outputs. The 844008I-46 has excellent phase jitter performance and is packaged in a 32 Lead VFQFN package, making it ideal for use in systems with limited board space.
