3220 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN RING CIRC 4AWG #1/4 CRIMP

Part	Material - Insulation	Insulation Diameter	Contact Finish	Terminal Type	Contact Material	Mounting Type	Length - Overall	Color	Width - Outer Edges	Insulation	Termination	Stud/Tab Size	Features	Wire Gauge	Thickness	Stud/Tab Size (Type)	Stud/Tab Size	Temperature Coefficient	Accuracy	RTD Material	Package / Case	Operating Temperature (Min)	Operating Temperature (Max)	Resistance Tolerance (%)	Resistance
TE Connectivity AMP Connectors 322053	Vinyl	0.436 in	Tin	Circular	Copper	Free Hanging (In-Line)	1.908 in	Yellow	0.546 in	Insulated	Crimp	0.25 Stud	Serrated Termination	4 AWG	0.048 in
TE Connectivity AMP Connectors 322048	Vinyl	0.298 in	Tin	Circular	Copper	Free Hanging (In-Line)	1.586 in	Red	0.478 in	Insulated	Crimp	10 Stud	Serrated Termination	8 AWG	0.04 in
TE Connectivity AMP Connectors 322010	Vinyl	0.436 in	Tin	Circular	Copper	Free Hanging (In-Line)	1.974 in	Yellow	0.679 in	Insulated	Crimp	0.3125 in	Serrated Termination	4 AWG	0.048 in	Stud	16 Stud 5 Stud
TE Connectivity AMP Connectors 322089	Vinyl	0.684 in	Tin	Circular	Copper	Free Hanging (In-Line)	2.54 in	Yellow	0.926 in	Insulated	Crimp	0.3125 in	Serrated Termination	2/0 AWG	0.08 in	Stud	16 Stud 5 Stud
TE Connectivity AMP Connectors 322003	Vinyl	0.298 in	Tin	Circular	Copper	Free Hanging (In-Line)	1.702 in	Red	0.587 in	Insulated	Crimp	0.3125 in	Serrated Termination	8 AWG	0.04 in	Stud	16 Stud 5 Stud
TE Connectivity AMP Connectors 322004	Vinyl	0.298 in	Tin	Circular	Copper	Free Hanging (In-Line)	1.702 in	Red	0.587 in	Insulated	Crimp	0.375 in	Serrated Termination	8 AWG	0.04 in		3 Stud 8 Stud
TE Connectivity AMP Connectors 322092	Vinyl	0.684 in	Tin	Circular	Copper	Free Hanging (In-Line)	2.54 in	Yellow	0.926 in	Insulated	Crimp	0.5 Stud	Serrated Termination	2/0 AWG	0.08 in
TE Connectivity AMP Connectors 322009	Vinyl	0.436 in	Tin	Circular	Copper	Free Hanging (In-Line)	1.974 in	Yellow	0.679 in	Insulated	Crimp	10 Stud	Serrated Termination	4 AWG	0.048 in

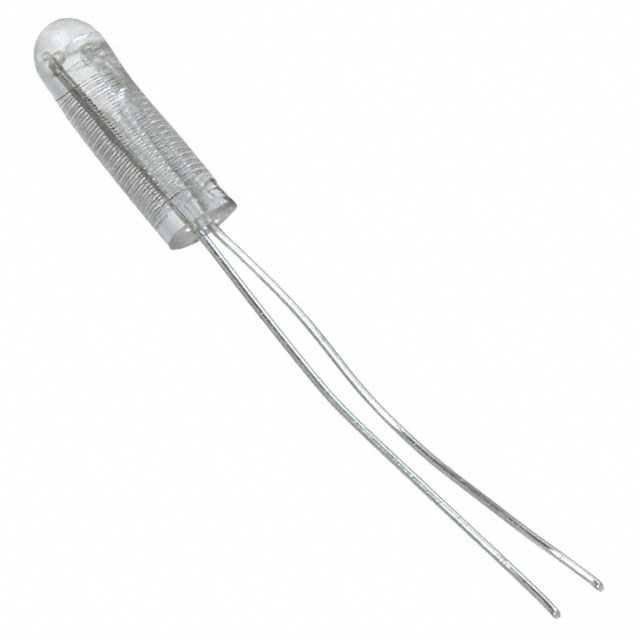

TE Connectivity AMP Connectors 32205074						Free Hanging					Wire Leads							3850 ppm/°C	0.15 °C	Platinum (Pt)	Cylindrical Probe Glass	-100 °C	250 °C	0.15 %	100 Ohms
TE Connectivity AMP Connectors 322052	Vinyl	0.436 in	Tin	Circular	Copper	Free Hanging (In-Line)	1.908 in	Yellow	0.546 in	Insulated	Crimp	10 Stud	Serrated Termination	4 AWG	0.048 in
