AD9625 Series

12-Bit, 2.6 GSPS/2.5 GSPS/2.0 GSPS, 1.3 V/2.5 V Analog-to-Digital Converter

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

12-Bit, 2.6 GSPS/2.5 GSPS/2.0 GSPS, 1.3 V/2.5 V Analog-to-Digital Converter

Part	Sampling Rate (Per Second)	Architecture	Package Name	Package Width	Package Length	Package / Case	Ratio - ADC	Ratio - S/H	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Data Interface	Number of A/D Converters	Input Type	Number of Bits	Configuration	Voltage - Supply, Analog (Range 1 Max)	Voltage - Supply, Analog (Range 1 Min)	Voltage - Supply, Analog (Range 2 Min)	Voltage - Supply, Analog (Range 2 Max)	Voltage - Supply, Digital (Range 2) Minimum	Voltage - Supply, Digital (Range 1) Maximum	Voltage - Supply, Digital (Range 1) Minimum	Voltage - Supply, Digital (Range 2) Maximum	Number of Inputs	Reference Type	Supplied Contents	Contents	Power (Typ)	Input Voltage (Value)	Utilized IC / Part
Analog Devices Inc./Maxim Integrated AD9625BBPZRL-2.0	2 GHz	Pipelined	196-BGA-ED	12 mm	12 mm	196-LFBGA Exposed Pad	1	1	-40 °C	85 °C	Surface Mount	JESD204B	1 count	Differential	12 bits	S/H-ADC	1.32 V	1.26 V	2.4 V	2.6 V	2.4 V	1.32 V	1.26 V	2.6 V	1	Internal
Analog Devices Inc./Maxim Integrated AD9625-2.6EB	2.6 GHz											Serial JESD204B SPI™	1 count		12 bits												Board(s)	Board	4 W	1 Vpp	AD9625
Analog Devices Inc./Maxim Integrated AD9625BBPRL-2.6	2.6 GHz	Pipelined	196-BGA-ED	12 mm	12 mm	196-LFBGA Exposed Pad	1	1	-40 °C	85 °C	Surface Mount	JESD204B	1 count	Differential	12 bits	S/H-ADC	1.32 V	1.26 V	2.4 V	2.6 V	2.4 V	1.32 V	1.26 V	2.6 V	1	Internal
Analog Devices Inc./Maxim Integrated AD9625BBPRL-2.5	2.5 GHz	Pipelined	196-BGA-ED	12 mm	12 mm	196-LFBGA Exposed Pad	1	1	-40 °C	85 °C	Surface Mount	JESD204B	1 count	Differential	12 bits	S/H-ADC	1.32 V	1.26 V	2.4 V	2.6 V	2.4 V	1.32 V	1.26 V	2.6 V	1	Internal
Analog Devices Inc./Maxim Integrated AD9625-2.6EBZ	2.6 GHz											Serial JESD204B SPI™	1 count		12 bits												Board(s)	Board	4 W	1 Vpp	AD9625
Analog Devices Inc./Maxim Integrated AD9625BBPZ-2.6	2.6 GHz	Pipelined	196-BGA-ED	12 mm	12 mm	196-LFBGA Exposed Pad	1	1	-40 °C	85 °C	Surface Mount	JESD204B	1 count	Differential	12 bits	S/H-ADC	1.32 V	1.26 V	2.4 V	2.6 V	2.4 V	1.32 V	1.26 V	2.6 V	1	Internal
Analog Devices Inc./Maxim Integrated AD9625BBPZ-2.5	2.5 GHz	Pipelined	196-BGA-ED	12 mm	12 mm	196-LFBGA Exposed Pad	1	1	-40 °C	85 °C	Surface Mount	JESD204B	1 count	Differential	12 bits	S/H-ADC	1.32 V	1.26 V	2.4 V	2.6 V	2.4 V	1.32 V	1.26 V	2.6 V	1	Internal
Analog Devices Inc./Maxim Integrated AD9625BBP-2.5	2.5 GHz	Pipelined	196-BGA-ED	12 mm	12 mm	196-LFBGA Exposed Pad	1	1	-40 °C	85 °C	Surface Mount	JESD204B	1 count	Differential	12 bits	S/H-ADC	1.32 V	1.26 V	2.4 V	2.6 V	2.4 V	1.32 V	1.26 V	2.6 V	1	Internal
Analog Devices Inc./Maxim Integrated AD9625BBPZ-2.0	2 GHz	Pipelined	196-BGA-ED	12 mm	12 mm	196-LFBGA Exposed Pad	1	1	-40 °C	85 °C	Surface Mount	JESD204B	1 count	Differential	12 bits	S/H-ADC	1.32 V	1.26 V	2.4 V	2.6 V	2.4 V	1.32 V	1.26 V	2.6 V	1	Internal
Analog Devices Inc./Maxim Integrated AD9625BBPZRL-2.5	2.5 GHz	Pipelined	196-BGA-ED	12 mm	12 mm	196-LFBGA Exposed Pad	1	1	-40 °C	85 °C	Surface Mount	JESD204B	1 count	Differential	12 bits	S/H-ADC	1.32 V	1.26 V	2.4 V	2.6 V	2.4 V	1.32 V	1.26 V	2.6 V	1	Internal

Catalog

12-Bit, 2.6 GSPS/2.5 GSPS/2.0 GSPS, 1.3 V/2.5 V Analog-to-Digital Converter

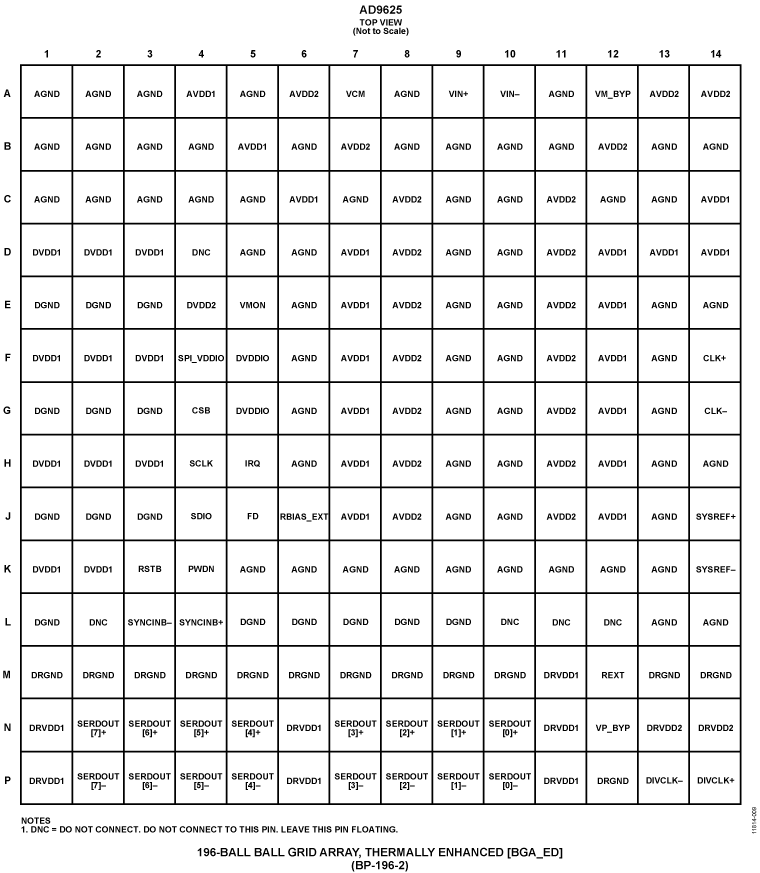

Description

The AD9625 is a 12-bit monolithic sampling analog-to-digital converter (ADC) that operates at conversion rates of up to 2.6 giga samples per second (GSPS). This product is designed for sampling wide bandwidth analog signals up to the second Nyquist zone. The combination of wide input bandwidth, high sampling rate, and excellent linearity of the AD9625 is ideally suited for spectrum analyzers, data acquisition systems, and a wide assortment of military electronics applications, such as radar and jamming/antijamming measures.The analog input, clock, and SYSREF± signals are differential inputs. The JESD204B-based high speed serialized output is configurable in a variety of one-, two-, four-, six-, or eight-lane configurations. The product is specified over the industrial temperature range of −40°C to +85°C.PRODUCT HIGHLIGHTSHigh performance: exceptional SFDR in high sample rate applications, direct RF sampling, and on-chip reference.Flexible digital data output formats based on the JESD204B specification.Control path SPI interface port that supports various product features and functions, such as data formatting, gain, and offset calibration values.APPLICATIONSSpectrum analyzersMilitary communicationsRadarHigh performance digital storage oscilloscopesActive jamming/antijammingElectronic surveillance and countermeasures
