233P-1.5-ENCL Series

1-PHASE PUMPSAVERPLUS / 230V

Catalog

1-PHASE PUMPSAVERPLUS / 230V

Part	Trip Status	Voltage - Supply	Type	Contact Rating (Current)	Delay Time Mode	Delay Time (Maximum)	Delay Time (Fixed)	Delay Time (Minimum)	Circuit	Mounting Type	Trip Voltage (Max)	Trip Voltage (Min)	Output Type
LITTELFUSE 233P-1.5-ENCL	Energized High Low	230 VAC	Voltage Sensing AC	10 A	Fixed	5 Sec	4 Sec	4 Sec	SPST-NO (1 Form A)	Chassis Mount	265 V	190 V	Relay

Catalog

1-PHASE PUMPSAVERPLUS / 230V

Description

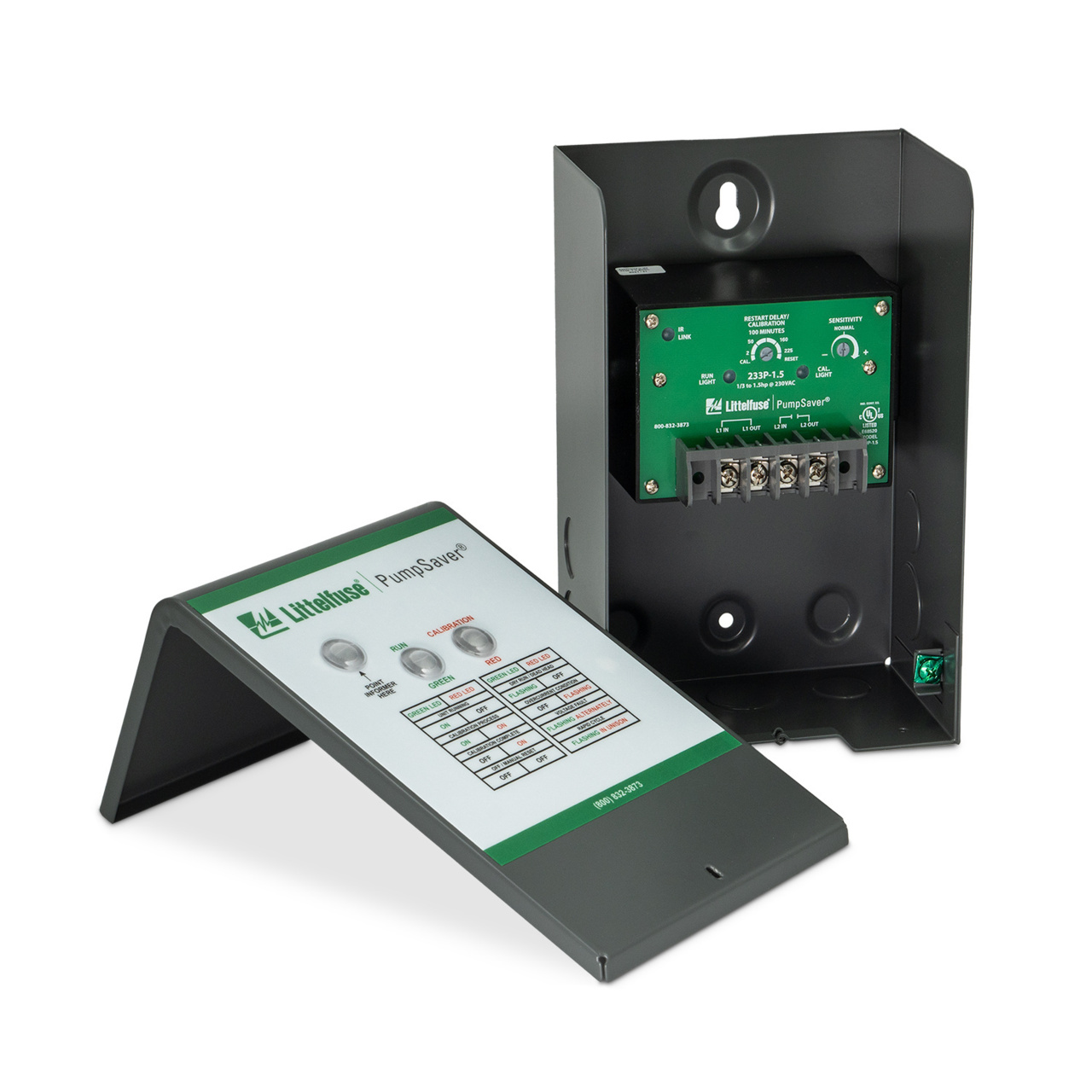

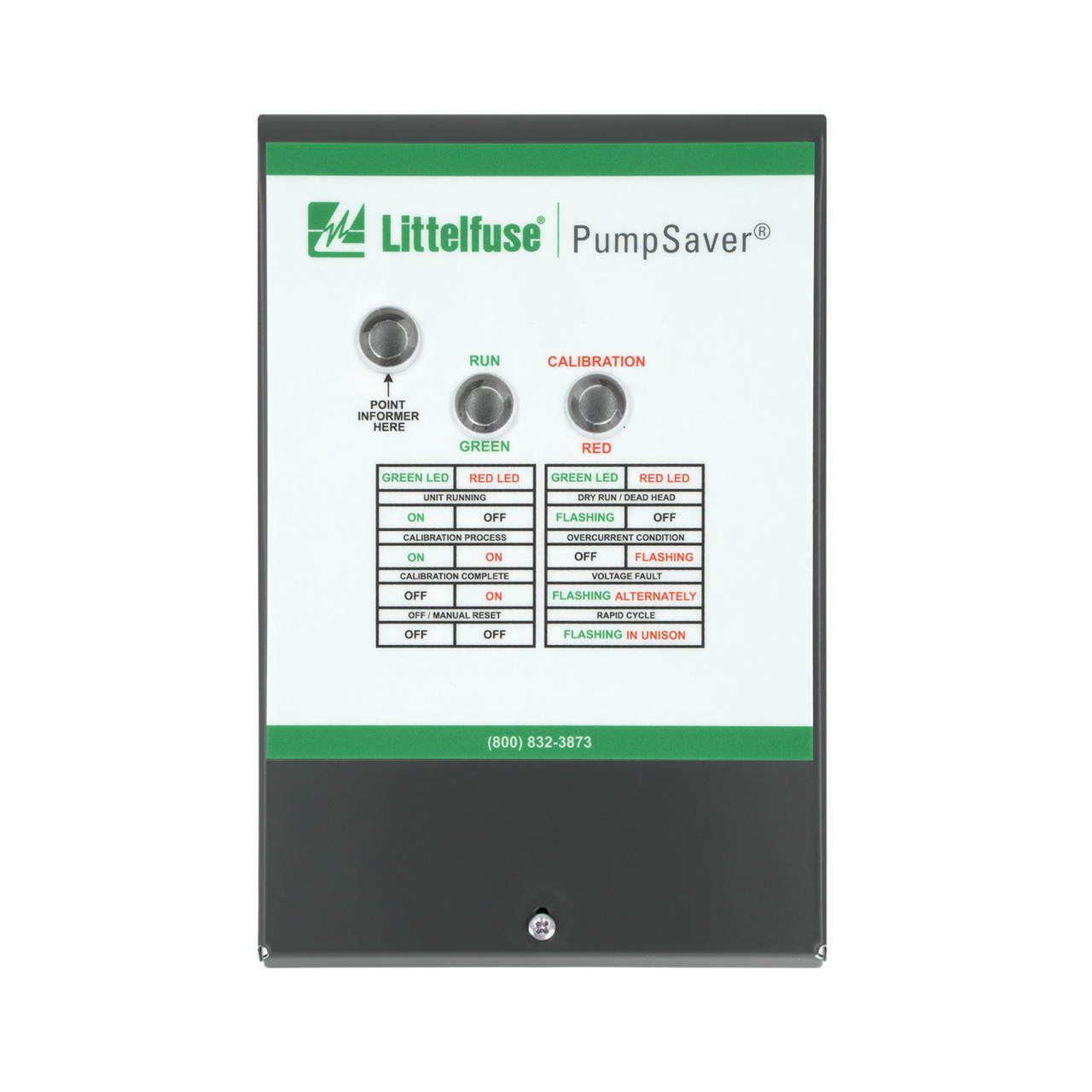

The 233P1.5-ENCL is an enclosed single-phase pump monitor with an input voltage value of 230 V ac, an input load range of ⅓–1.5 hp, and an output load rating of 1.5 hp @ 240 V ac (10 A maximum).
