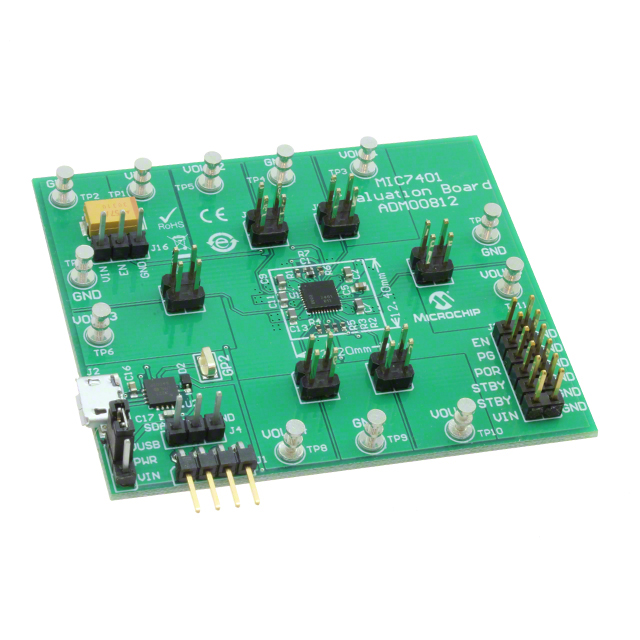

ADM00812 Series
Manufacturer: Microchip Technology
Beta
⌘K
EVALUATION BOARD
| Part | Output Type | Total Output Count | Non-Isolated Output Count | Supplied Contents | Board Type | Contents | Voltage - Input (Minimum) | Voltage - Input (Maximum) | Main Purpose | Regulator Topology | Voltage - Output (5) | Voltage - Output (4) | Voltage - Output (3) | Voltage - Output (6) | Voltage - Output (2) | Voltage - Output (1) | Utilized IC / Part | Current - Output | Current - Output (Min) | Current - Output (Max) | Frequency - Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Microchip Technology | Non-Isolated | 6 | 6 | Board(s) | Fully Populated | Board | 2.4 V | 5.5 V | DC/DC Step Up or Down | Buck-Boost | 1.8 V | 1.8 V | 1.25 V | 12 V | 1.1 V | 1.05 V | MIC7401 | 1A 200mA 3A 500mA 500mA or 200mA 800mA | 200 mA | 3 A | 2 MHz |
