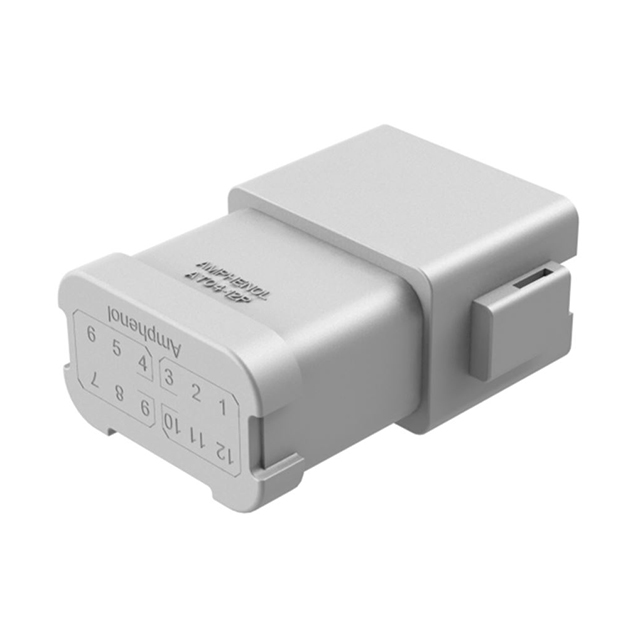

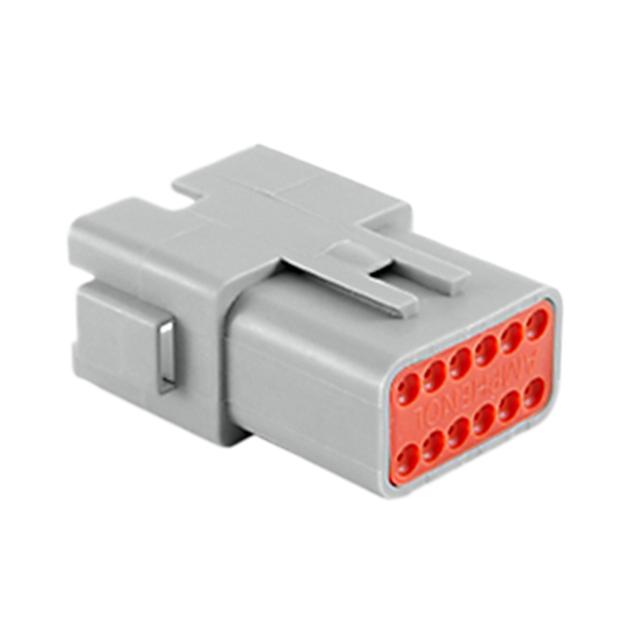

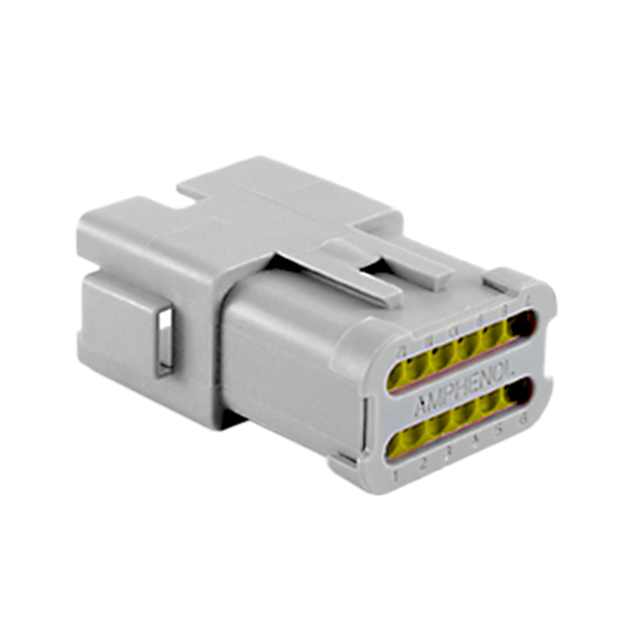

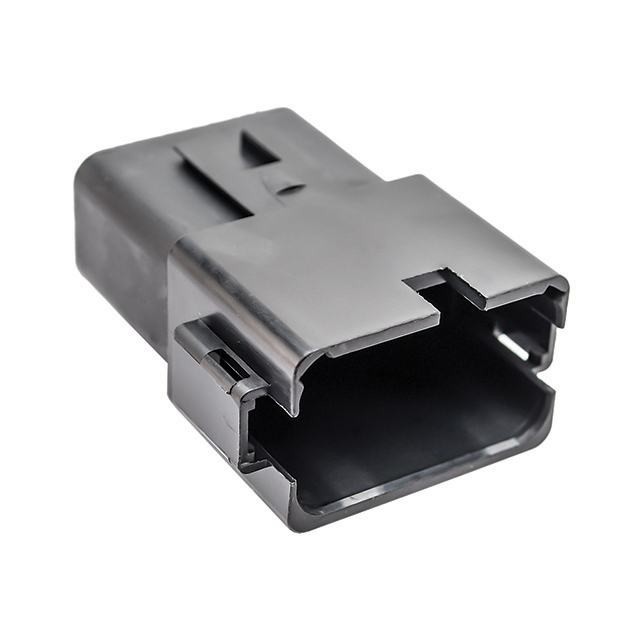

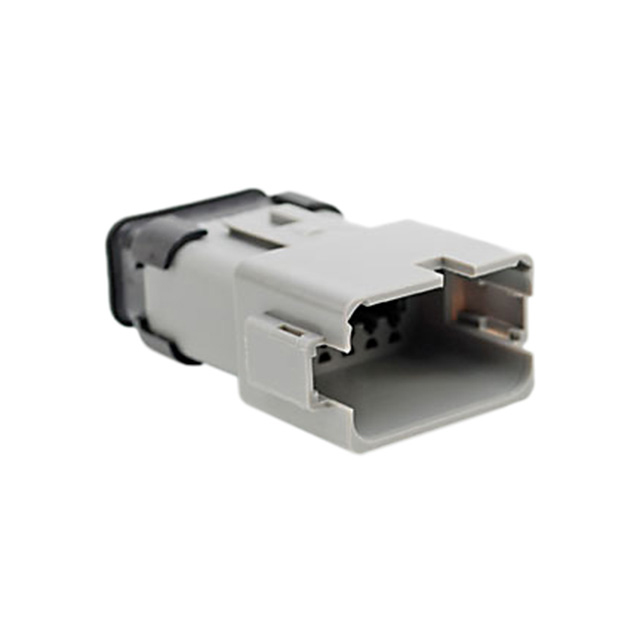

AT04-12PA Series

Catalog

CONN RCPT 12POS CRIMP GOLD

Part	Contact Finish	Number of Positions	Contact Type	Mounting Type	Fastening Type	Cable Termination	Wire Type	Color	Features	Number of Rows	Connector Type	Insulation Height	Number of Positions Loaded	Shrouding	Termination	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material	Current Rating	Contact Finish - Mating	Contact Shape	Style	Insulation Material	Ingress Protection	Insulation Color	Applications	Note	Contact Termination
McGill Microwave Systems AT04-12PA-P016	Gold	12	Male Pin	Free Hanging (In-Line)	Latch Holder	Crimp	Discrete	Gray	Cap (Cover) IP67 Sealed	2	Receptacle
McGill Microwave Systems AT04-12PA-BM01		12	Male Pin	Through Hole	Latch Holder				Board Lock	2	Receptacle	0.835 in	All	Shrouded - 4 Wall	Solder	125 °C	-55 °C	Copper Alloy	13 A	Gold	Circular	Board Cable/Wire	Thermoplastic	IP67	Gray	Automotive General Purpose Industrial
McGill Microwave Systems AT04-12PA-BLK		12	Male Pin	Free Hanging (In-Line)	Latch Holder			Black		2	Receptacle					125 °C	-55 °C						Thermoplastic				Contacts Not Included	Crimp
McGill Microwave Systems AT04-12PA-PM01		12	Male Pin	Panel Mount	Latch Holder			Gray	Sealed	2	Receptacle					125 °C	-55 °C						Thermoplastic				Contacts Not Included	Crimp
McGill Microwave Systems AT04-12PA		12	Male Pin	Free Hanging (In-Line)	Latch Holder			Gray		2	Receptacle					125 °C	-55 °C						Thermoplastic				Contacts Not Included	Crimp
McGill Microwave Systems AT04-12PA-MM01		12	Male Pin	Free Hanging (In-Line)	Latch Holder			Gray	Cap (Cover) Sealed	2	Receptacle					125 °C	-55 °C						Thermoplastic				Contacts Not Included	Crimp
McGill Microwave Systems AT04-12PA-RD01		12	Male Pin	Free Hanging (In-Line)	Latch Holder			Gray	Sealed	2	Receptacle					125 °C	-55 °C						Thermoplastic				Contacts Not Included	Crimp
McGill Microwave Systems AT04-12PA-SR2GY		12	Male Pin	Free Hanging (In-Line)	Latch Holder				Cap (Cover) Sealed Strain Relief	2	Receptacle					125 °C	-55 °C						Thermoplastic				Contacts Not Included	Crimp
McGill Microwave Systems AT04-12PA-BM03		12	Male Pin	Through Hole	Latch Holder				Board Lock	2	Receptacle	0.835 in	All	Shrouded - 4 Wall	Solder	125 °C	-55 °C	Copper Alloy	13 A	Nickel	Circular	Board Cable/Wire	Thermoplastic	IP67	Gray	Automotive General Purpose Industrial

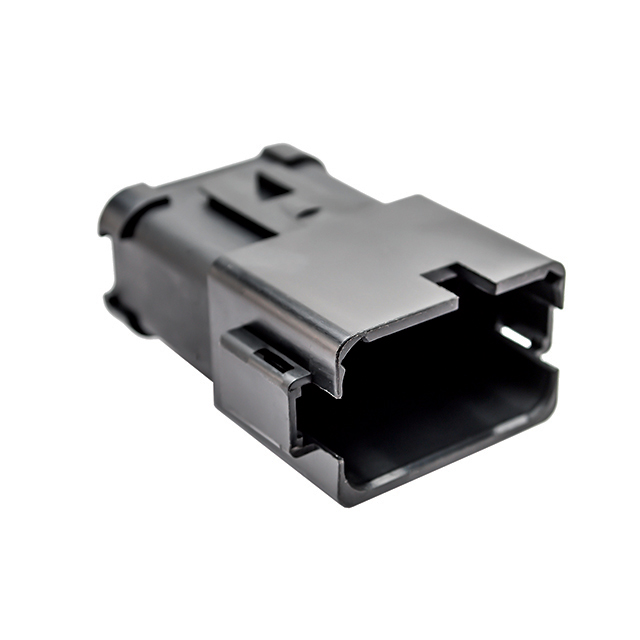

McGill Microwave Systems AT04-12PA-MMBLK		12	Male Pin	Free Hanging (In-Line)	Latch Holder			Black	Cap (Cover) Sealed	2	Receptacle					125 °C	-55 °C						Thermoplastic				Contacts Not Included	Crimp
