CS23 Series

Catalog

POWER THYRISTOR DISCRETES-SCR TO-208AA/ BOX

Part	Current - Off State (Max)	Package Name	Voltage - On State (Vtm) (Max)	SCR Type	Voltage - Gate Trigger (Vgt) (Max)	Current - On State (Max)	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Current - Gate Trigger (Igt) (Max)	Current - On State (It (RMS)) (Max)	Current - Hold (Ih) (Max)	Mounting Type	Current - Non Rep. Surge Type	Current - Non Rep. Surge Frequencies	Current - Non Rep. Surge (Itsm)	Voltage - Off State

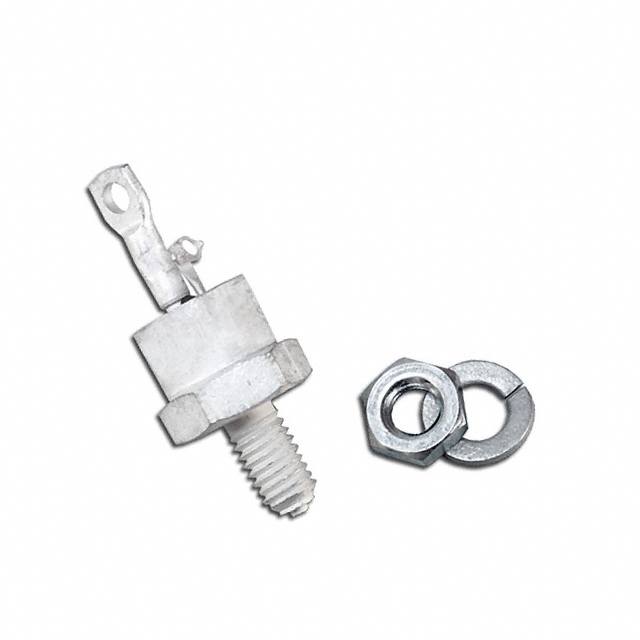

LITTELFUSE CS23-16IO2	3 mA	TO-208AA (TO-48)	1.8 V	Standard Recovery	2.5 V	32 A	Stud TO-208AA TO-48-3	125 °C	-40 °C	50 mA	50 A	100 mA	Chassis Stud Mount	Itsm	50Hz 60Hz	450 A 480 A	1.6 kV
LITTELFUSE CS23-12IO2	3 mA	TO-208AA (TO-48)	1.8 V	Standard Recovery	2.5 V	32 A	Stud TO-208AA TO-48-3	125 °C	-40 °C	50 mA	50 A	100 mA	Chassis Stud Mount	Itsm	50Hz 60Hz	450 A 480 A	1200 kV
LITTELFUSE CS23-08IO2	3 mA	TO-208AA (TO-48)	1.8 V	Standard Recovery	2.5 V	32 A	Stud TO-208AA TO-48-3	125 °C	-40 °C	50 mA	50 A	100 mA	Chassis Stud Mount	Itsm	50Hz 60Hz	450 A 480 A	800 V
