AT04-12PC Series

Catalog

CONN RCPT HSG 12POS

Part	Note	Contact Termination	Number of Positions	Number of Rows	Contact Type	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Fastening Type	Color	Features	Insulation Material	Connector Type	Current Rating	Contact Finish - Mating	Ingress Protection	Shrouding	Insulation Height	Number of Positions Loaded	Insulation Color	Contact Shape	Style	Contact Material	Termination	Applications

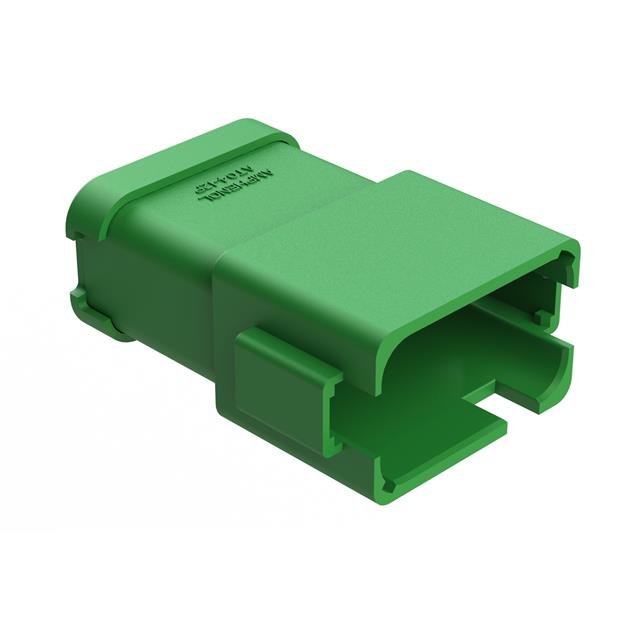

McGill Microwave Systems AT04-12PC-EC01	Contacts Not Included	Crimp	12	2	Male Pin	125 °C	-55 °C	Free Hanging (In-Line)	Latch Holder	Green	Cap (Cover)	Thermoplastic	Receptacle
McGill Microwave Systems AT04-12PC-SR2GN	Contacts Not Included	Crimp	12	2	Male Pin	125 °C	-55 °C	Free Hanging (In-Line)	Latch Holder	Green	Cap (Cover) Sealed Strain Relief	Thermoplastic	Receptacle

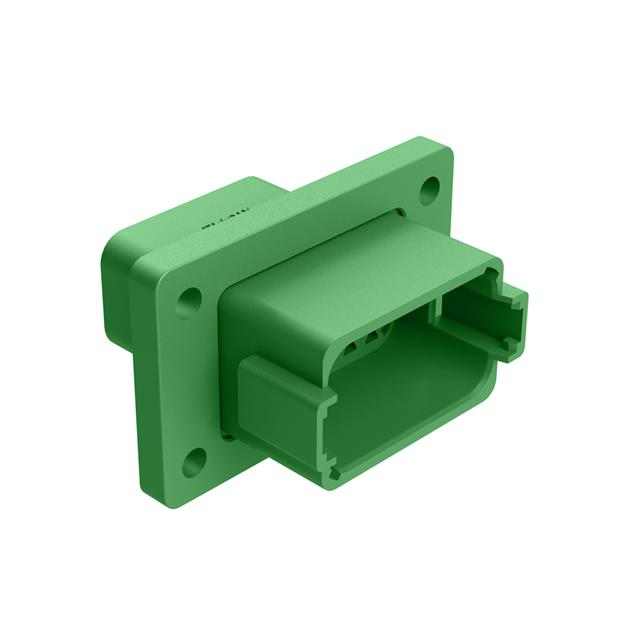

McGill Microwave Systems AT04-12PC-CL03	Contacts Not Included	Crimp	12	2	Male Pin	125 °C	-55 °C	Panel Mount	Latch Holder	Green	Mounting Flange Sealed	Thermoplastic	Receptacle

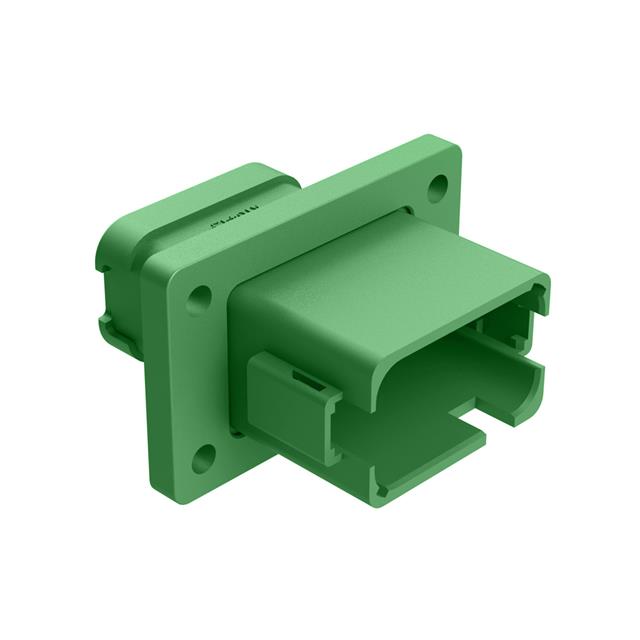

McGill Microwave Systems AT04-12PC-BL05	Contacts Not Included	Crimp	12	2	Male Pin	125 °C	-55 °C	Panel Mount	Latch Holder	Green	Cap (Cover) Mounting Flange Sealed	Thermoplastic	Receptacle
McGill Microwave Systems AT04-12PC-BM01			12	2	Male Pin	125 °C	-55 °C	Through Hole	Latch Holder		Board Lock	Thermoplastic	Receptacle	13 A	Gold	IP67	Shrouded - 4 Wall	0.835 in	All	Green	Circular	Board Cable/Wire	Copper Alloy	Solder	Automotive General Purpose Industrial

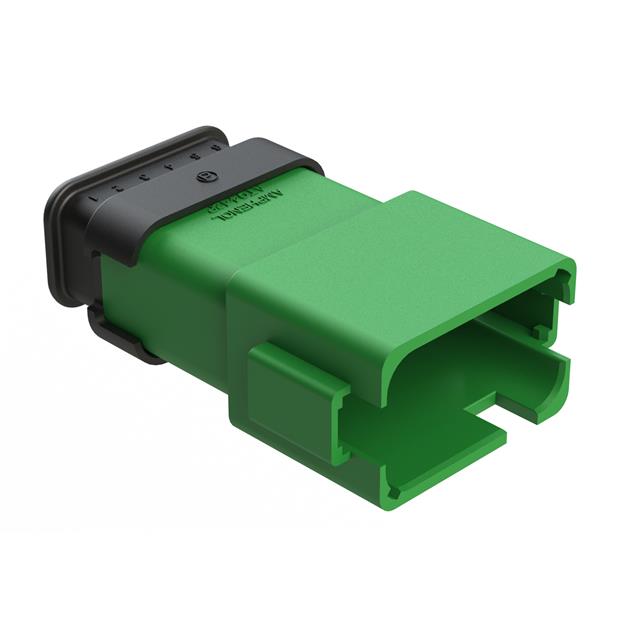

McGill Microwave Systems AT04-12PC-SRGN	Contacts Not Included	Crimp	12	2	Male Pin	125 °C	-55 °C	Free Hanging (In-Line)	Latch Holder	Green	Cap (Cover) Sealed Strain Relief	Thermoplastic	Receptacle
McGill Microwave Systems AT04-12PC-L012	Contacts Not Included	Crimp	12	2	Male Pin	125 °C	-55 °C	Panel Mount	Latch Holder	Green	Mounting Flange Sealed	Thermoplastic	Receptacle
McGill Microwave Systems AT04-12PC-RD01	Contacts Not Included	Crimp	12	2	Male Pin	125 °C	-55 °C	Free Hanging (In-Line)	Latch Holder	Green	Sealed	Thermoplastic	Receptacle
McGill Microwave Systems AT04-12PC	Contacts Not Included	Crimp	12	2	Male Pin	125 °C	-55 °C	Free Hanging (In-Line)	Latch Holder	Black		Thermoplastic	Receptacle
