FLKD-19FGMS Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

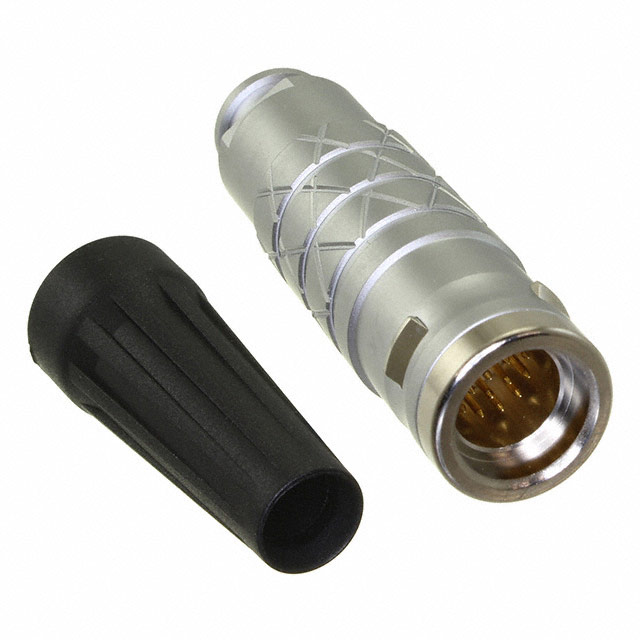

CONN PLUG MALE 19P GOLD SLDR CUP
| Part | Color | Cable Opening (Min) | Cable Opening (Max) | Insert Material | Termination | Fastening Type | Connector Type | Plating | Backshell Material | Contact Material | Shielding | Shell Material | Shell Size - Insert | Ingress Protection IP Rating | Ingress Protection Description | Features | Shell Finish | Voltage Rating | Operating Temperature (Max) | Operating Temperature (Min) | Orientation | Current Rating | Applications | Primary Material | Number of Positions | Contact Finish - Mating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Silver | 0.256 in | 0.264 in | Polyphenylene Sulfide PPS | Solder Cup | Push-Pull | Male Pins Plug | Chrome | Copper Alloy | Copper Alloy | Shielded | Copper Alloy | D-19 | IP68 | Dust Tight Waterproof | Backshell Cable Clamp | Chrome | 250 V | 125 °C | -40 °C | G | 5 A | Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement | Metal | 19 | Gold | Free Hanging (In-Line) |
