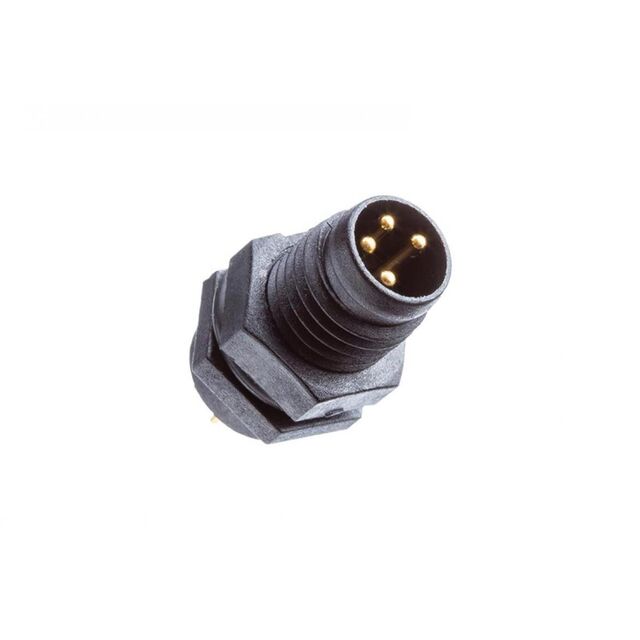

8P-03PMMP Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
M8 CONN
| Part | Ingress Protection Description | Ingress Protection IP Rating | Material Flammability Rating | Shell Material | Primary Material | Operating Temperature (Min) | Operating Temperature (Max) | Termination | Color | Contact Finish - Mating | Voltage Rating | Number of Positions | Mounting Type | Insert Material | Orientation | Shielding | Fastening Type | Current Rating | Connector Type | Mounting Feature | Contact Material | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Dust Tight Waterproof | IP67 | UL94 V-0 | Glass Filled Nylon Polyamide (PA) | Plastic | -40 °C | 105 °C | Solder | Black | Gold | 60 V | 3 | Panel Mount Through Hole | Glass Filled Nylon PA Polyamide | Keyed | Unshielded | Threaded | 3 A | Male Pins Receptacle | Bulkhead Front Side Nut | Copper Alloy | M8-3 |
