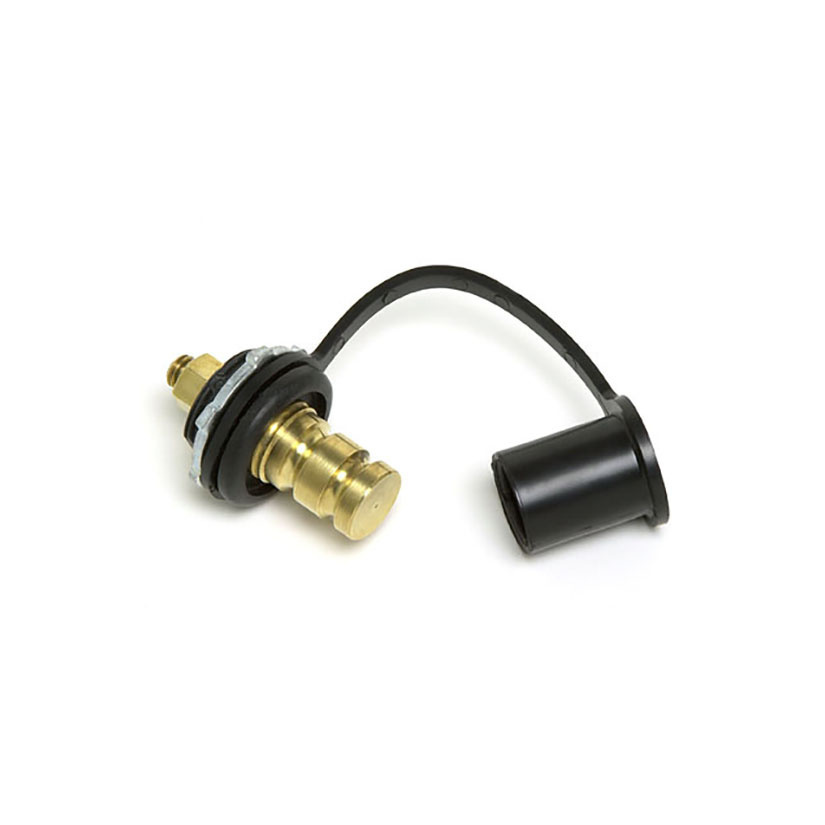

CAP NEGATIVE BLACK
Description
AI
For PNs 46210-02 and 46210-03: Stud capable of handling 285A (continuous) at 120mm² cable, with temperature rise 25°C above ambient For PNs 46211-01 and 46211-R: Stud capable of handling 250A (continuous) at 50mm² cable Stud capable of handling up to 600A for up to 20 seconds ON (10 minutes OFF) The plastic insulator is PBT Valox 420 SEO (V0-V2 UL94 flammability rating). Temperature rise (up to 400A at 24V) from 55.6⁰C to 67 ⁰C using 0 AWG cable.
