XHBAWT Series

Catalog

XLAMP XHB HIGH EFFICIENCY LIGHT EMITTING DIODE WHITE ROHS COMPLIANT: YES

Part	Thermal Resistance of Package	Lumens/Watt	Mounting Type	Package Name	CRI (Color Rendering Index)	Current - Test	Current - Max	Voltage - Forward (Vf) (Typ)	Color	Viewing Angle	Height - Seated (Max)	Size / Dimension Width	Size / Dimension Length	CCT (K)	Package / Case	Flux (Maximum)	Flux (Nominal)	Flux (Minimum)	CRI (Color Rendering Index) (Typ)
CreeLED, Inc. XHBAWT-00-0000-00000HW50	45 °C/W	124 lm/W	Surface Mount	1212 3030	80	65 mA	175 mA	3.1 V	Cool White	130 °	0.072 in	0.118 in	0.118 in	6000 K	1212 (3030 Metric)	27 lm	25 lm	24 lm

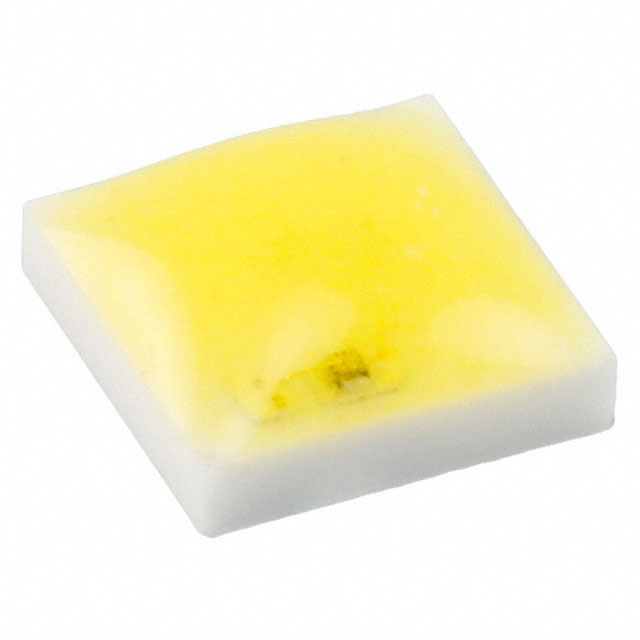

CreeLED, Inc. XHBAWT-00-0000-00000LXF7	45 °C/W	144 lm/W	Surface Mount	1212 3030		65 mA	175 mA	3.1 V	Warm White	130 °	0.072 in	0.118 in	0.118 in	3200 K	1212 (3030 Metric)	31 lm	29 lm	27 lm	80
CreeLED, Inc. XHBAWT-00-0000-00000BWE5	45 °C/W	124 lm/W	Surface Mount	1212 3030	70	65 mA	175 mA	3.1 V	Neutral White	130 °	0.072 in	0.118 in	0.118 in	4000 K	1212 (3030 Metric)	27 lm	25 lm	24 lm
CreeLED, Inc. XHBAWT-00-0000-00000BWF5	45 °C/W	124 lm/W	Surface Mount	1212 3030	70	65 mA	175 mA	3.1 V	Neutral White	130 °	0.072 in	0.118 in	0.118 in	4300 K	1212 (3030 Metric)	27 lm	25 lm	24 lm
CreeLED, Inc. XHBAWT-00-0000-00000BXF5		144 lm/W	Surface Mount	1212 3030	70	65 mA	175 mA	3.1 V	Neutral White	130 °	0.072 in	0.118 in	0.118 in	4300 K	1212 (3030 Metric)	31 lm	29 lm	27 lm
CreeLED, Inc. XHBAWT-00-0000-00000UVF8	45 °C/W	104 lm/W	Surface Mount	1212 3030	90	65 mA	175 mA	3.1 V	Warm White	130 °	0.072 in	0.118 in	0.118 in	2850 K	1212 (3030 Metric)	24 lm	21 lm	18 lm
CreeLED, Inc. XHBAWT-00-0000-00000UVE8	45 °C/W	104 lm/W	Surface Mount	1212 3030	90	65 mA	175 mA	3.1 V	Warm White	130 °	0.072 in	0.118 in	0.118 in	2700 K	1212 (3030 Metric)	24 lm	21 lm	18 lm
CreeLED, Inc. XHBAWT-00-0000-00000HWF7	45 °C/W	124 lm/W	Surface Mount	1212 3030	80	65 mA	175 mA	3.1 V	Warm White	130 °	0.072 in	0.118 in	0.118 in	3200 K	1212 (3030 Metric)	27 lm	25 lm	24 lm
CreeLED, Inc. XHBAWT-00-0000-00000HXE4	45 °C/W	144 lm/W	Surface Mount	1212 3030	80	65 mA	175 mA	3.1 V	Neutral White	130 °	0.072 in	0.118 in	0.118 in	4500 K	1212 (3030 Metric)	31 lm	29 lm	27 lm
CreeLED, Inc. XHBAWT-00-0000-00000LXF6	45 °C/W	144 lm/W	Surface Mount	1212 3030		65 mA	175 mA	3.1 V	Warm White	130 °	0.072 in	0.118 in	0.118 in	3700 K	1212 (3030 Metric)	31 lm	29 lm	27 lm	75
