DLHR-F50G Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

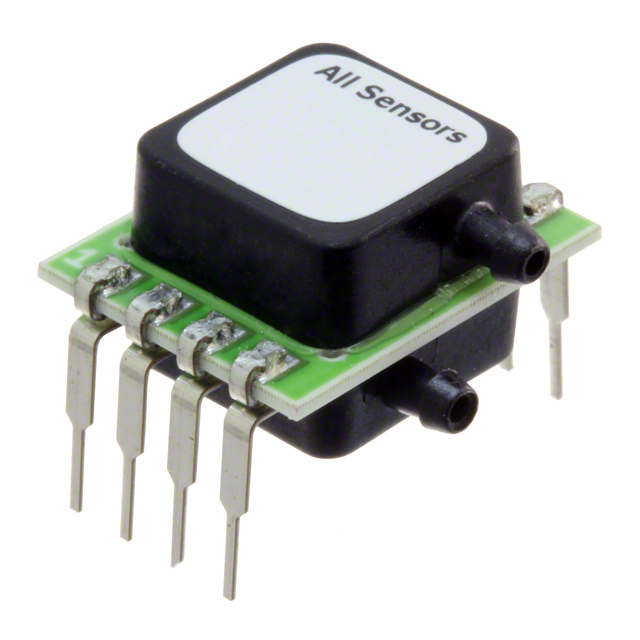

SENSOR 0.02PSID 0.09" 18BIT 8DIP
| Part | Applications | Package Length | Package Name | Package Features | Package Width | Output Bits | Output Type | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Features | Termination Style | Pressure Type | Accuracy | Port Style | Mounting Type | Operating Temperature (Max) | Operating Temperature (Min) | Port Diameter | Port Feature | Port Gender | Maximum Pressure | Operating Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Board Mount | 0.62 in | 8-DIP | Dual Ports Same Side | 15.75 mm | 18 b | I2C SPI | 3.6 V | 1.68 V | Temperature Compensated | PC Pin | Differential Vented Gauge | 0.25 % | Barbed | Through Hole | 85 °C | -25 °C | 0.09 in | Dual Tube | Male | 3.61 PSI | 0.02 PSI |
