0998080.UX-1M8 Series

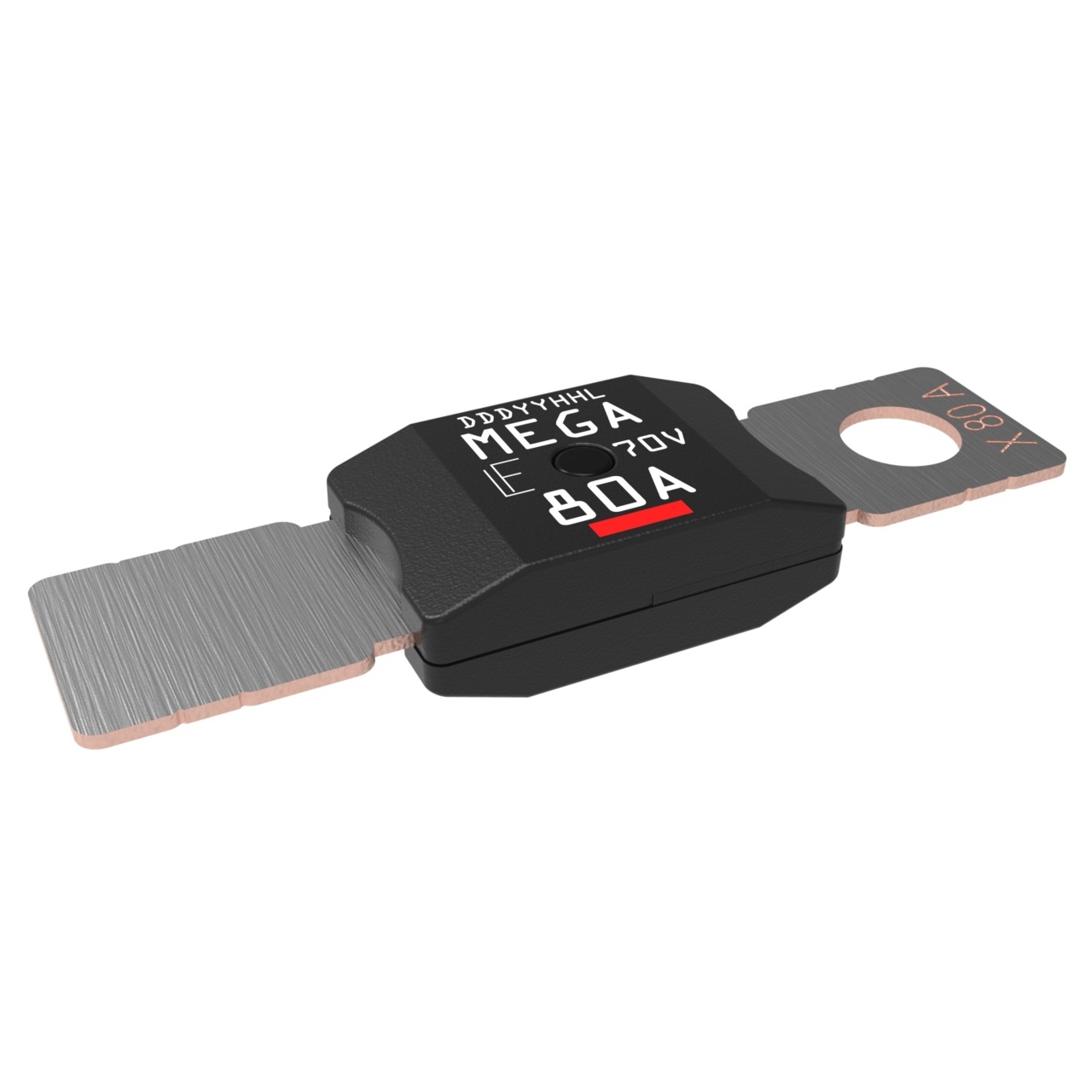

Fuse - Mega 70V (SF51) 1-M8 hole 80A

Catalog

Fuse - Mega 70V (SF51) 1-M8 hole 80A

Part	Voltage Rating - DC	Mounting Type	Color	Fuse Type	Breaking Capacity	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Package / Case	Response Time	Melting I²t	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)
LITTELFUSE 0998080.UX-1M8	70 V	Bolt Mount	Red	Automotive	2.5 kA	0.39 in	0.75 in	1.15 in	Auto Link	Slow Blow	34900	80 A	125 °C	-40 °C

Catalog

Fuse - Mega 70V (SF51) 1-M8 hole 80A

Description

This 80 A MEGA® 70V High Performance SF51 automotive fuse offers full wire protection. Ideal for protecting batteries, alternators, and heavy gauge wire harnesses, it employs diffusion pill technology to deliver predictable time-delayed performance.
