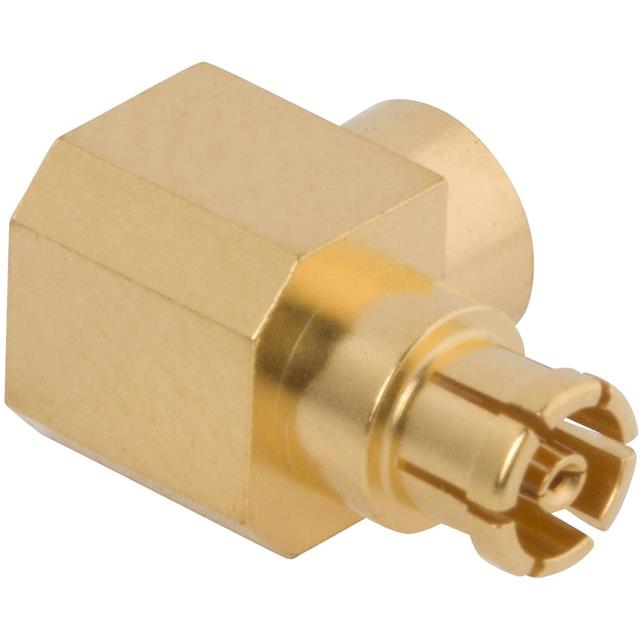

3222-40 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

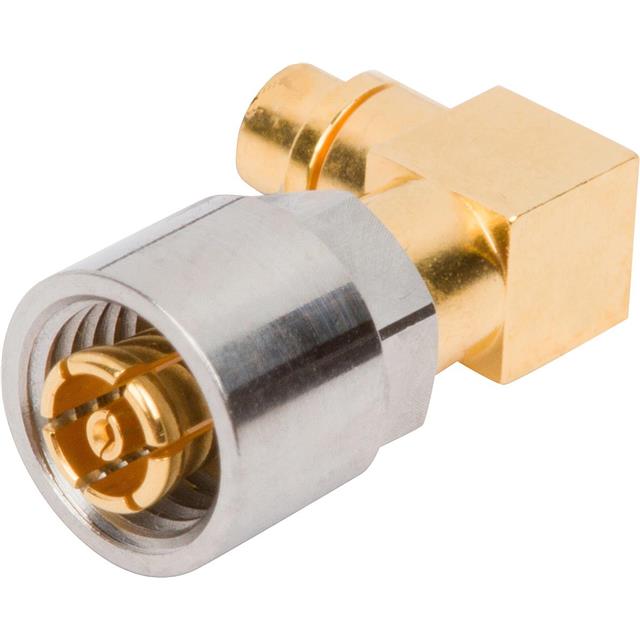

THREADED SMPM FEMALE CONNECTOR,
| Part | Dielectric Material | Body Material | Operating Temperature (Min) | Operating Temperature (Max) | Center Contact Plating | Mating Cycles | Body Finish | Number of Ports | Connector Type | Center Contact Material | Frequency - Max | Connector Style | Mounting Type | Cable Group Size | Cable Group | Impedance | Contact Termination | Shield Termination | Housing Color | Fastening Type | Includes Total Count | Includes | Cable Group Diameter (Default) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Polytetrafluoroethylene (PTFE) | Beryllium Copper | -65 °C | 165 °C | Gold | 100 cycles | Gold | 1 | Female Socket Jack | Beryllium Copper | 22 GHz | SMPM | Free Hanging (In-Line) Right Angle | 0.047 " | Semi Rigid | 50 Ohm | Solder | Solder | Gold | Snap-On | |||
 McGill Microwave Systems | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Gold | Gold | 1 | Female Socket Jack | Beryllium Copper | 18 GHz | SMPM | Free Hanging (In-Line) Right Angle | RG-405 | 50 Ohm | Solder | Solder | Gold | Snap-On | 2 pcs | Connector End Cap | 0.085 in | ||||
 McGill Microwave Systems | Polytetrafluoroethylene (PTFE) | Beryllium Copper | -55 °C | 125 °C | Gold | Gold | 1 | Female Socket Jack | Beryllium Copper | 40 Gbps | SMPM | Free Hanging (In-Line) Right Angle | 0.047 " | Flexible | 50 Ohm | Solder | Gold | Snap-On |
