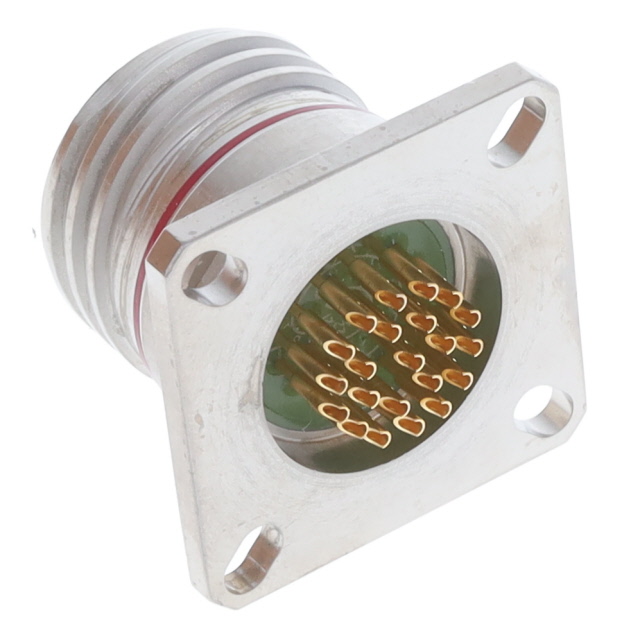

D38999/21NC Series
Manufacturer: Amphenol Aerospace Operations
Beta
⌘K
HERMETIC CIRCULAR MIL-SPEC CONNE
| Part | Contact Finish Thickness - Mating | Applications | Contact Material | Shell Finish | Grade | Shell Size - Insert (Maximum) | Shell Size - Insert (Minimum) | Orientation | Mounting Feature | Connector Type | Operating Temperature (Max) | Operating Temperature (Min) | Qualification | Color | Shielding | Fastening Type | Termination | Shell Size (MIL) | Voltage Rating (DC) | Voltage Rating (AC) | Shell Material | Mounting Type | Number of Positions | Contact Finish - Mating | Primary Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Aerospace Operations | 50 µin | Aerospace Aviation Marine Military | Copper Alloy | Nickel | Military | 35 | 13 | N (Normal) | Flange | Male Pins Receptacle | 200 °C | -65 °C | MIL-DTL-38999 Series III | Silver | Unshielded | Threaded | Solder Cup | C | 500 VDC | 400 VAC | Stainless Steel | Panel Mount | 22 | Gold | Metal | Hermetically Sealed |
