747238 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

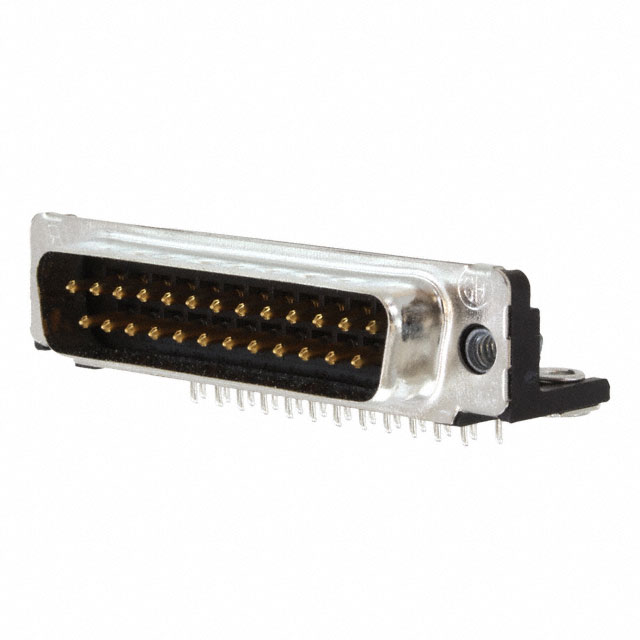

D SUB CONNECTOR, STANDARD, 25POS, PLUG
| Part | Termination | Features | Contact Finish | Material Flammability Rating | Mounting Type | Backset Spacing | Shell Size | Connector Layout | Finish | Shell Material | Flange Feature | Contact Type | Connector Style | Connector Type | Number of Rows | Number of Positions | Current Rating | Color | Operating Temperature (Min) | Operating Temperature (Max) | Voltage Rating | Contact Material | Contact Finish Thickness | Contact Finish Thickness (string set options) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Solder | Ground Strap Grounding Indents | Gold | UL94 V-0 | Right Angle Through Hole | 0.318 in | 3 | B DB | Tin Plated | Steel | Female Screwlock (4-40) Mating Side | Signal | D-Sub | Male Pins Plug | 2 | 25 | 6 A | Black | -55 °C | 105 °C | 125 V | Brass | |||
 TE Connectivity AMP Connectors | Solder | Ground Strap Grounding Indents | Gold | UL94 V-0 | Right Angle Through Hole | 0.318 in | 3 | B DB | Tin Plated | Steel | Housing Shell (4-40) | Signal | D-Sub | Male Pins Plug | 2 | 25 | 6 A | Black | -55 °C | 105 °C | 125 V | Brass | |||
 TE Connectivity AMP Connectors | Solder | Ground Strap Grounding Indents | Gold | UL94 V-0 | Right Angle Through Hole | 0.318 in | 3 | B DB | Tin Plated | Steel | Housing Shell (4-40) | Signal | D-Sub | Male Pins Plug | 2 | 25 | 6 A | Black | -55 °C | 105 °C | 125 V | Brass | 0 | Flash | Flash |
