43-0102 Series

Catalog

CIRC CBL 5POS PLUG TO WIRE 1.64'

Part	Assembly Configuration	1st Connector Number of Positions Loaded	1st Connector Number of Positions	1st Connector Orientation	2nd Connector Type	1st Connector Mounting Type	1st Connector Shell Size - Insert	Ingress Protection Description	Ingress Protection IP Rating	Cable Type	1st Connector Type	Usage	Cable Material	Color	Shielding	Length	1st Connector Gender	Current Rating	Mounting Feature	Voltage Rating	Mounting Type	Fastening Type	Shell Material	Primary Material	Contact Material	Contact Finish - Mating	Termination	Insert Material	Shell Size - Insert	Operating Temperature (Max)	Operating Temperature (Min)	Shell Finish	Connector Type	Number of Positions	Material Flammability Rating	Orientation
McGill Microwave Systems 43-01023	Standard	All	5 positions	A	Wire Leads	Panel Mount	M12	Dust Tight Waterproof	IP67	Individual	Plug	Industrial Environments	Copolymer	Multiple	Unshielded	1.64 ft	Female Sockets
McGill Microwave Systems 43-01021	Standard	All	5 positions	A	Wire Leads	Panel Mount	M12	Dust Tight High Temp Water Jets Waterproof	IP69K	Individual	Receptacle	Industrial Environments	Polyvinyl Chloride (PVC)	Multiple	Unshielded	1.64 ft	Male Pins
McGill Microwave Systems 43-01026								Dust Tight Waterproof	IP67					Silver	Unshielded			4 A	Bulkhead Front Side Nut	250 V	Panel Mount Through Hole	Threaded	Copper Zinc	Metal	Copper Zinc	Gold	Solder	Glass Filled PBT Polybutylene Terephthalate	M12-4	85 °C	-30 °C	Nickel	Female Sockets Plug	4	UL94	A
McGill Microwave Systems 43-01022	Standard	All	4 positions	A	Wire Leads	Panel Mount	M12	Dust Tight Waterproof	IP67	Individual	Plug	Industrial Environments	Copolymer	Multiple	Unshielded	1.64 ft	Female Sockets

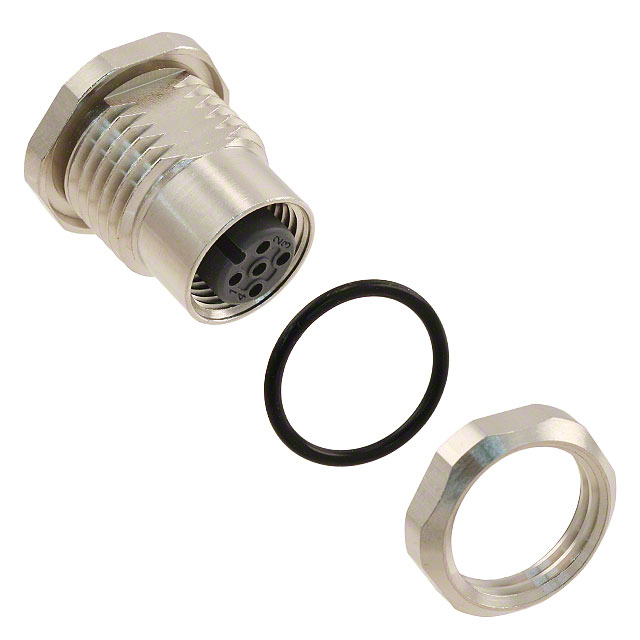

McGill Microwave Systems 43-01027								Dust Tight Waterproof	IP67					Silver	Unshielded			4 A	Bulkhead Front Side Nut	60 V	Panel Mount Through Hole	Threaded	Copper Zinc	Metal	Copper Zinc	Gold	Solder	Glass Filled PBT Polybutylene Terephthalate	M12-5	85 °C	-30 °C	Nickel	Female Sockets Plug	5	UL94	A
McGill Microwave Systems 43-01025	Standard	All	5 positions	A	Wire Leads	Panel Mount	M12	Dust Tight Waterproof	IP67	Individual	Receptacle	Industrial Environments	Copolymer	Multiple	Unshielded	1.64 ft	Male Pins
McGill Microwave Systems 43-01020	Standard	All	4 positions	A	Wire Leads	Panel Mount	M12	Dust Tight High Temp Water Jets Waterproof	IP69K	Individual	Receptacle	Industrial Environments	Polyvinyl Chloride (PVC)	Multiple	Unshielded	1.64 ft	Male Pins
