FA1-NZSJ Series

Catalog

CONN FAKRA JACK STR 50 OHM CRIMP

Part	Features	Mounting Type	Center Contact Material	Shield Termination	Fastening Type	Connector Style	Impedance	Number of Ports	Housing Color	Connector Type	Frequency - Max	Contact Termination	Cable Group	Includes	Includes Total Count	Body Material	Dielectric Material	Center Contact Plating	Mating Cycles	Insertion Loss	Body Finish	Operating Temperature (Max)	Operating Temperature (Min)
McGill Microwave Systems FA1-NZSJ-C01-6	Code Z	Free Hanging (In-Line)	Beryllium Copper	Crimp	Latch Lock	Fakra SMB	50 Ohm	1	Blue Water	Female Socket Jack	6000 MHz	Crimp	188 188A 316 LMR-100 M17/119-RG174 RG-174	Connector Contact Ferrule Housing Locking Clip	5 pcs	Brass	Polytetrafluoroethylene (PTFE)	Gold	100 cycles	0.3 dB	Nickel	100 °C	-40 °C

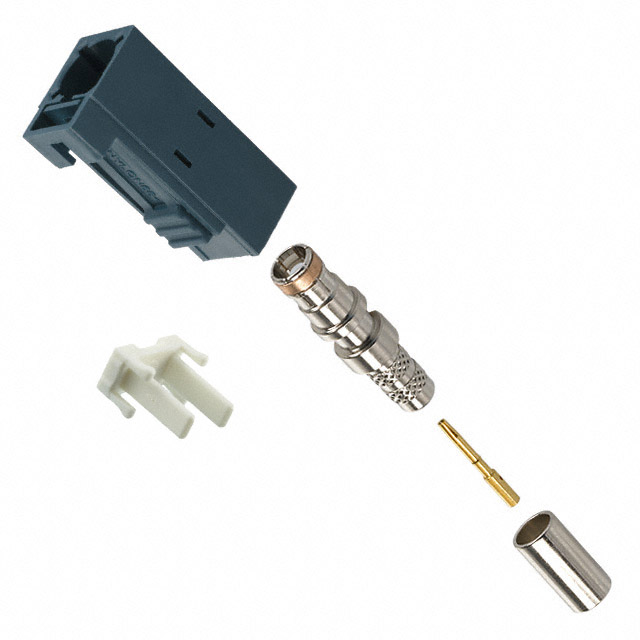

McGill Microwave Systems FA1-NZSJ-C04-0	Code Z	Free Hanging (In-Line)	Beryllium Copper	Crimp	Latch Lock	Fakra SMB	50 Ohm	1	Blue Water	Female Socket Jack	6000 MHz	Crimp	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Connector Contact Ferrule Housing Locking Clip	5 pcs	Brass	Polytetrafluoroethylene (PTFE)	Gold	100 cycles	0.3 dB	Nickel	100 °C	-40 °C
McGill Microwave Systems FA1-NZSJ-C04-6	Code Z	Free Hanging (In-Line)	Beryllium Copper	Crimp	Latch Lock	Fakra SMB	50 Ohm	1	Blue Water	Female Socket Jack	6000 MHz	Crimp	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Connector Contact Ferrule Housing Locking Clip	5 pcs	Brass	Polytetrafluoroethylene (PTFE)	Gold	100 cycles	0.3 dB	Nickel	100 °C	-40 °C
